Rubicon Express 5.5 Inch Extreme-Duty Long Arm Lift Kit with Rear Track Bar – No Shocks – RE7215

Rubicon Express

Shop Jeep Wrangler TJ Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Complete suspension replacement with long arms for the Jeep Wrangler TJ
  • Lift height range of 5 to 6.99 inches
  • Chromoly long arms with Super-Flex spherical ball joints
  • Tuned lift springs and front and rear stainless brake lines
  • Shocks not included

Description

Overview

The Rubicon Express 5.5-inch Extreme-Duty Long Arm Lift Kit, part number RE7215, is a complete suspension replacement for the 2003-2006 Jeep Wrangler TJ. It is rated for a lift height range of 5 to 6.99 inches and is sold without shock absorbers.

Longer control arms improve lifted suspension geometry, which gives better stability on and off road, less torque roll and more trail traction than standard short arm lift systems. The kit replaces the factory suspension, so the arms, springs and brake lines are supplied as one system.

The kit also uses PT-Meg Super-Ride bushings, which Rubicon Express designed for on and off-road performance. The arms are chromoly, with adjustable control arms and serviceable Super-Flex spherical ball joints.

Key features

  • Chromoly long arms for the TJ
  • PT-Meg Super-Ride bushings designed for on and off-road performance
  • Adjustable control arms with serviceable Super-Flex spherical ball joints
  • Tuned lift springs
  • Front and rear stainless steel brake lines
  • Three-piece belly pan for transfer case and transmission access

Shock selection for long arms

Shocks are not included with this kit, so they need to be chosen to match the arm geometry and the lift range. Long arms change the angle at which the shock travels, so the mounting points and length should be checked against the new suspension. Shocks that are too short can bind at full extension, while shocks that are too long can limit droop and articulation.

Long arm systems rely on alignment and driveline angles, so have the caster, toe and driveshaft angles checked after installation. Bushings in the control arms should be inspected at regular intervals, and polyurethane or rubber parts should be replaced when they split or show play.

  • Confirm shock length and mounting points before buying
  • Check caster and toe after installation
  • Inspect the driveline angles after the lift
  • Inspect control arm bushings at regular intervals

Specifications

Brand Rubicon Express
Part number RE7215
UPC 614901441826
Suspension type Long arm (Extreme-Duty)
Lift height range 5 to 6.99 inches
Rear lift method Coil springs
Control arm material Chromoly
Bushings PT-Meg Super-Ride
Ball joints Super-Flex spherical, serviceable
Brake lines Front and rear, stainless steel
Shock absorbers Not included
Fitment Direct fit

Vehicle fitment

The kit fits the 2003-2006 Jeep Wrangler TJ. The 1997-2002 TJ years are not covered, and the YJ and JK generations are different platforms that the kit does not fit.

Other Wrangler generations and other Jeep models are not on the list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Because the kit replaces the factory suspension and changes control arm geometry, have the alignment and driveline angles checked after installation. Shock absorbers are not included, so select shocks that match the lifted geometry. The three-piece belly pan can be removed in sections for access to the transfer case and transmission.

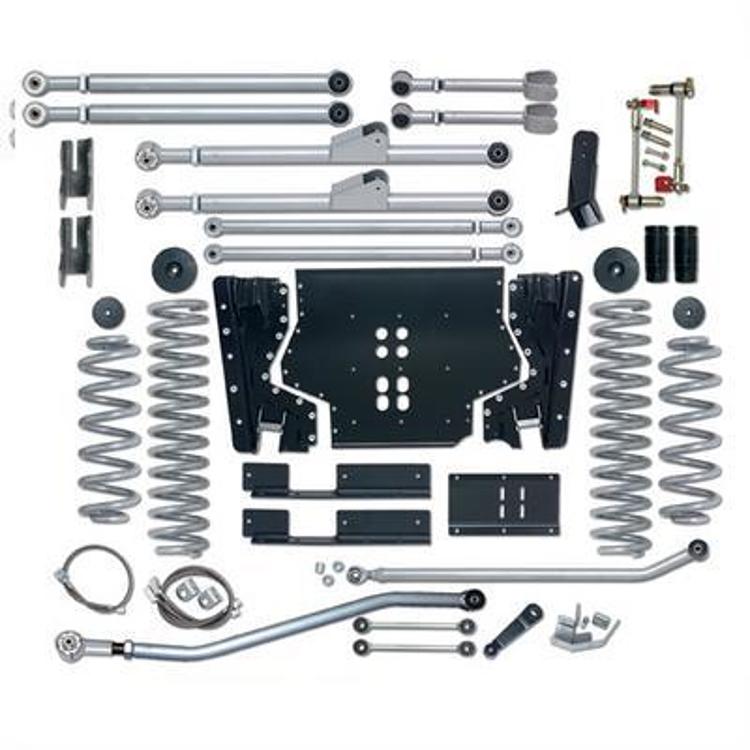

What’s included

The long arm system with tuned lift springs, front and rear stainless steel brake lines and the three-piece belly pan.

Not included: Shock absorbers.

SKU: R/ERE7215 Category:

Specification

Shipping weight 372.00 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (TJ)2003–200665th Anniversary Edition, Rubicon, SE, Sahara, Sport, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the RE7215 fit a 2003 to 2006 Jeep Wrangler TJ?

Yes. The kit fits the 2003-2006 Wrangler TJ, and it is a complete suspension replacement rather than an add-on. Confirm your vehicle's year, model and trim before ordering.

Are shock absorbers included with the RE7215 kit?

No. The kit is sold without shocks, so you need to select shocks separately that suit the 5 to 6.99-inch lift range.

What does the three-piece belly pan do?

The belly pan comes in three pieces, so sections can be removed for access to the transfer case and transmission. This makes servicing the drivetrain easier without removing the full pan.

What should I look for in shocks for a long arm lift?

Choose shocks with a length and mounting points that suit the lifted geometry and the 5 to 6.99-inch lift range. Shocks that are too short can bind at full extension, so confirm the travel before buying.
