Overview
The Rubicon Express RE7141P is a 2.5 inch progressive coil lift kit for the 2007–2012 Jeep Wrangler JK. It uses progressive coil springs and does not include shocks, so it works with your existing shocks as a spring and hardware kit.
Rubicon Express describes these systems as easy to install and says they deliver off-road performance and value without changing driveshafts, exhaust or brake lines. The stated goals are more ground clearance, extended wheel travel and room for 35 inch tall tires.
A progressive coil spring changes its spring rate as it compresses. It feels softer over small bumps and firmer near full compression, which helps reduce harsh bottoming. The lift height is 2.5 inch, within a range of 2.5 to 3.5 inches.
Key features
- 2.5 inch lift height with a listed range of 2.5 to 3.5 inches

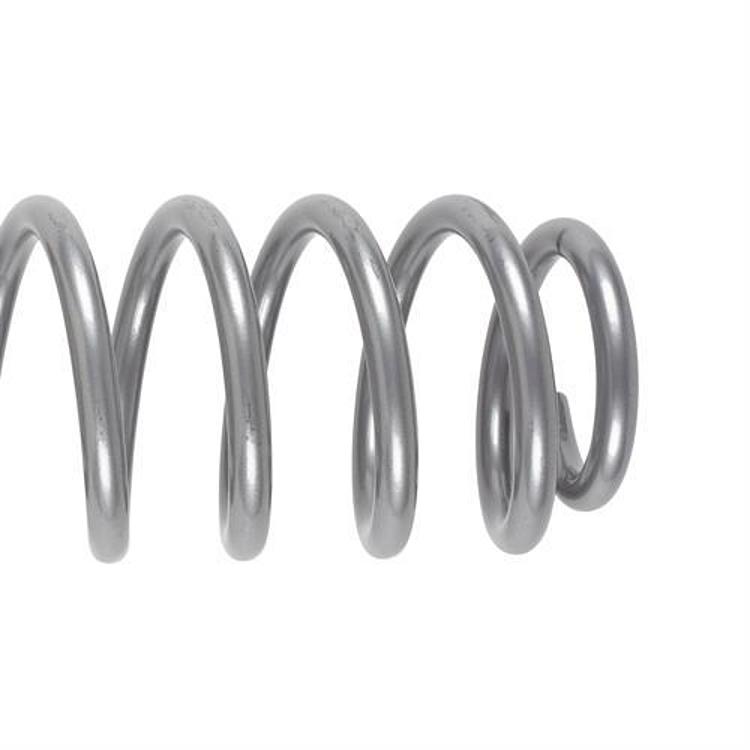

- Progressive coil springs for a smoother ride over small bumps

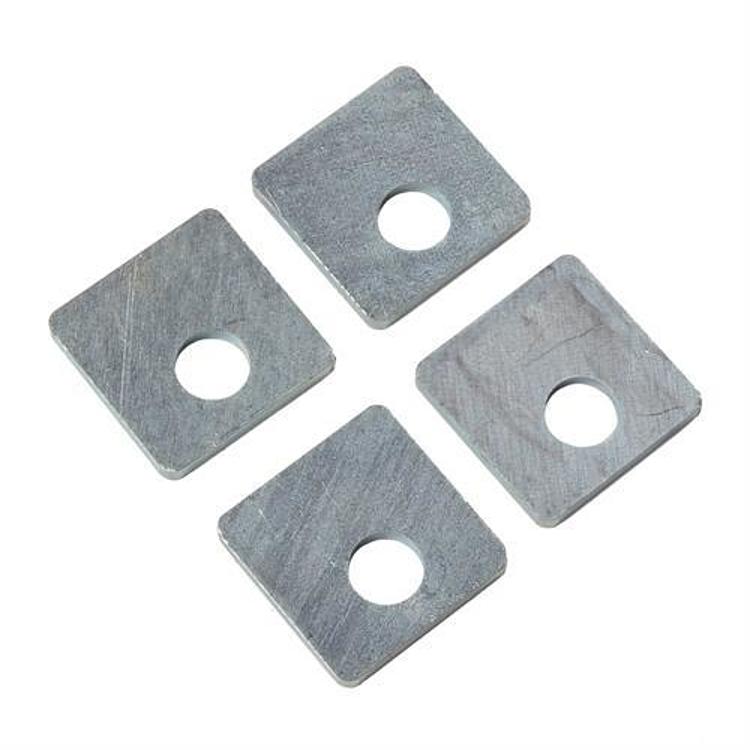

- Front alignment washers for caster adjustment

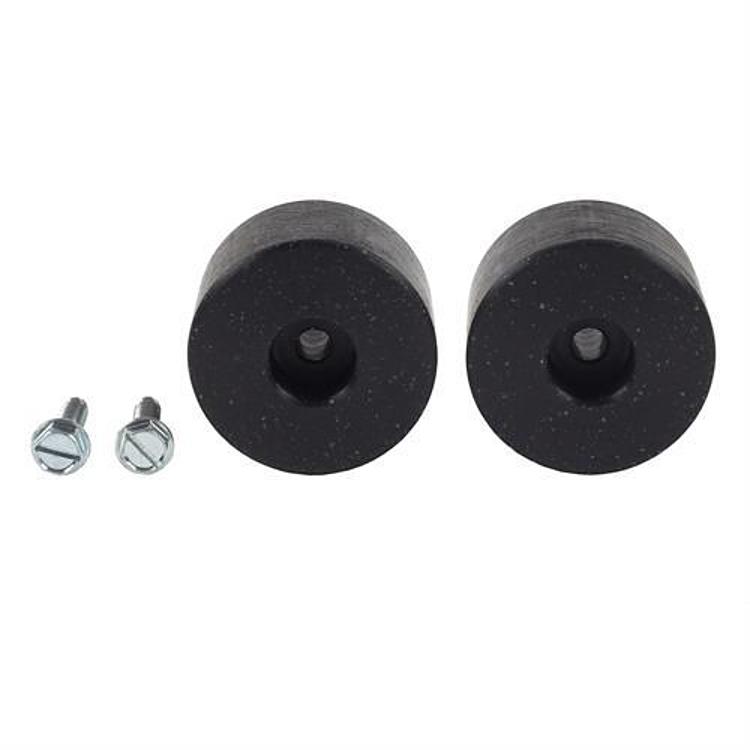

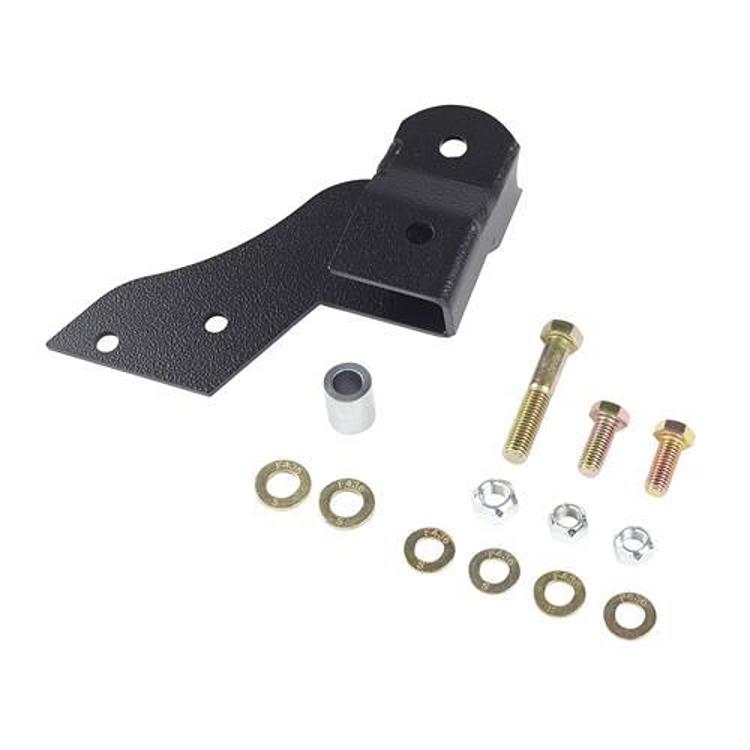

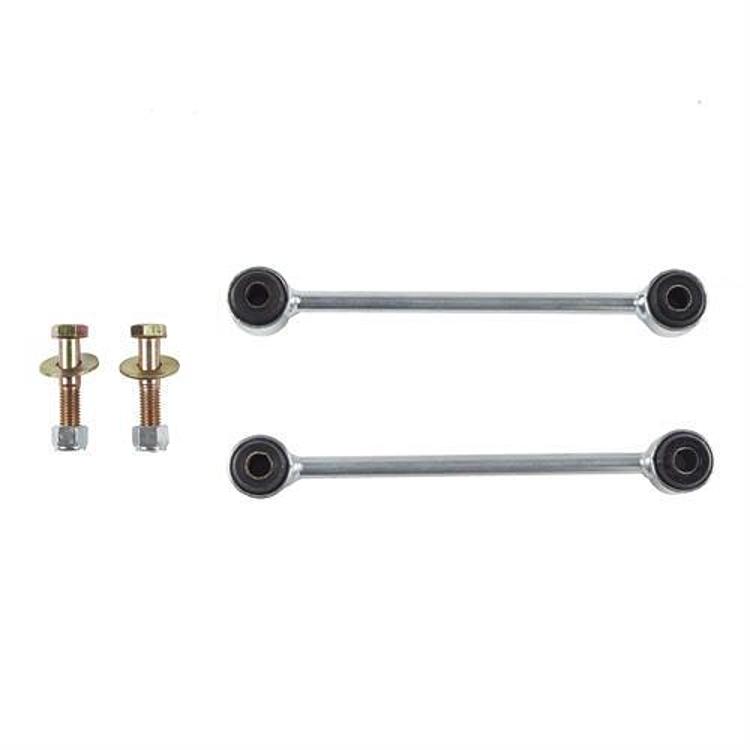

- Bump stops, a rear track bar bracket and extended sway bar end links
- Designed for later upgrades
- Carries the Rubicon Express Advantage Lifetime Warranty
Choosing springs for a progressive lift
Progressive springs are a different choice from linear coils, and the difference shows most when the suspension moves through its full range. On the trail, the softer initial rate can keep tires in contact over small ledges, while the firmer end of travel limits how hard the axles hit the bump stops. On the street, the feel is closer to the factory setup than a stiff linear spring of the same height.
Because the kit does not include shocks, shock choice matters for ride quality. Shocks sized for the old ride height may be too short or too long for the new one, so check them before the lift is installed. Inspect the bump stops and sway bar links once the springs have settled.
- Check spring seats for corrosion before installing new springs
- Set caster with the front alignment washers during the alignment
- Inspect bump stops for cracks after the first off-road trip
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | RE7141P |
| UPC | 614901240849 |
| Lift height | 2.5 inch, range 2.5 to 3.5 inches |
| Suspension type | Progressive coil |
| Kit type | Standard kit |
| Shocks included | No |
| Fitment | Direct fit |
Vehicle fitment
It fits 2007–2012 Jeep Wrangler JK models.
It does not fit 2013–2018 Wrangler JK models or other Wrangler generations. Check your vehicle’s year, model and trim before buying.
Installation notes
Set caster with the front alignment washers, then schedule an alignment after the new springs are installed. Changing driveshafts, exhaust or brake lines is not part of this installation, but any lift changes driveline angles, so check them.
What’s included

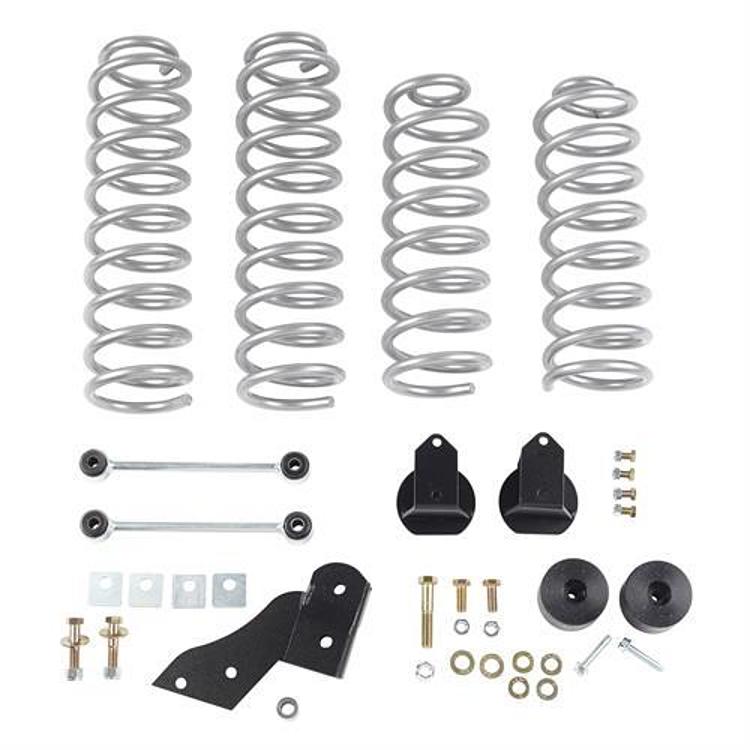

The kit includes progressive coil springs, front alignment washers, bump stops, a rear track bar bracket and extended sway bar end links.
Not included: shocks.
