Rubicon Express 3.5 Inch Extreme Duty 4-Link Long Arm Lift Kit with Fox Performance Shocks – JK4R43FP

Rubicon Express

Shop Jeep Wrangler JK Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 3.5 inch extreme duty 4-link front and rear radius long arm lift kit, JK4R43FP
  • Chromoly upper and lower control arms, adjustable
  • Super-Flex spherical ball joints and Super-Ride bushings

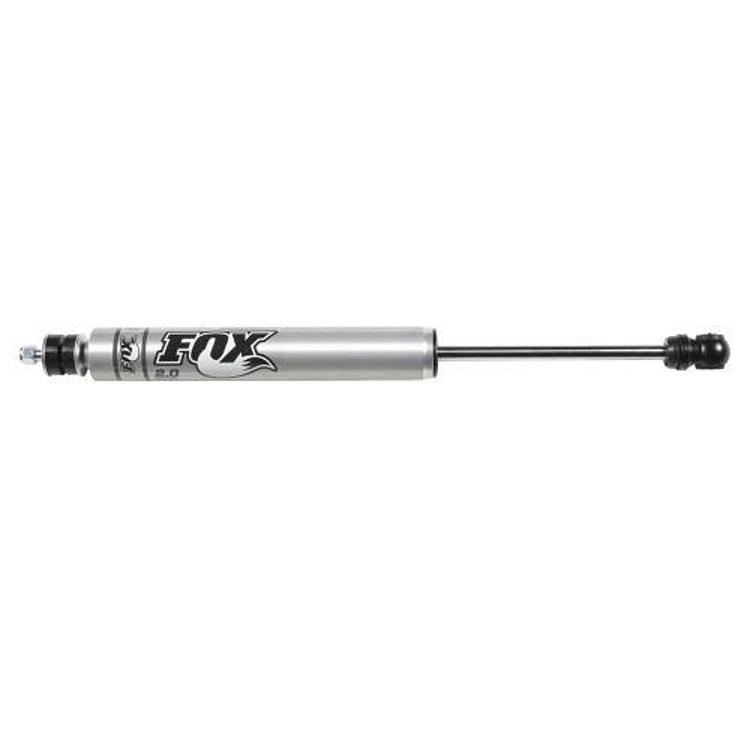

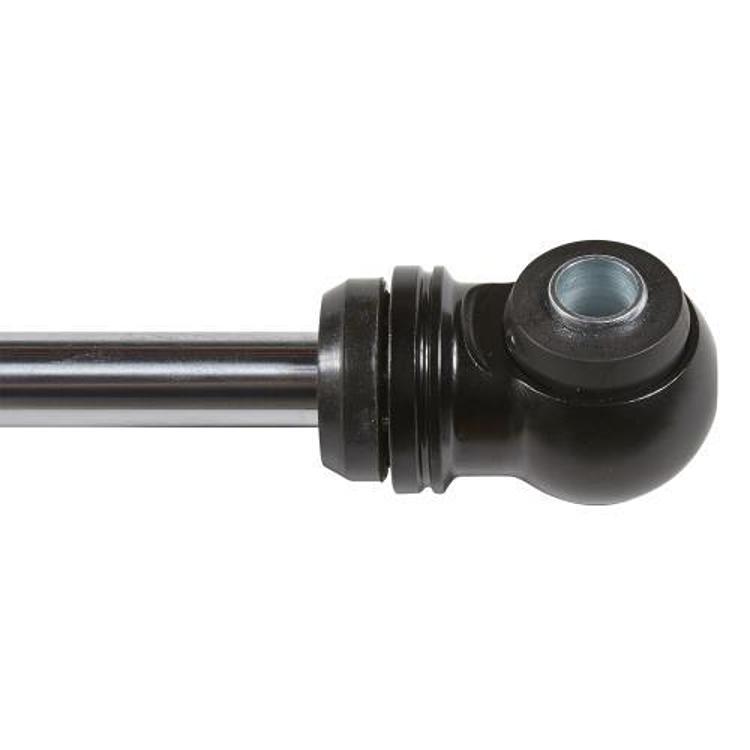

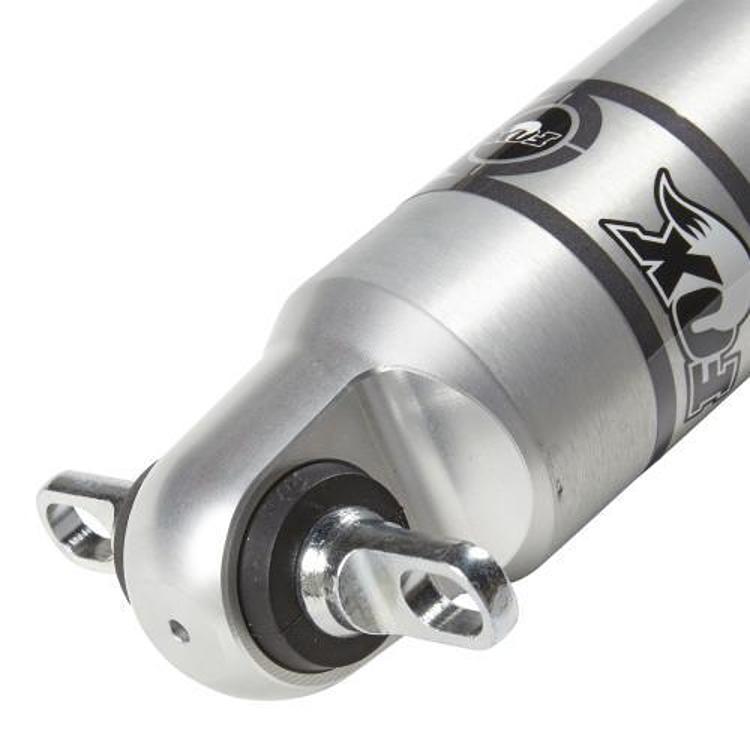

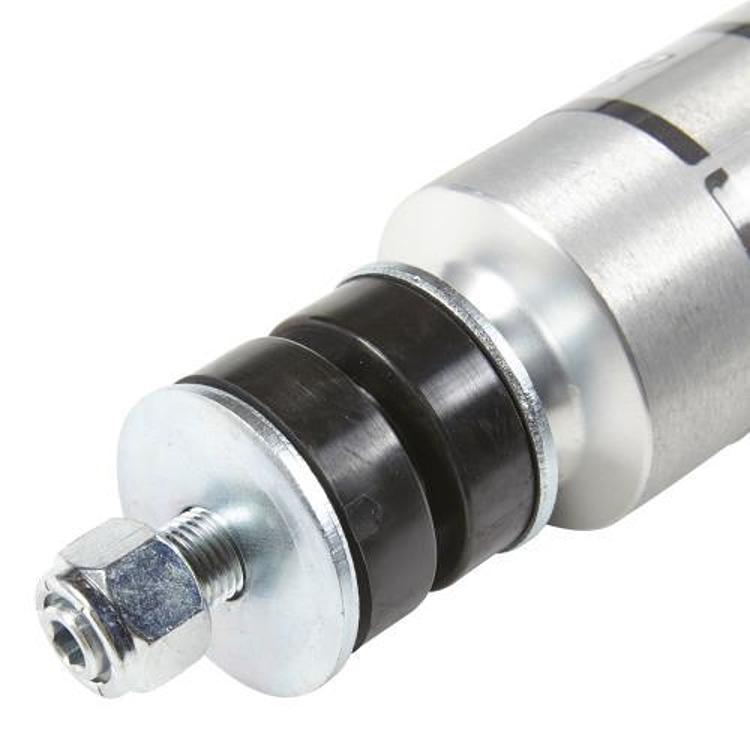

  • Front and rear Fox Performance shocks
  • Full width transmission crossmember, no welding

Description

Overview

The Rubicon Express JK4R43FP is a 3.5 inch extreme duty lift kit for the Jeep Wrangler JK, built with a 4-link front and radius rear long arm layout. It is offered with front and rear Fox Performance shocks.

Its control arms are chromoly and adjustable, and the kit uses Super-Flex spherical ball joints with PT-MEG Super-Ride bushings. A full width transmission crossmember is included, which Rubicon Express says allows installation without welding.

The kit belongs to a line of kit numbers that cover the most popular Jeep JK suspension systems. The Fox Performance Series shocks are covered by the FOX warranty and do not qualify for the Rubicon Express Advantage Warranty.

Key features

  • 4-link front and radius rear long arm system
  • Chromoly upper and lower control arms
  • Adjustable control arms
  • Super-Flex spherical ball joints
  • PT-MEG Super-Ride bushings
  • Front and rear Fox Performance shocks
  • Full width transmission crossmember
  • No welding

Things to check

A mixed front and rear layout, such as a 4-link front with radius arms in the rear, changes how the axle moves on both ends of the vehicle. Before the install, it helps to look over the steering components, the brake hoses and the driveline, since each one is affected by the new arm positions. Plan the work so the alignment and driveline checks happen right after the kit goes on.

Over time, the joints and bushings do the most work in a setup like this. Check the ball joints for play, the bushings for cracks and the arms for bends after rough trail use. Keeping the fasteners tight and the boots intact reduces wear, and a quick inspection at each service helps catch problems early.

  • Check steering components before and after installation
  • Inspect brake hoses for stretch after the lift
  • Recheck driveline angles after any tire size change

Specifications

Brand Rubicon Express
Part number JK4R43FP
Lift height 3.5 inch
Lift height range 2.5 to 3.5 inches
Suspension type 4-link front, radius long arm rear
Control arm material Chromoly
Ball joints Super-Flex spherical
Bushings PT-MEG Super-Ride
Crossmember Full width transmission
Shocks Fox Performance, front and rear
Welding None required

Vehicle fitment

The kit fits the 2007–2018 Jeep Wrangler (JK), which covers the most popular Jeep JK suspension systems.

The JL, the Gladiator, and the TJ and LJ are not covered by this fitment. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Because the front and rear geometry changes with this kit, have the alignment checked after installation. Trucks from 2012 onward may need an exhaust modification or a front drive shaft.

What’s included

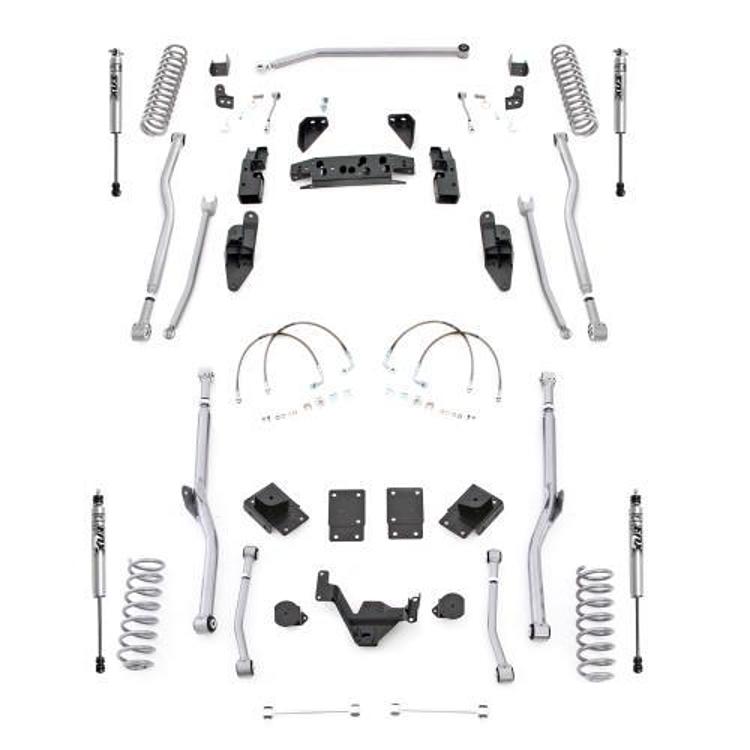

Chromoly upper and lower control arms, 4-link front components, radius long arms for the rear, Super-Flex spherical ball joints, PT-MEG Super-Ride bushings, a full width transmission crossmember and front and rear Fox Performance shocks.

SKU: R/EJK4R43FP Category:

Specification

Shipping weight 297.55 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK) likely fits2007–2018All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the JK4R43FP fit a Jeep Wrangler JK?

Yes. The kit fits the 2007–2018 Jeep Wrangler (JK), since it covers the most popular Jeep JK suspension systems. Confirm the year and model before ordering.

Can it be installed without welding?

Yes. The full width transmission crossmember is included, and the kit is installed without welding. The crossmember comes with the kit, so it does not need to be sourced separately.

What is the lift height?

The kit is sold as a 3.5 inch lift, and the listed lift height range is 2.5 to 3.5 inches.

What should I check on the transmission crossmember after installation?

Confirm it is secure, that the mounts are tight and that nothing is rubbing on the exhaust or driveline. Recheck the fasteners after the first few trail runs, since new suspension loads can settle the mounts.

Are the radius arms and 4-link parts serviced the same way?

Each part has its own joint and bushing, so both should be inspected at the same service interval. Look for play, cracked rubber and torn boots, and replace worn pieces before they affect alignment.
