Rubicon Express 3.5 Inch Extreme Duty Radius Long Arm Lift Kit with Fox Performance Shocks – JKRR43FP

Rubicon Express

Shop Jeep Wrangler JK Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 3.5 inch extreme duty radius long arm lift kit, JKRR43FP
  • Front and rear radius arms with radius long arms and control arms
  • Full width transmission crossmember and lift springs
  • Brake lines, track bar and drag link included

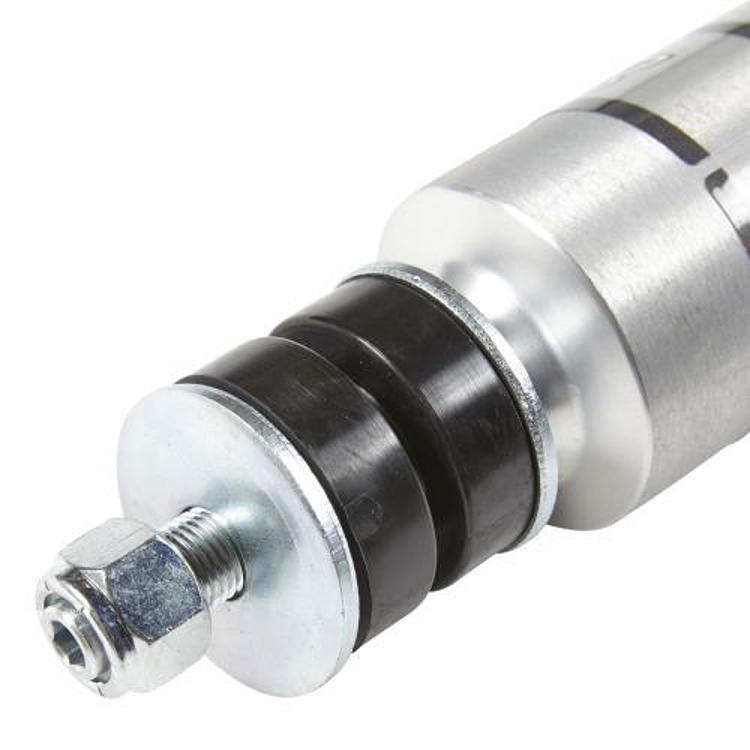

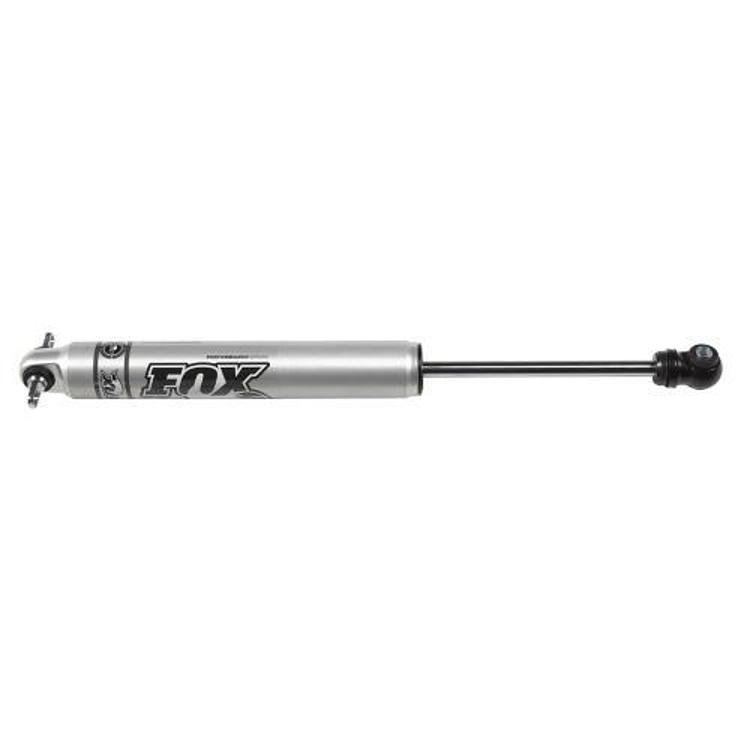

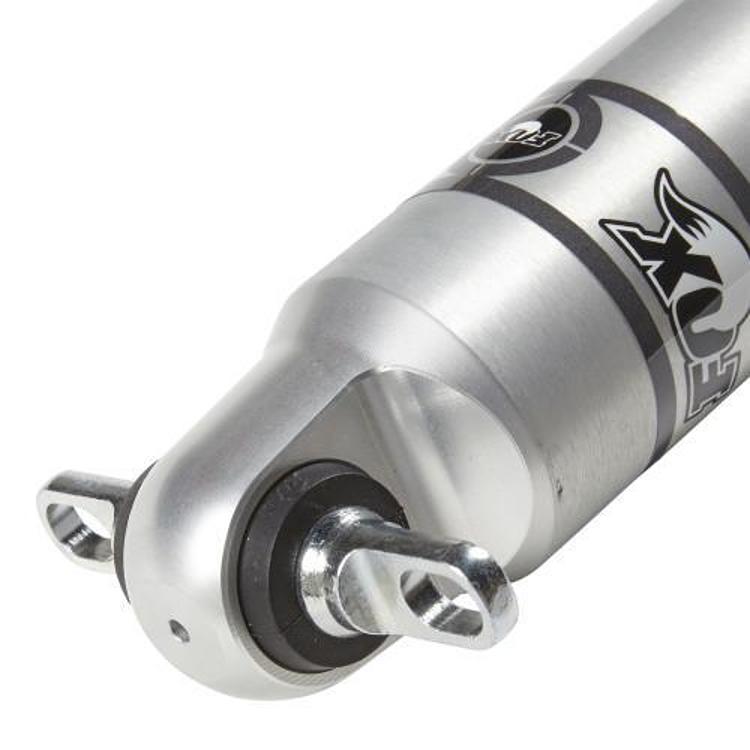

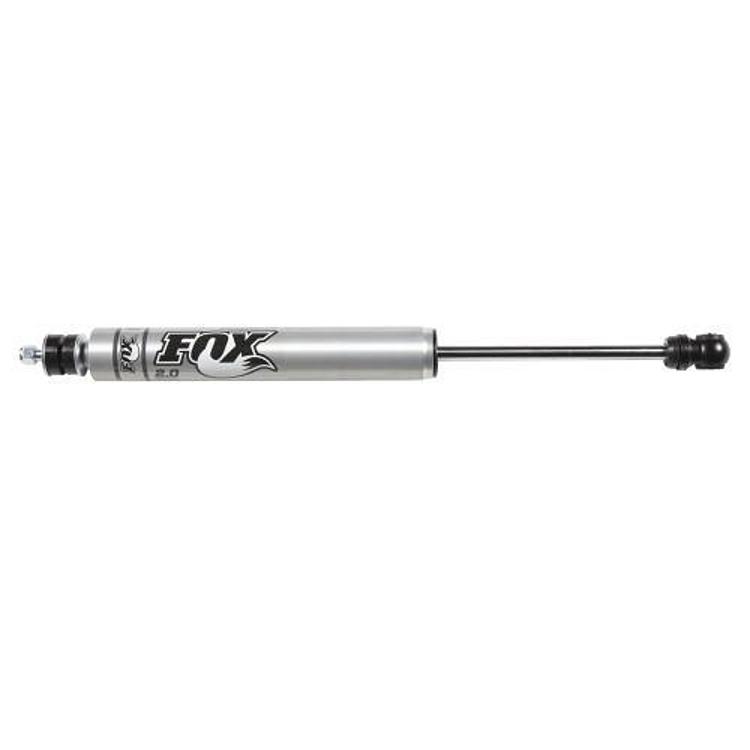

  • Front and rear Fox Performance shocks

Description

Overview

The Rubicon Express JKRR43FP is an extreme duty radius long arm lift kit for the Jeep Wrangler JK. It is built around front and rear radius arms and a 3.5 inch lift height, and it comes with Fox Performance shocks at both ends.

Rubicon Express describes its kit numbers with FOX shocks as a set created for buyers who want that shock brand on a complete suspension system. The kit covers the most popular Jeep JK suspension systems, with the Fox Performance Series and the Performance Series with Reservoir as the two shock options.

FOX Performance Series shocks are covered by the FOX warranty and do not qualify for the Rubicon Express Advantage Warranty, so keep that in mind if you need warranty support for the shocks.

Key features

  • Extreme duty radius long arm system
  • Radius front and rear arms
  • Long arms and control arms
  • Full width transmission crossmember
  • Lift springs and bump stops
  • Brake lines, track bar and drag link
  • Front and rear Fox Performance shocks

Before you buy

A radius long arm lift changes how the axles sit under the vehicle, so it is worth thinking through the whole setup before ordering. Longer arms and a higher ride height put more load on the driveline, ball joints and bushings, and they change the way the front and rear axles articulate on rough ground. Shoppers usually pair this type of kit with a steering check, new brake hoses if the old ones are worn, and a set of tires sized to the lift.

Plan for the work after the parts arrive. Alignment is required once the arms are set, and a driveline angle check helps catch binding before it damages a U-joint. Keep the factory shock mounts and bump stops inspected during installation, since lift kits place more travel demand on them. Upgrades such as a steering stabilizer or a transfer case drop are common on heavier builds and are often considered at the same time as a long arm kit.

  • Confirm the lift height range fits your tire size and body clearance goals
  • Check brake hose length after the lift is installed
  • Plan for an alignment and a driveline angle check

Specifications

Brand Rubicon Express
Part number JKRR43FP
Lift height 3.5 inch
Lift height range 2.5 to 3.5 inches
Suspension type Extreme duty radius long arm
Front and rear Radius arms with long arms
Crossmember Transmission crossmember, full width
Springs Lift springs
Shocks Fox Performance, front and rear
Warranty FOX warranty on the shocks

Vehicle fitment

The kit fits the 2007–2018 Jeep Wrangler (JK), which covers the most popular Jeep JK suspension systems.

The JL, the Gladiator, and the older TJ and LJ are outside this fitment. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Radius long arm systems change axle location and driveline angles, so have the alignment and driveline angles checked after installation. Trucks from 2012 onward may need an exhaust modification or a front drive shaft.

What’s included

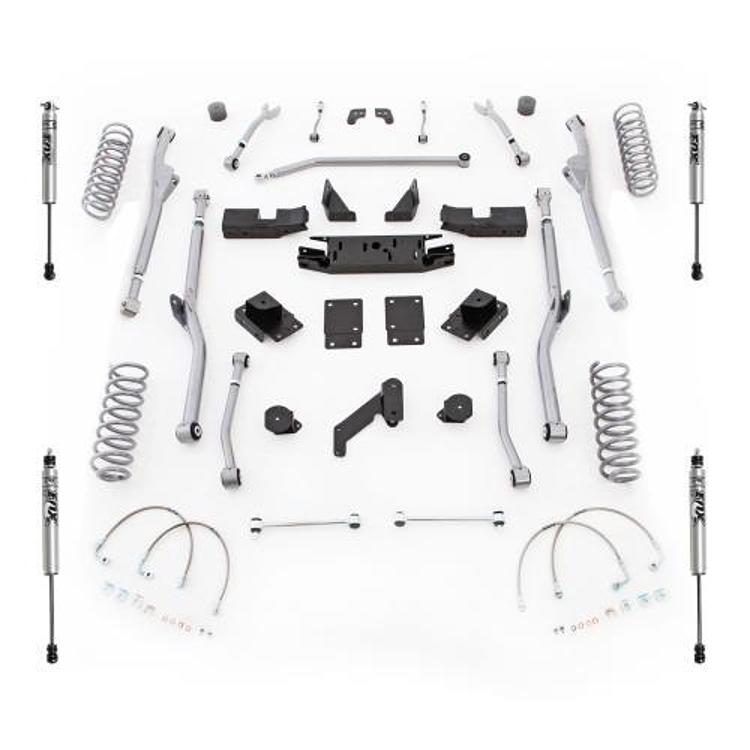

Front and rear radius arms, long arms, upper and lower control arms, a transmission crossmember, lift springs, bump stops, brake lines, a track bar, a drag link and front and rear Fox Performance shocks.

SKU: R/EJKRR43FP Category:

Specification

Shipping weight 311.15 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK) likely fits2007–2018All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the JKRR43FP fit a Jeep Wrangler JK?

Yes. The kit fits the 2007–2018 Jeep Wrangler (JK) and covers the most popular Jeep JK suspension systems. Confirm the year and model before ordering.

Are the shocks covered by the Rubicon Express warranty?

The FOX Performance Series shocks are covered by the FOX warranty and do not qualify for the Rubicon Express Advantage Warranty, so the shock warranty comes from FOX.

What lift height does it give?

The kit is sold as a 3.5 inch lift, and the listed lift height range is 2.5 to 3.5 inches.

How often should radius arm bushings and joints be inspected?

Inspect them at every tire rotation and after any hard off-road run. Look for cracked rubber, torn boots, play in the joints and clicking or clunking over bumps. Worn joints make the axle wander and can throw off the alignment, so replace them when play appears.

Do long arm kits affect the stock steering?

Often they do. Raising the axle changes the steering geometry, so the drag link and track bar angles should be checked after installation. Confirm the fit for your vehicle's year, model and trim before ordering any steering upgrade.
