Overview
The Rubicon Express RE7504 is a 4.5 inch Extreme-Duty long arm lift kit with a rear Tri-Link for 1997–2002 Jeep Wrangler TJ models. It is sold without shocks, and its lift height range is 3 to 4.99 inches.
This is a full suspension replacement with longer control arms. The longer arms improve lifted geometry and give more stability on and off road, less torque roll and more trail traction than a standard short arm lift.
The rear Tri-Link replaces the rear track bar and lets the axle move straight up and down through its travel. It also adds anti-squat for steep climbs and improves on-road tracking.
Key features
- Chromoly long arms, with front and rear control arms made from .250-wall 4130 chromoly tubing
- Rear Tri-Link that eliminates the rear track bar
- Builder Ball misalignment joint, rated by Rubicon Express for up to 32 degrees of misalignment in a 3 inch OD housing
- Adjustable control arms with serviceable Super-Flex spherical ball joints
- PT-Meg Super-Ride bushings designed for on and off-road performance
- Tuned lift springs and stainless steel brake lines

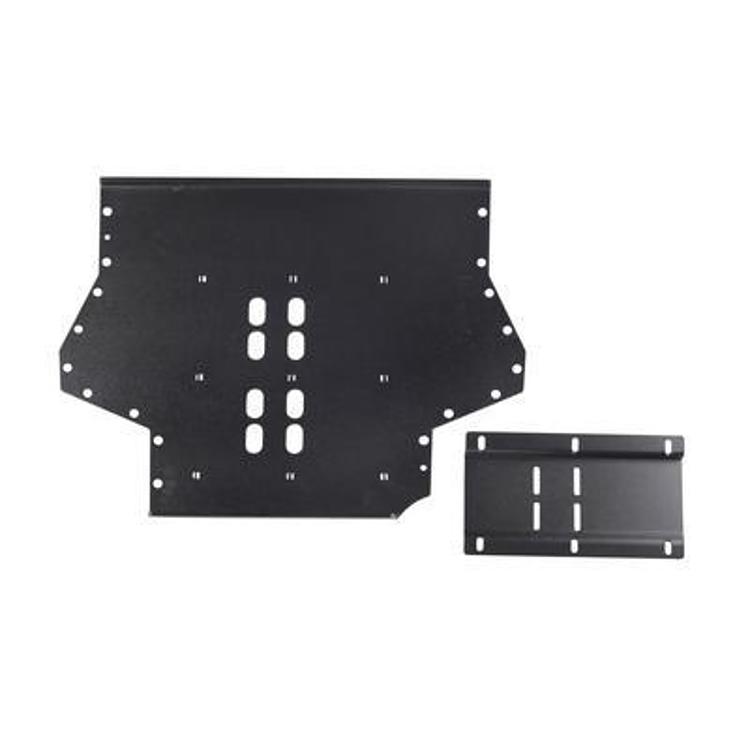

- Three-piece belly pan for transfer case and transmission access
Shocks and long arm setup
A long arm kit with no shocks leaves the damper choice to the buyer. Shock length has to suit the new arm position and the lift height, so the old shocks should be measured against the new geometry before they are reused. A shock that is too short can bottom out on the bump stops, and one that is too long can limit droop.
Long arms also change how the rear axle carries braking and acceleration loads. The Tri-Link helps control wrap, but the brake lines, driveline and bushings should be looked at after the first drives because the new geometry settles in over time.
- Measure shock eye-to-eye length in the new position
- Inspect bump stops for cracks or compression
- Check driveline angles after the first few drives
- Look over the rear bushings for cracks or sagging
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | RE7504 |
| UPC | 614901442038 |
| Lift height range | 3 to 4.99 inches |
| Suspension type | Long arm |
| Kit type | Extreme-Duty long arm |
| Rear lift method | 3-link (Tri-Link) |
| Shocks included | No |
| Fitment | Direct fit |
Vehicle fitment
It fits the 1997–2002 Jeep Wrangler TJ, including the SE, Sahara and Sport models.
Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
Long arm kits change suspension geometry and driveline angles, so have the alignment and driveline angles checked after installation. The kit is bolt-on for factory Dana 35 and Dana 44 rear ends.
What’s included

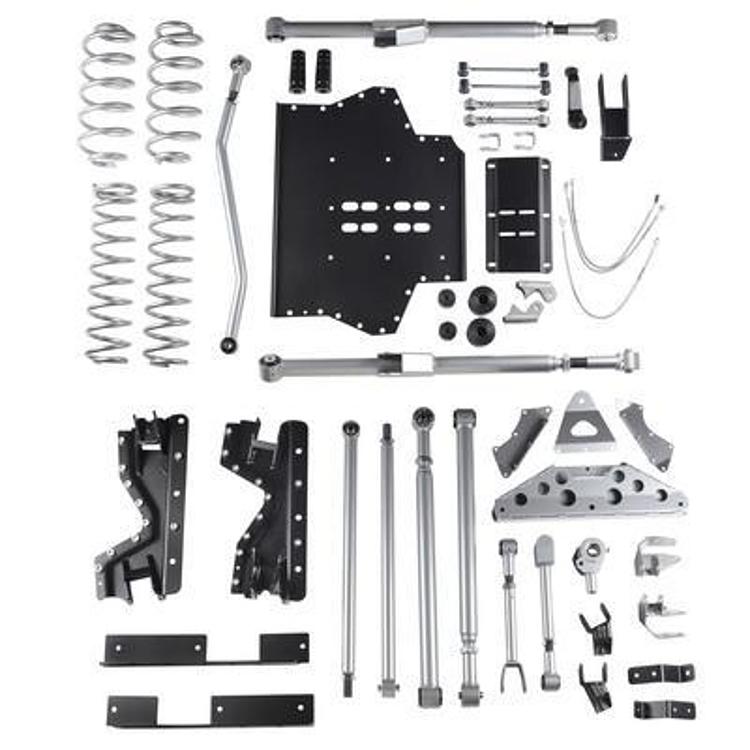

The kit includes front and rear control arms, adjustable control arms with Super-Flex spherical ball joints, the Tri-Link and Builder Ball, PT-Meg Super-Ride bushings, tuned lift springs, stainless steel brake lines and a three-piece belly pan.
Not included: shocks.
