Overview
The Rubicon Express JL7100PB is a 2.5 to 3 inch Super-Ride lift kit with piggyback monotube reservoir shocks for the 2018–2026 Jeep Wrangler Unlimited JL. It is a direct fit for a wide range of 4-door trims, including Moab, Rubicon, Sahara, Sport, Willys and Freedom.

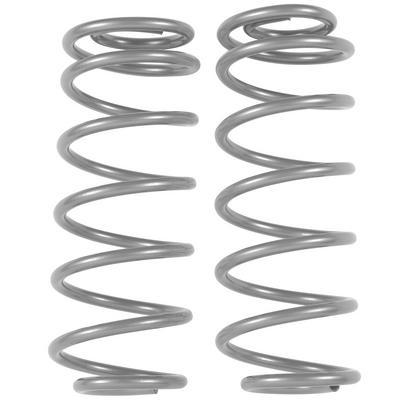

The kit uses coil springs and 2.5-inch diameter floating piston monotube shocks, with a 1.75-inch 4130 chromoly front lower arm. Extended sway bar end links and bump stops are included for off-road use. This is a Super-Ride short arm system with monotube shocks at both ends.
The system provides the height to clear 35-inch tires on loaded non-Rubicon models and 37-inch tires on Rubicon models. The lift height range is 0 to 3.5 inches.
Key features

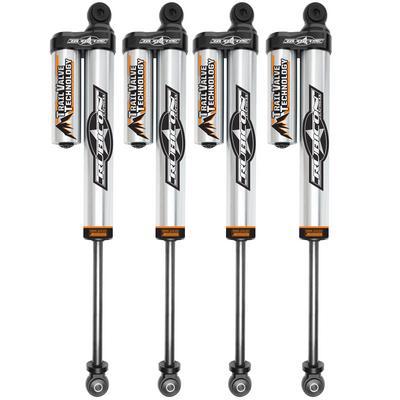

- Piggyback monotube reservoir shocks, included at the front and rear

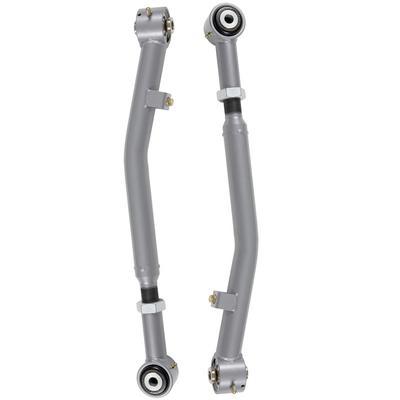

- 1.75-inch diameter 4130 chromoly Super-Ride front lower arms

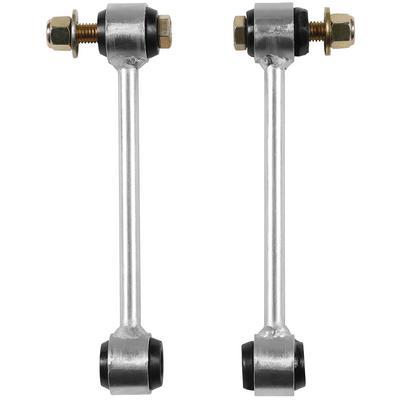

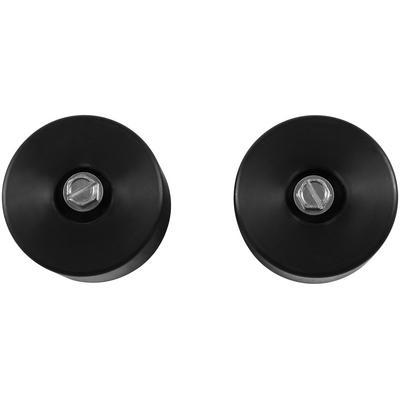

- Extended sway bar end links and bump stops
- Coil spring rates tuned by Rubicon Express
- Clearance for 35-inch and 37-inch tires depending on trim

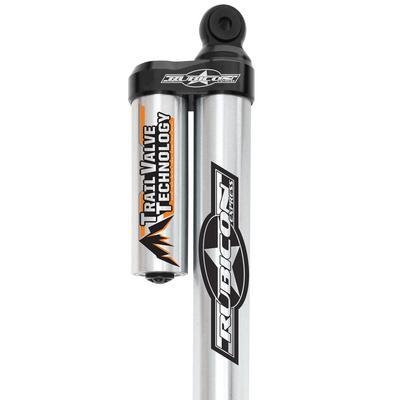

Piggyback reservoir shocks explained
Piggyback reservoir shocks place the gas reservoir alongside the shock body rather than inside it. The separate reservoir gives the damping fluid more room to cool, which helps keep damping consistent on long climbs and descents. That design suits trucks that spend time on rough terrain. Keeping the reservoir clean makes leaks easier to spot during routine checks.
Because the reservoir sits outside the body, the hose and its mounting clamp should be checked for rubbing against the frame or tires. Lift height and shock length work together, so confirm the shock travel after the install. Check the alignment and the sway bar end links at the same time.
- Inspect reservoir hoses for chafing
- Check the mounting clamps for tightness
- Re-check shock travel at full droop
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | R/EJL7100PB (JL7100PB) |
| Kit type | Super-Ride short arm lift kit |
| Lift | 2.5 to 3 inch suspension lift |
| Lift height range | 0 to 3.5 inches |
| Tire size | 35 inches |
| Front shocks | Monotube reservoir |
| Rear shocks | Monotube reservoir |

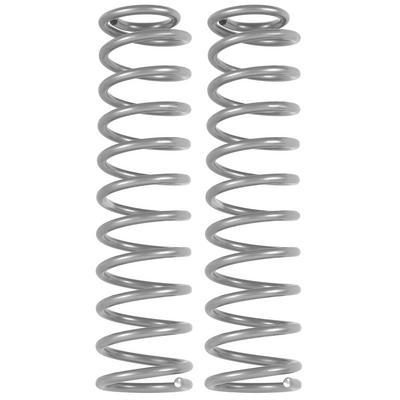

| Rear lift method | Coil springs |
| Shocks included | Yes |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2018–2026 Jeep Wrangler (JL) Unlimited 4-door trims, including the 80th Anniversary, Freedom, Islander, High Altitude, Moab, Rubicon, Rubicon 392, Sahara, Sahara Altitude, Sport, Sport Altitude, Sport S, Willys and Willys Sport models.
The 2-door Wrangler and earlier Wrangler generations are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
With a 2.5 to 3 inch lift and monotube reservoir shocks, the shock length and the alignment both need checking after the install. The sway bar end links should be fitted to the extended positions the kit supplies.

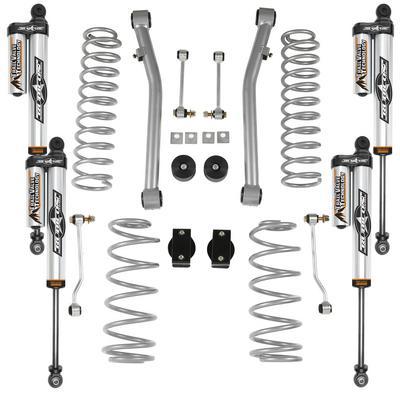

What’s included
The kit includes the piggyback monotube reservoir shocks at the front and rear, the Super-Ride front lower arms, extended sway bar end links and the extended bump stops.
