Overview
The Rubicon Express RE7524M is a 4.5 inch Extreme-Duty long arm lift kit with a rear Tri-Link and mono tube shocks for the 2004–2006 Jeep Wrangler LJ Unlimited. The lift height range is 3 to 4.99 inches, and the kit is a direct fit.
The long arm system replaces the stock suspension with longer control arms. The LJ version carries the same approach used on the TJ, improving lifted geometry, stability on and off road and torque roll control over a short arm lift.
A rear Tri-Link replaces the rear track bar, allowing true up and down wheel travel. It adds anti-squat on steep climbs and helps on-road tracking. Mono tube shocks come with the kit.
Key features
- Chromoly long arms made from 4130 chromoly tubing
- Rear Tri-Link replacing the rear track bar
- Builder Ball misalignment joint, rated for up to 32 degrees
- Adjustable control arms with serviceable Super-Flex spherical ball joints
- Mono tube shocks included
- Tuned lift springs
Lift height and tire clearance
A 4.5 inch lift on the LJ Unlimited raises the body and changes how the tires sit in the wheel wells. Before buying, measure the current tires and the tire size you plan to run. Tire rubbing usually shows up at full steering lock or on long suspension compression, so test that range in a driveway before going out on the trail.
Long arms and a Tri-Link reduce the amount of axle wrap under acceleration, but they also change the driveline angles. A driveline check after installation shows whether the joints remain within a safe range. Look for vibration at highway speeds and listen for clunks when shifting.
Mono tube shocks and new lift springs both affect how the vehicle settles, so recheck the ride height once the vehicle has been driven a few miles.
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | RE7524M |
| UPC | 614901452976 |
| Lift height range | 3 to 4.99 inches |
| Suspension type | Long arm |
| Kit type | Extreme-Duty long arm |
| Rear lift method | 3-link (Tri-Link) |
| Control arm material | 4130 chromoly, .250 wall |
| Misalignment joint | Builder Ball, up to 32 degrees, 3 inch OD housing |
| Shocks included | Yes, mono tube |
| Fitment | Direct fit |
Vehicle fitment
It fits the 2004–2006 Jeep Wrangler (LJ), including the Unlimited and Unlimited Rubicon models.
Fit covers the Unlimited models only. Verify body style and trim against your own vehicle.
Installation notes
The new control arms and the Tri-Link change the suspension geometry, so an alignment and a driveline angle check are needed after installation. The kit is bolt-on for factory Dana 35 and Dana 44 rear axles.

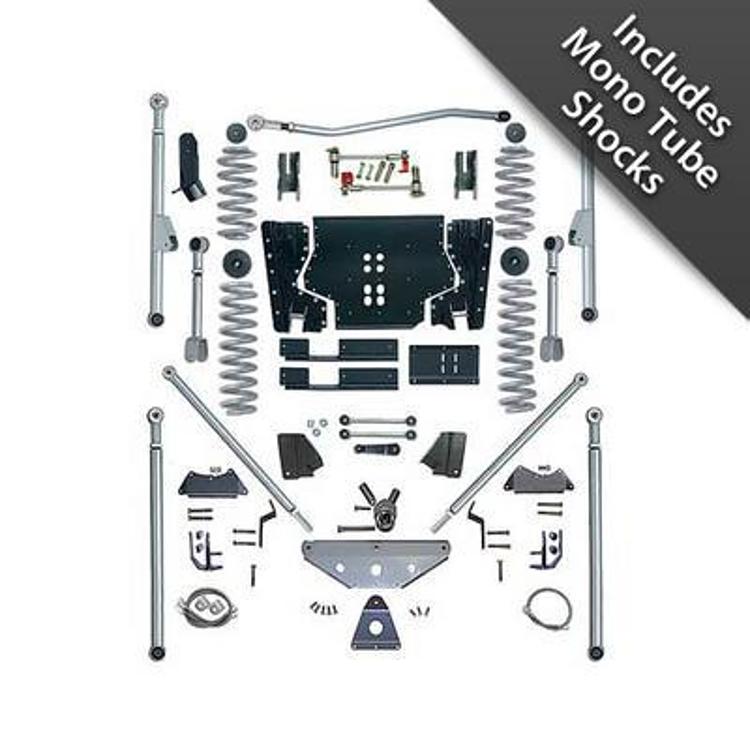

What’s included
The kit includes front and rear control arms, the rear Tri-Link, the Builder Ball, mono tube shocks, tuned lift springs, PT-Meg Super-Ride bushings and a three-piece belly pan.
