Rubicon Express 2.5″ Extreme-Duty Monotube Rear Shock – RXJ907

Rubicon Express

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear 2.5-inch Extreme-Duty monotube shock for 2020–2026 Jeep Gladiator
  • Models with a 3.5 to 5.5-inch lift
  • Full bore piston; 3/4-inch OD shaft
  • Hand made in the USA by Walker Evans

Description

Overview

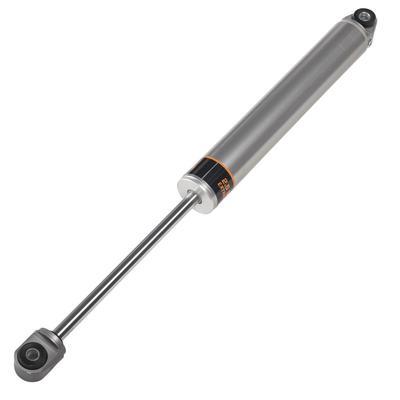

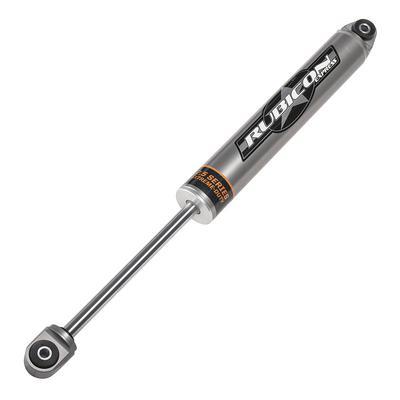

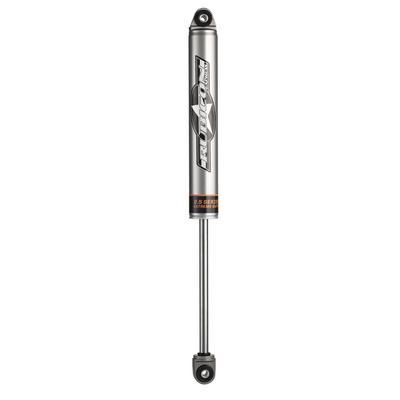

The Rubicon Express RXJ907 is a rear 2.5-inch Extreme-Duty monotube shock for the 2020–2026 Jeep Gladiator, sold under the R/ERXJ907 part number. It is built for a 3.5 to 5.5-inch lift and covers the Launch Edition, Mojave, Overland, Rubicon, Sport and Sport S trims.

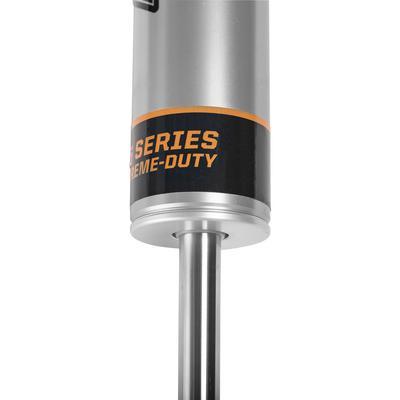

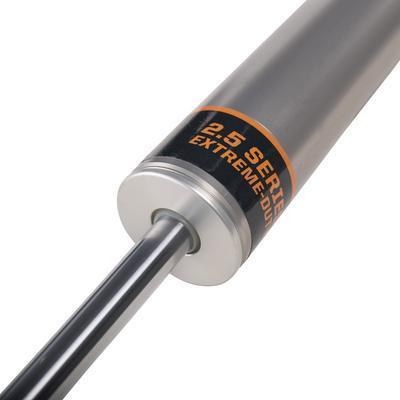

The shock has a 2.5-inch body with a full bore piston that supports strong damping. The body is 6061-T6 impact-forged aluminum with hard anodizing for durability and lower friction. The aluminum construction also helps keep shock temperatures down.

The shaft is a 3/4-inch OD, chrome-plated 17-4 stainless steel rod. An internal floating piston separates nitrogen gas from oil to improve damping response and reduce cavitation. A redundant seal package protects the shaft, and the valving is tuned to Rubicon Express spring rates to balance ride quality and suspension travel.

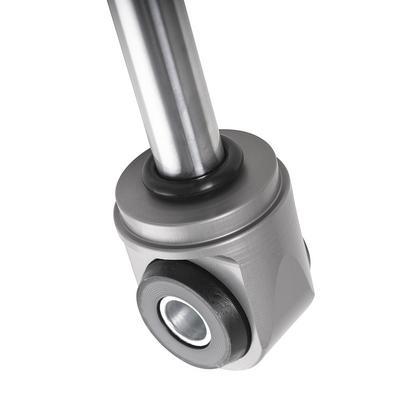

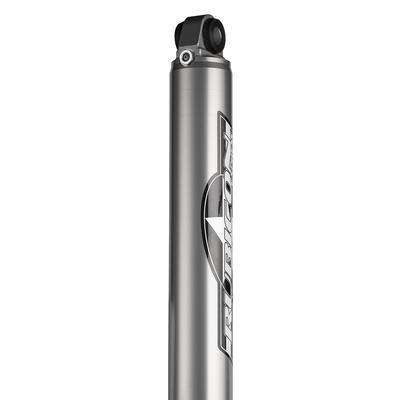

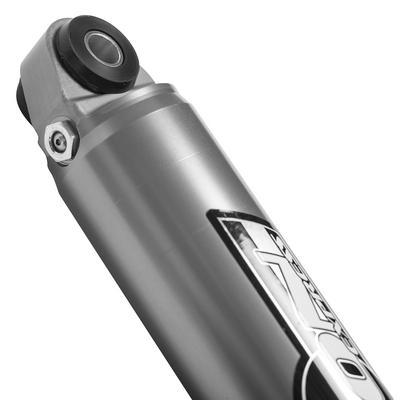

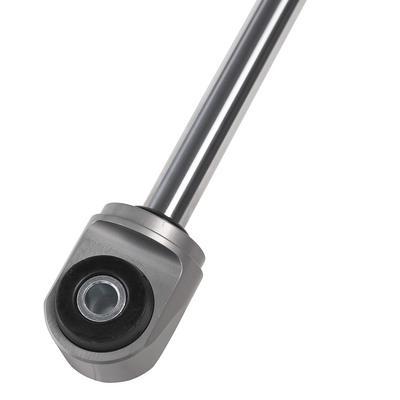

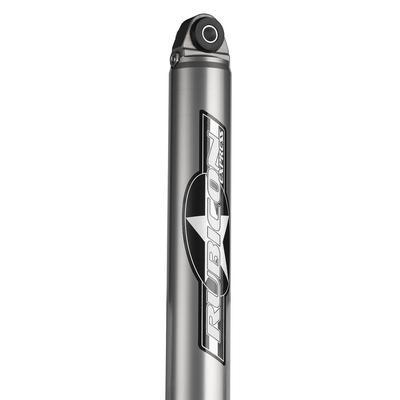

The shock is hand made in the USA by Walker Evans. Its eyelet mounts at both ends suit the Gladiator application, and the shock is hydraulic.

Key features

  • 2.5-inch body with a full bore piston
  • 6061-T6 impact-forged aluminum body, hard anodized
  • 3/4-inch OD chrome-plated 17-4 stainless shaft
  • Internal floating piston separates nitrogen and oil
  • Redundant seal package
  • Valving tuned to Rubicon Express spring rates

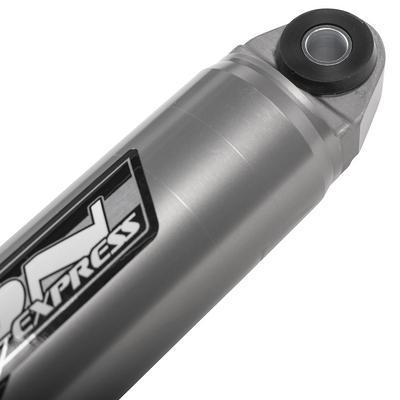

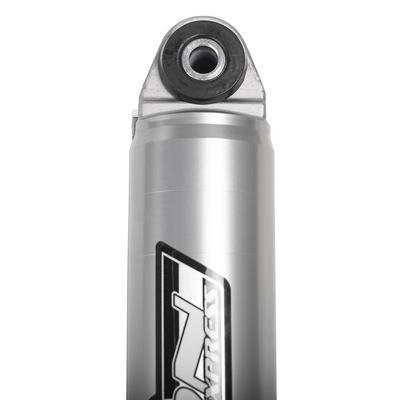

  • Eyelet top and bottom mounts, hydraulic monotube
  • Hand made in the USA

Choosing a rear shock setup

A rear shock controls how the axle moves over bumps and during braking and acceleration, so its damping shapes both on-road comfort and off-road control. On a lifted vehicle the shock works at a different angle and travel length than stock, which makes lift height and mount geometry worth checking before you order. Shocks are often replaced in pairs so the rear end rides evenly from side to side.

When comparing options, consider how the shock will be used. A daily driver with occasional trail trips may suit a setup tuned for steady damping, while a vehicle that sees rocky trails benefits from a body and shaft built to handle heat and debris. Bump stops, control arms and the front shocks all affect how the rear performs, so review them alongside the new shock.

Specifications

Brand Rubicon Express
Part number RXJ907 (R/ERXJ907)
Series Extreme-Duty Monotube
Body diameter 2.5 inches
Position Rear
Lift range 3.5 to 5.5 inches
Body 6061-T6 impact-forged aluminum, hard anodized
Shaft 3/4-inch OD, 17-4 stainless, chrome plated
Top and bottom mount Eyelet
Origin Hand made in the USA by Walker Evans
Fitment type Direct fit

Vehicle fitment

It is a direct fit for the 2020–2026 Jeep Gladiator, including the Launch Edition, Mojave, Overland, Rubicon, Sport and Sport S trims.

Jeep Wrangler models and other Gladiator years fall outside this application. Match your year, model and trim to the list before ordering.

What’s included

One rear shock absorber.

Fitment

VehicleYearsTrims
Jeep Gladiator2020–2026Launch Edition, Mojave, Overland, Rubicon, Sport, Sport S

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the RXJ907 fit a 2021 Jeep Gladiator with a lift in the listed range?

Yes. The 2020–2026 Gladiator range includes 2021. The shock is intended for models with a 3.5 to 5.5-inch lift, so confirm your lift height before ordering.

Is the RXJ907 a front or rear shock?

It is a rear shock with eyelet top and bottom mounts. It is hand made in the USA by Walker Evans.

Where is it made?

It is hand made in the USA by Walker Evans. The shock uses a 3/4-inch OD chrome-plated shaft, and the body is 6061-T6 impact-forged aluminum.

How can I tell when a rear shock needs replacing?

Common signs include oil on the body, a bouncy ride after bumps, uneven rear tire wear and clunking at the eyelets. Inspect the mounts at the same time, since worn eyelets can mimic a failed shock.
