Overview

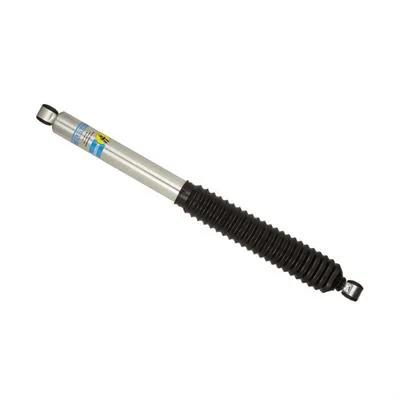

The Bilstein 5100 Series 24-315067 is a front shock absorber for the 2020–2026 Jeep Gladiator. It is built for a lifted front end with a 3 to 4.5 inch lift and is sold as a single front shock, designed as a direct-fit option for lifted trucks and SUVs.
The shock is a monotube design with a 46mm zinc-plated smooth body and eyelet mounts at both ends. Its collapsed length is 18.52 inches and its extended length is 28.76 inches. The velocity-sensitive digressive piston is tuned for the application, which Bilstein says gives a significant improvement in ride quality, handling and comfort.
Key features
- Built for a front lift of 3 to 4.5 inches
- Monotube design with a digressive piston
- 46mm zinc-plated smooth body
- Eyelet mounts at the top and bottom
- Sold individually
Lifted front end considerations
A front lift changes the angle of the front driveline, the steering geometry and the way the shock sits at full extension. On a lifted Gladiator the shock works through a longer stroke, so its extended length has to suit the new height. Set the lift first, then confirm the shock length fits, rather than fitting the shock and hoping the lift matches.
Larger tires and a heavier bumper add weight to the front end and make the dampers work harder. Check ball joints, tie rods and the track bar after a lift, since they carry more load. A monotube design handles heat well, but it cannot make up for worn steering parts or worn bushings.
- Confirm the lift height before ordering
- Check the driveline angle after the lift
- Inspect tie rods and ball joints
- Recheck alignment after the first few drives
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-315067 |
| Shock series | 5100 Series |
| Position | Front |
| Shock type | Monotube, gas-charged |
| Body diameter | 46mm |
| Front lift | 3 to 4.5 in |
| Collapsed length | 18.52 in |
| Extended length | 28.76 in |
| Top mount | Eyelet |
| Bottom mount | Eyelet |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2020 through 2026 Jeep Gladiator.
Gladiators from before 2020 are not on this list. Confirm your vehicle’s year, model and trim before ordering.
What’s included
One front shock absorber.
Installation notes
This shock is sized for a lifted front end, so check the lift height on your truck and confirm that the front alignment and driveline angles are set after the lift is installed.
