Overview
The Rancho RS77066 is a rear RS7MT monotube shock for the 2018 through 2026 Jeep Wrangler (JL) with a 2-inch or 3.5-inch lift. It also fits the 2020 through 2026 Jeep Gladiator.
The shock measures 19.496 inches compressed and 28 inches extended, with 8.511 inches of travel. Both mounts are eyelets. It is gas charged, and its 2-inch monotube body is filled with all-weather fluid for cooler operation and better vehicle control.
The RS7MT suits off-road use and larger wheel and tire packages. Its deflective disc valving can be digressive, linear or progressive depending on the application.

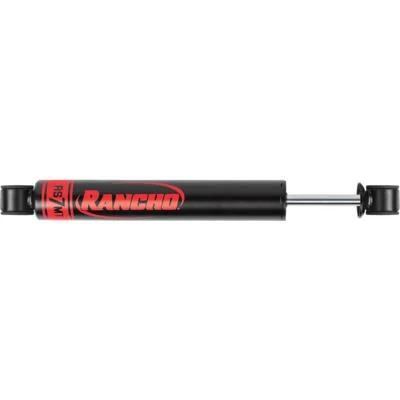

The 14 mm hardened chrome piston rod resists scuffs and corrosion, and the black satin finish carries a red Rancho logo. The full-floating dividing piston and high-pressure nitrogen gas keep steady pressure on the hydraulic oil, which reduces aeration and shock fade.
Key features
- Rear monotube shock for the Wrangler JL with a 2 or 3.5-inch lift
- Deflective disc valving tuned to the application
- All-weather fluid in a large 2-inch monotube body
- Full-floating dividing piston with high-pressure nitrogen gas to reduce aeration and fade
- Double-welded loops at stress areas and a hot form reserve tube
- Black satin finish with Rancho red logo
Rear shocks and lift changes
Rear shocks control axle movement under load and help keep the tires in contact with the ground on uneven trails. A rear shock that has lost damping lets the axle bounce after bumps and can make the back of the truck feel loose on pavement. Because the rear axle carries cargo and passengers, worn rear shocks are noticed quickly.
Lift height and tire size should be considered together with the shock. A higher lift needs a shock that reaches a longer stroke, and larger tires add load. Eyelet-mounted shocks are often serviced alongside the bushings, so inspect those parts while the shock is off the truck. Keep the rod clean, since grit wears the seal quickly.
- Check eyelets for wear or cracking
- Look for leaks along the body
- Match lift height to the shock length
- Replace rear shocks in matched pairs
Specifications
| Brand | Rancho |
|---|---|
| Part number | RANRS77066 |
| Series | RS7MT |
| Position | Rear |
| Shock type | Monotube |
| Compressed length | 19.496 inches |
| Extended length | 28 inches |
| Travel | 8.511 inches |
| Body diameter | 2.0 inches |
| Top and bottom mount | Eyelet |
Vehicle fitment
It fits the 2018 through 2026 Jeep Wrangler (JL) in two-door and Unlimited four-door versions, and the 2020 through 2026 Jeep Gladiator.
The list does not include the Wrangler JK or the Wrangler JL model years before 2018. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Mounting is application specific and needs no sleeves or extra hardware. Check the lift on your truck, since the shock is for a 2-inch or 3.5-inch lift.
What’s included
Check the package contents against your installation before starting.
