Rubicon Express 5.5 Inch Extreme-Duty Long Arm Lift Kit with Rear Track Bar and Mono Tube Shocks – RE7225M

Rubicon Express

Shop Jeep Wrangler LJ Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 5.5-inch long arm lift with mono tube shocks
  • Lift height range 5 to 6.99 inches
  • Built for 2004–2006 Jeep Wrangler LJ Unlimited models
  • Rear track bar and tuned lift springs

Description

Overview

The Rubicon Express 5.5 Inch Extreme-Duty Long Arm Lift Kit with Rear Track Bar and Mono Tube Shocks (part number RE7225M) is a long arm lift for the 2004–2006 Jeep Wrangler LJ Unlimited and Unlimited Rubicon. The stated lift height range is 5 to 6.99 inches, and mono tube shocks are included.

The arms are a complete suspension replacement, with longer control arms as the core of the design. They add stability, reduce torque roll and help trail traction. The design was first offered for the TJ and is built here for the LJ.

Mono tube shocks come with this kit and are sized for the 5 to 6.99 inch lift range. The package also includes tuned lift springs, a rear track bar and a three-piece belly pan. A lift this size changes driveline and steering geometry, so check both after the job.

Key features

  • Mono tube shocks included
  • Chromoly long control arms
  • PT-Meg Super-Ride bushings
  • Adjustable control arms with Super-Flex spherical ball joints
  • Tuned lift springs
  • Rear track bar
  • Three-piece belly pan

Installing a lift this size

A 5 to 6.99 inch lift raises the body and changes the angles of every joint in the front and rear suspension. The arms and springs are the main parts, but the work reaches into the steering, the driveline and the brakes. Plan for a full alignment and a test drive on a level road before heavy use.

Mono tube shocks suit a mix of street and trail driving, but they are set for a particular ride height. Keep the bump stops and shock mounts in view during the first drive, because a taller stance can change how the axle travels at full compression. Re-check all fasteners after the first few trail runs.

  • Bolt torque after the first trail runs
  • Brake hose reach at full droop
  • Steering stop and linkage clearance

Specifications

Brand Rubicon Express
Part number RE7225M
Lift height range 5 to 6.99 inches
Suspension type Extreme-Duty long arm
Shock absorbers Mono tube, included
Fitment type Direct fit

Vehicle fitment

It fits the 2004–2006 Jeep Wrangler (LJ) Unlimited and Unlimited Rubicon.

The 2-door LJ and the TJ, JK and JL Wranglers are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The mono tube shocks are included, so the job focuses on the arms, springs and track bar. Check the driveline angles and the brake lines after installation, and set the alignment. Check the track bar and shock clearance once the lift is complete.

What’s included

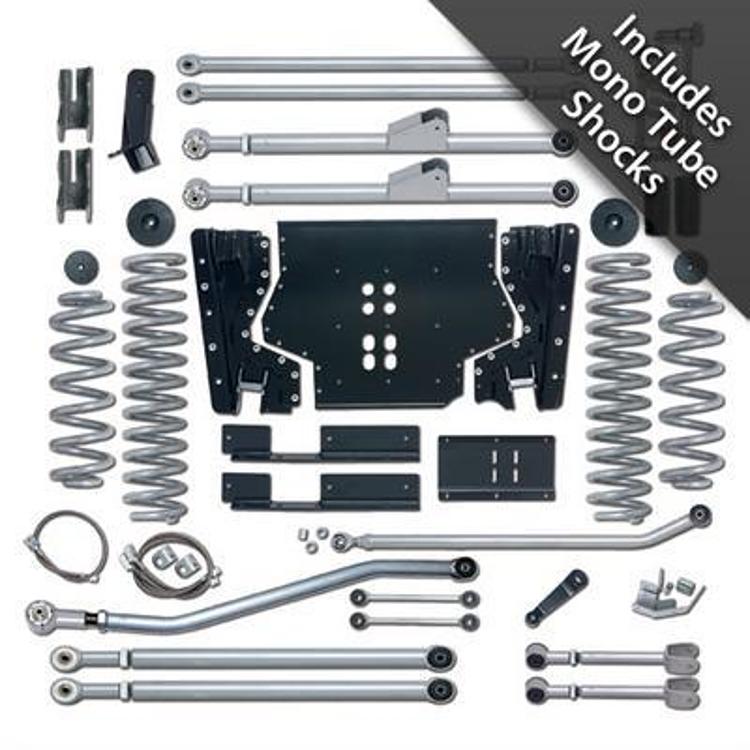

Mono tube shocks, tuned lift springs, chromoly long arms, PT-Meg bushings, Super-Flex spherical ball joints, a rear track bar and a three-piece belly pan.

SKU: R/ERE7225M Category:

Specification

Shipping weight 409.10 lbs
Package dimensions 48.00 × 24.50 × 24.50 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (LJ)2004–2006Unlimited, Unlimited Rubicon

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Rubicon Express RE7225M include mono tube shocks?

Yes. Mono tube shocks are included with this kit, matched to the 5 to 6.99 inch lift range. They are part of the package alongside the arms, springs and track bar.

Will the RE7225M fit a 2006 Jeep Wrangler LJ Unlimited Rubicon?

Yes. It fits the 2004–2006 Jeep Wrangler LJ Unlimited Rubicon, so a 2006 model is covered. Check your year, model and trim before ordering.

Are brake lines included with the RE7225M?

Brake lines are not among the kit's contents, so check the brake hose length before installing the long arms. Lift height changes hose reach, so confirm the hoses fit at the new height before starting the install.

How do I know whether the shocks need replacing after the lift?

Look for leaks, dents, bent shafts and a shock that feels loose or noisy when you bounce the corner of the vehicle. A shock that bottoms out or no longer controls body movement should be replaced. Inspect the shocks along with the bushings every time the suspension is serviced.
