Overview
The Rubicon Express JT7100T is a 2.5/3.5 inch standard arm suspension lift kit with twin tube shocks for the 2020–2026 Jeep Gladiator JT. It is a direct fit for the Gladiator JT trims covered below, and it is a front-position standard arm lift.
The kit uses coil springs at the rear and a standard arm setup, with a lift height range of 0 to 3.5 inches. The specifications list a 35-inch tire size and mark the twin tube shocks as included at both ends.
The kit is a bolt-on system that improves street handling and off-road capability. It makes room for 37-inch tall tires, and installation does not require changing driveshafts or modifying exhaust or brake lines.
Key features
- 2.5/3.5 inch standard arm suspension lift
- Twin tube shocks at the front and rear, included
- Coil spring rear lift method
- Room for 37-inch tall tires.
- Bolt-on design, per the brand
Alignment and shock length
Standard arm lifts raise the body by changing how the axles are located, so the control arm geometry shifts along with the ride height. Once the lift is in, wheel alignment and driveline angles are the main things to re-check, because a change in those angles can show up as vibration at highway speed. Tire size matters too: a taller tire adds rotating mass and can rub at full steering lock, so a fender check is a normal part of any lift.
Twin tube shocks sit between the axle and the frame, and their length has to match the new ride height so the suspension can reach full travel without bottoming out. If the old shocks are reused, inspect the mounts and bushings for wear first, since worn bushings can make a new lift feel loose. Inspect the arms and brackets periodically, especially after rough trail use.
- Check shock length at full extension and compression
- Inspect control arm bushings before reusing them
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | R/EJT7100T (JT7100T) |
| Kit type | Standard arm suspension lift kit |
| Lift | 2.5 to 3.5 inch |
| Lift height range | 0 to 3.5 inches |
| Tire size | 35 inches |
| Front shocks | Twin tube |
| Rear shocks | Twin tube |
| Rear lift method | Coil springs |
| Shocks included | Yes |
| Position | Front |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2020–2026 Jeep Gladiator in the 80th Anniversary, High Altitude, Launch Edition, Mojave, Overland, Rubicon, Sport, Sport S, Willys and Willys Sport trims.
Only the Gladiator JT is listed, and Wrangler models are outside this fitment. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Standard arm kits move the axle location, so the alignment and the driveline angles should be checked after the install. The twin tube shocks are included, so check the shock length against the new ride height once the truck is set.
What’s included

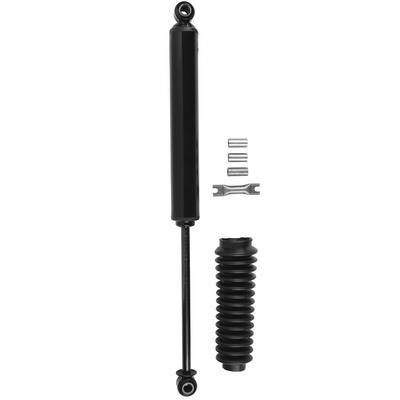

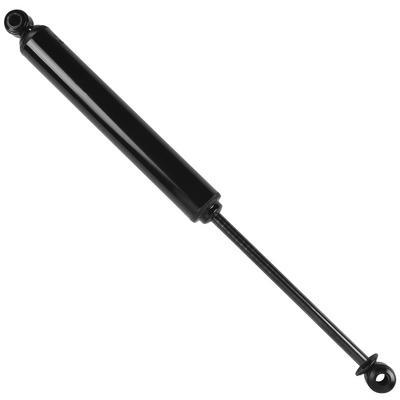

The kit includes twin tube shocks at the front and rear, along with the standard arm lift components and the coil spring rear lift listed in the specifications.
