Overview

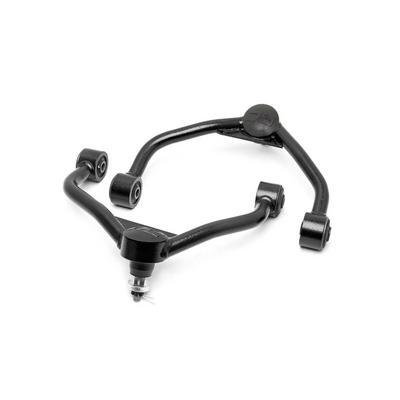

The Rough Country 31201 is a front upper geometry correction control arm sized for a 3 inch lift on Ram 1500 trucks. It fits the 2012–2018 Ram 1500 and the 2019–2024 Ram 1500 Classic.
The tubular arm makes alignment adjustments easier and keeps the ball joint at optimum angles after lifting. That supports near-factory geometry and gives the ball joint a greater range of motion with less stress.
Key features
- Geometry correction design for a lifted truck
- Tubular construction
- Ball joint at optimum angles after lifting
- Clevite rubber bushings
- Front upper position
Geometry correction on a lift
Geometry correction arms move the upper ball joint back toward its factory angle after a lift. Without that correction, the ball joint can run at a steep angle, which increases wear and can affect steering feel. Tubular designs are common because they keep weight low while still providing adjustment.
Choosing a geometry arm means matching it to the lift height and the truck’s trim. Lower arms, steering components and brake lines should be checked during installation, since a lift changes their position too. Keep the final alignment settings with the truck’s records so future service can be done to the same settings.
- Match the arm to the lift height before buying
- Check brake lines and sway bar links for clearance
- Inspect ball joints and bushings during installation
- Expect alignment work after any suspension change
Specifications
| Brand | Rough Country |
|---|---|
| Part number | R/C31201 |
| Position | Front upper |
| Type | Geometry correction bracket |
| Joint design | Ball joint |
| Lift | 3 inch |
Vehicle fitment
It fits the 2012–2018 Ram 1500 across its Big Horn, Express, Laramie, Limited, Rebel, SLT and Tradesman models, and the 2019–2024 Ram 1500 Classic.
Confirm fit for your vehicle’s year, model, lift height and trim before ordering, especially for non-Classic 2019–2024 Ram 1500 trucks and any GM or Ford truck.
Installation notes
This kit is sized for a 3 inch lift. Have the front alignment checked after installation, since the arm is meant to set the ball joint angle.
What’s included
One front upper geometry correction control arm.
