Overview
The Rough Country Nissan 1.5 Inch Lift Shackles, part 866, are rear lift shackles for the 2005-2026 Nissan Frontier and the 2005-2015 Nissan Xterra. They provide a 1.5 inch lift and are designed to keep the factory ride quality.
The shackles are made from 3/8 inch heavy duty plate steel with a powder coat finish. The kit includes DOM tubed bolt sleeves and grade 8 hardware, a combination designed to resist breaking and splitting.
The shackle design is aimed at reducing driveline vibration. The ride feel depends on the factory bushings the kit keeps.
Key features
- 1.5 inch lift
- 3/8 inch heavy duty plate steel
- DOM tubed bolt sleeves
- Grade 8 hardware
- Powder coat finish
- Designed to reduce driveline vibration.
Driveline and suspension checks
A rear lift changes the angle of the driveline, which can cause vibration when the vehicle accelerates or coasts. A shop can measure the angles and suggest shims or a different setup if needed. Keep an eye on the transfer case and rear axle pinion angle, since a large change can wear the joints faster than normal.
Factory bushings stay in place with this kit, so the feel of the ride depends on their condition. Replace any worn bushings before installing the shackles, and grease them if the design allows. Check the powder coat after the first season for chips, which can start rust on the steel. Tighten the grade 8 hardware after the first few drives and inspect the sleeves for movement.
- Measure driveline angles after lifting
- Replace worn factory bushings first
- Touch up chips in the powder coat
Specifications
| Brand | Rough Country |
|---|---|
| Part number | 866 |
| Position | Rear |
| Lift | 1.5 inch |
| Material | 3/8 inch plate steel |
| Sleeves | DOM tubed |
| Hardware | Grade 8 |
Vehicle fitment
Rough Country lists these shackles for the 2005-2026 Nissan Frontier in Desert Runner, LE, Nismo Off-Road, PRO-4X, PRO-X, S, SE, SL, SV and XE trims, and for the 2005-2015 Nissan Xterra in Off-Road, PRO-4X, S, SE and X trims.
The Nissan Pathfinder and the Frontier and Xterra years outside these ranges fall outside this fitment. Verify year, model and trim against your vehicle before buying.
Installation notes
The kit uses a bolt-on installation with the supplied grade 8 hardware. Work through the full steps before starting, and check the parts against your installation.
What’s included

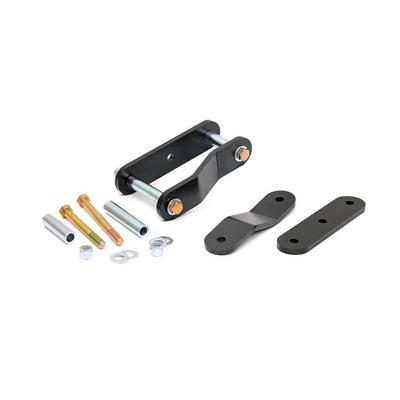

One set of lift shackles with hardware, DOM tubed sleeves and grade 8 bolts.
