Currie Front Tow Bar Shackles – CE-9035

Currie

Shop Jeep CJ7 Leaf Spring Shackle Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Currie CE-9035 front tow bar shackles for 1976-1983 Jeep CJ5, 1976-1986 Jeep CJ7 and 1981-1985 Jeep Scrambler
  • 1/4 inch thick steel side plates with a bolt-in center bar for rigidity
  • Grade 8, 1/2 inch greasable bolts and urethane bushings
  • Quick-disconnect setup for a tow bar, with attaching pins and retaining clips included
  • Supplied as a pair

Description

Overview

The Currie CE-9035 is a pair of front tow bar shackles for 1976-1983 Jeep CJ5, 1976-1986 Jeep CJ7 and 1981-1985 Jeep Scrambler models. They replace the stock front shackles with heavy duty steel units designed to take a tow bar connection.

Currie Enterprises builds each shackle with 1/4 inch thick steel side plates, Energy Suspension ‘Tough 88’ fluted urethane bushings and grade 8 greasable bolts. A bolt-in center brace adds rigidity, and the corrosion proof gold zinc finish covers the whole assembly.

Key features

  • Quick-disconnect setup for a tow bar
  • Tow bar attaching pins with retaining snap clips
  • 1/4 inch thick steel side plates
  • Grade 8, 1/2 inch greasable bolts with zerk fittings on the heads
  • Energy Suspension ‘Tough 88’ fluted urethane bushings
  • Bolt-in center brace for added rigidity
  • Corrosion proof gold zinc finish

Tow bar hookup considerations

A tow bar shackle sits at the front spring and carries a load that is much higher than normal driving, so its pins and clips see more wear during towing. The quick-disconnect design makes hookup faster, but it also means the pins must seat fully every time. Inspect the attaching pins and clips before each tow instead of assuming they are secure from the last trip.

Match the tow bar brackets to the attaching pins before buying. Mismatched pin diameters or worn bracket holes create play that grows under load. Keep the bushings greased, since dry urethane can squeak and wear unevenly when the bar is connected and disconnected often.

  • Check pin and clip wear before each tow
  • Confirm the bar brackets match the attaching pins
  • Keep the bushings greased to limit squeaks

Specifications

Brand Currie
Part number CE-9035
UPC 70000006052
Position Front
Side plates 1/4 inch thick steel
Bolts Grade 8, 1/2 inch greasable
Bushings Urethane, Energy Suspension ‘Tough 88’ fluted
Finish Corrosion proof gold zinc
Quantity Pair

Vehicle fitment

It fits the 1976-1983 Jeep CJ5 with Base, Golden Eagle, Laredo, Limited and Renegade trims, the 1976-1986 Jeep CJ7 with Base, Golden Eagle, Golden Hawk, Laredo, Limited and Renegade trims, and the 1981-1985 Jeep Scrambler with Base, Laredo, Renegade, SL and SR trims.

Jeep CJ3, CJ6 and Wrangler models are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The kit includes the tow bar attaching pins and retaining snap clips. Grease the bushings through the zerk fittings on the bolt heads after installation. Support the axle securely on stands before removing the stock shackles.

What’s included

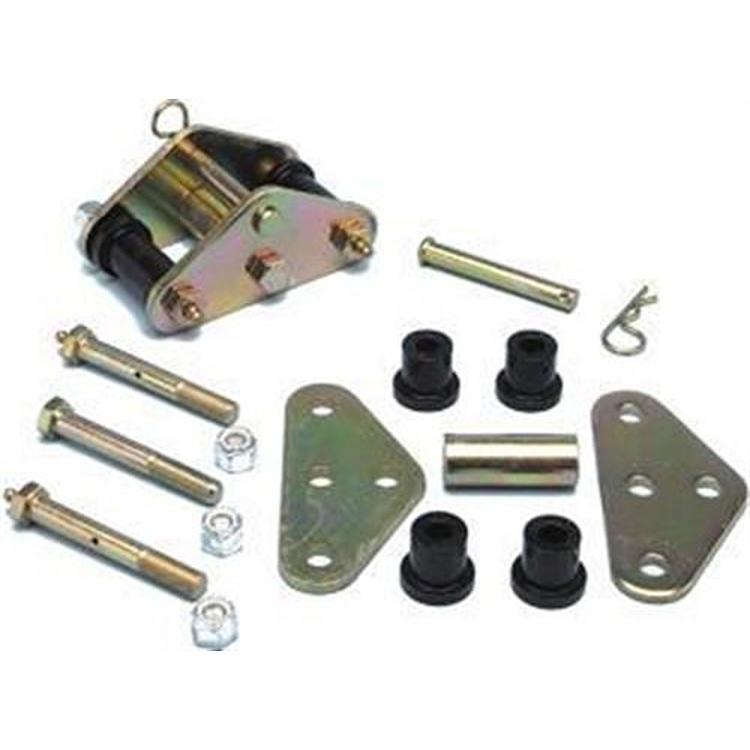

A pair of front shackles with side plates, bolts, urethane bushings and the bolt-in center brace, plus the tow bar attaching pins and retaining clips.

Not included: The tow bar itself.

SKU: CURCE-9035 Category:

Specification

Shipping weight 6.20 lbs
Package dimensions 6.40 × 6.40 × 4.80 in
brands

Fitment

VehicleYearsTrims
Jeep CJ51976–1983Base, Golden Eagle, Laredo, Limited, Renegade
Jeep CJ71976–1986Base, Golden Eagle, Golden Hawk, Laredo, Limited, Renegade
Jeep Scrambler1981–1985Base, Laredo, Renegade, SL, SR

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Currie CE-9035 fit a 1976-1986 Jeep CJ7?

Yes. It fits the 1976-1986 Jeep CJ7 in Base, Golden Eagle, Golden Hawk, Laredo, Limited and Renegade trims, along with the CJ5 and Scrambler. Confirm fit for your year, model and trim before buying.

Does the CE-9035 fit a Jeep Wrangler YJ?

No. The listed vehicles are the CJ5, CJ7 and Scrambler only, so Wrangler YJ models are not covered. Check the fitment details before choosing this tow bar shackle.

What bolts and bushings come with the CE-9035?

The shackles use Grade 8, 1/2 inch greasable bolts with zerk fittings and Energy Suspension 'Tough 88' fluted urethane bushings. A bolt-in center bar and tow bar attaching pins with retaining clips are included as well.

Is a tow bar included with CE-9035 shackles?

No. These are shackles with a quick-disconnect setup for a tow bar, and the tow bar itself is not part of the kit. The attaching pins and retaining snap clips are included.

Do tow bar shackles need extra inspection before towing?

Yes. Check the attaching pins, retaining clips and bolts for wear or looseness before each tow. A worn clip can let a pin slip out, so replace any clip that no longer holds firmly.

What should I check on the tow bar side?

Confirm the tow bar and its brackets match the attaching pins used with these shackles. Mismatched pin diameters or worn holes can cause play, so inspect them before connecting the bar.
