Overview

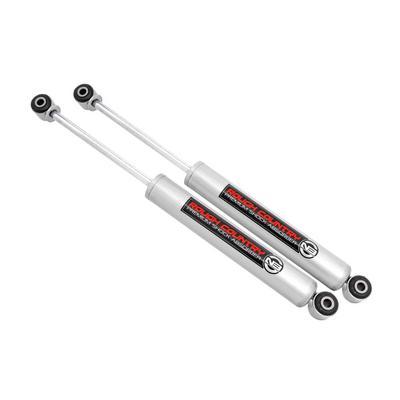

The Rough Country N3 rear shock R/C23210_I is a nitrogen-charged rear shock for 1980–1996 Ford F-150 pickups with a lift of 2.5 to 6 inches. Both mounts are eyelets, and the shock is sold as a pair.
The shock is 30.04 in extended and 17.52 in collapsed. Its 35mm piston and 54mm body work with an 18mm chrome-hardened piston rod, and the ten-stage variable valving keeps the damping adjustable across the speed range.
Key features
- Nitrogen charged shock body
- 10-stage variable valving
- 35mm piston with an 18mm chrome-hardened piston rod
- 54mm shock body designed to shed heat faster
- Rated to 36kN tensile strength
- Spring-loaded piston rod seal
- Rubber bushings for better absorption
Older F-150 suspension notes
Rear suspensions on older pickups are commonly leaf-sprung, which changes how a shock works compared with coil-sprung trucks. The shock’s job is to control spring movement, so mounting angle and eyelet alignment matter more than they do on newer designs. Because the axle moves on a leaf pack, the shock’s angle changes through its travel.
With a lift of 2.5 to 6 inches, the shock is extended further, and the driveline and axle angles can shift. Check the driveshaft angle after installation and watch for vibration. Verify that the eyelets sit square in the brackets and that bushings are not bound.
Older rubber bushings dry out and crack with age, so inspect them every time the shocks are serviced. Look for oil on the body, loose mounting hardware, and knocking over bumps. Changing both rear shocks at once keeps the ride even.
Specifications
| Brand | Rough Country |
|---|---|
| Part number | R/C23210_I |
| Product line | N3 Performance |
| Position | Rear |
| Lift height | 2.5-6 in. |
| Top mount | Eyelet |
| Bottom mount | Eyelet |
| Extended length | 30.04 in |
| Collapsed length | 17.52 in |
| Body diameter | 54mm |
| Piston | 35mm |
| Piston rod | 18mm chrome-hardened |
| Charge | Gas charged, nitrogen |
| Valving | 10-stage variable |
| Tensile strength | 36kN |
| Fluid | Military spec, rated to -40 C |
| Finish | Metallic silver paint |
| Warranty | The shock carries a 3-year warranty. |
| Sold as | Pair |
Vehicle fitment
It is made for the 1980–1996 Ford F-150 in its base, custom, Eddie Bauer, Ranger, XL, XLS and XLT models. It is sized for a lift of 2.5 to 6 inches.
The list covers 1980–1996 F-150 pickups only, so 1979 and older trucks, 1997 and newer F-150s and the Ranger are not included. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check the rear alignment and the rear ride height once the shocks are installed. Verify the eyelet mounts against your existing rear brackets before fitting.
What’s included
Sold as a pair, with one rear shock for each side of the truck.
