Overview

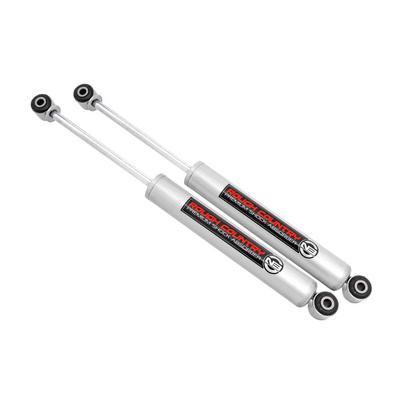

The Rough Country N3 rear shock R/C23190_A is a nitrogen-charged rear shock for 2017–2022 Ford F-250 and F-350 Super Duty trucks with a lift of up to 4.5 inches. It uses eyelets at the top and bottom and is sold as a pair.
It has a longer stroke than the N3 rear shocks sized for smaller lifts, with an extended length of 32.13 in and a collapsed length of 19.13 in. It uses the 35mm piston, 18mm chrome-hardened piston rod and 54mm body of the N3 range. Confirm your exact lift height before ordering.
Key features
- Nitrogen charged shock body
- 10-stage variable valving
- 35mm piston and 18mm chrome-hardened piston rod
- 54mm shock body designed to shed heat faster
- Rated to 36kN tensile strength
- Spring-loaded piston rod seal and rubber bushings
- Military spec damper fluid rated to -40 C
Confirming lift before buying
Rear shocks for heavy-duty trucks carry more load, so the spring rate, shock length and mounting angles need to match the lift in use. With a stroke this long, the shock covers a wider range of suspension travel, which helps when the truck articulates over uneven ground or carries a load.
Because the lift range is modest, the difference between stock height and a lifted setup can change how much shock extension is used. Check the rear driveline and pinion angle after installation, and recheck the rear alignment once the truck has settled. Upgraded front components often matter too, since a rear-only change can alter how the truck rides.
Trailer towing and payload affect shock wear more than daily driving. Look for oil on the shock body, cracked bushings, and noise over bumps. Replace shocks in pairs so the rear end rides evenly side to side.
Specifications
| Brand | Rough Country |
|---|---|
| Part number | R/C23190_A |
| Product line | N3 Performance |
| Position | Rear |
| Lift height | Up to 4.5 in. (0-4.5 in. or 2.5-4.5 in., see note) |
| Top mount | Eyelet |
| Bottom mount | Eyelet |
| Extended length | 32.13 in |
| Collapsed length | 19.13 in |
| Body diameter | 54mm |
| Piston | 35mm |
| Piston rod | 18mm chrome-hardened |
| Charge | Gas charged, nitrogen |
| Valving | 10-stage variable |
| Tensile strength | 36kN |
| Fluid | Military spec, rated to -40 C |
| Finish | Metallic silver paint |
| Warranty | The shock carries a 3-year warranty. |
| Sold as | Pair |
Vehicle fitment
It is made for the 2017–2022 Ford F-250 Super Duty and 2017–2022 Ford F-350 Super Duty in the King Ranch, Lariat, Limited, Platinum, XL and XLT models. It is sized for a lift of up to 4.5 inches.
The list covers 2017–2022 Super Duty trucks only, so 2016 and older Super Duty trucks and F-150 models are not included. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because the lift range is stated two ways, confirm your exact lift height before ordering. Check the rear alignment and ride height after installation.
What’s included
Sold as a pair, with one rear shock for each side.
