Overview

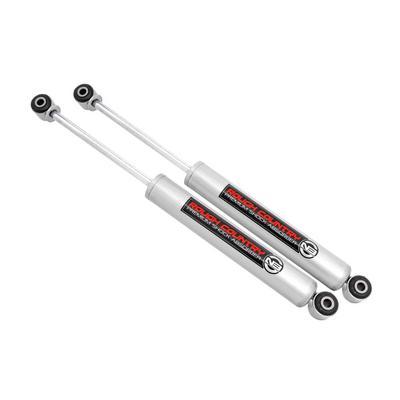

The Rough Country N3 rear shock R/C23153_A is a nitrogen-charged rear shock for 2003–2010 and 2011–2026 Ram 3500 trucks with a lift of 0 to 6 inches. It has eyelet mounts at both the top and the bottom and is sold as a pair.
The shock is a long-stroke design for trucks with a wide range of lift heights, with an extended length of 30.08 in and a collapsed length of 17.87 in. It shares the 35mm piston, 18mm chrome-hardened piston rod and 54mm shock body used across the N3 line, along with ten-stage variable valving.
Key features
- Nitrogen charged shock body
- 10-stage variable valving
- 35mm piston and 18mm chrome-hardened piston rod
- 54mm shock body for heat dissipation
- Rated to 36kN tensile strength
- Spring-loaded piston rod seal and rubber bushings
- Military spec damper fluid rated to -40 C
Long-travel rear shock care
A long-stroke rear shock carries more rod out of the body than a short unit, so the exposed rod and seal see more dirt and water. Wipe the rod after trips on muddy or sandy ground, and check the seal for seepage before it becomes a loss of damping. A clean rod helps the seal last longer.
Wide lift ranges mean the rear end sits at different heights across builds, so the eyelet mounts and axle brackets should be checked against the exact truck before the shocks are fitted. Re-check the rear alignment and ride height after installation. Heavy towing and cargo loads place extra stress on the bushings, so inspect them more often on working trucks.
- Wipe the exposed rod after muddy trips
- Check the rod seal for oil
- Inspect eyelet bushings more often under load
- Confirm bracket fit before tightening
Specifications
| Brand | Rough Country |
|---|---|
| Part number | R/C23153_A |
| Product line | N3 Performance |
| Position | Rear |
| Lift height | 0-6 in. |
| Top mount | Eyelet |
| Bottom mount | Eyelet |
| Extended length | 30.08 in |
| Collapsed length | 17.87 in |
| Body diameter | 54mm |
| Piston | 35mm |
| Piston rod | 18mm chrome-hardened |
| Charge | Gas charged, nitrogen |
| Valving | 10-stage variable |
| Tensile strength | 36kN |
| Finish | Metallic silver paint |
| Warranty | 3-year warranty |
| Sold as | Pair |
Vehicle fitment
It fits 2003–2010 Dodge Ram 3500 trucks and 2011–2020 and 2022 Ram 3500 trucks across their cab and trim packages. It is sized for a rear lift of 0 to 6 inches.
The list does not include Ram 2500 or Ram 1500 trucks, or the 2021 Ram 3500 model year. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check the rear alignment and the rear ride height once the shocks are installed. Because the lift range is wide, make sure the eyelet mounts match the axle brackets on your specific truck.
What’s included
Sold as a pair, with one rear shock for each side.
