Overview

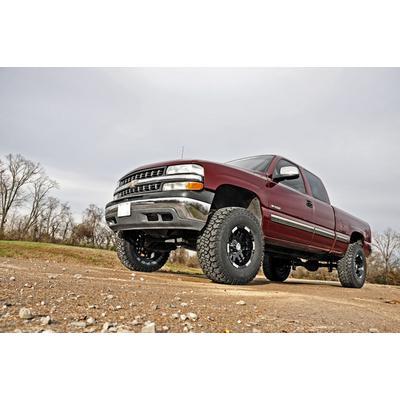

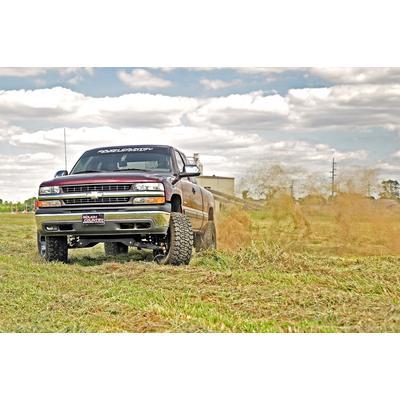

The 23420 is a 6-inch suspension lift with N3 shocks for 1999–2006 Chevrolet Silverado 1500 and GMC Sierra 1500 trucks. It is built for 2WD trucks and allows room for tires up to 35 inches. The rated lift range is 6 to 7 inches.
The kit includes fabricated rear anti-wrap blocks, which Rough Country designed with a trapezoid shape and a wider surface area to reduce axle wrap. The N3 shocks are nitrogen charged and use 10-stage velocity sensitive valving for a smooth highway ride and firm off-road control.
Key features
- 6-inch lift with a rated range of 6 to 7 inches
- N3 shocks front and rear, nitrogen charged
- 10-stage velocity sensitive valving
- Fabricated rear anti-wrap blocks with a trapezoid shape
- Heavy duty components with hammered black powder coating
Anti-wrap blocks and axle wrap
Axle wrap happens when the axle rotates under hard acceleration or braking and the springs twist. Anti-wrap blocks reduce that twisting by changing how the spring seat sits under the axle. A wider, trapezoid-shaped block spreads the load over more of the spring pad, which helps keep the axle from rotating as far under torque.
Tires larger than the stock size add load to the driveline and steering, so wheel offset and tire height should be checked against the lift. Heavier tires can also make rear springs settle over time. Check U-bolt tightness and block alignment after the first drives, and inspect the springs for cracks or uneven sag. Brake lines and the parking brake cable may need checking at the higher ride height.
Specifications
| Brand | Rough Country |
|---|---|
| Part number | 23420 |
| Lift height range | 6 to 7 inches |
| Shock series | N3 shocks |
| Front shocks | N3 shocks |
| Rear shocks | N3 shocks |
| Rear lift component | Block and U-bolt |
| Finish | Hammered black powder coat |
| Tire clearance | Up to 35 inches |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 1999–2006 Chevrolet Silverado 1500 in Base, Hybrid, LS, LT, SS, WT and Z71 trims, and the 1999–2006 GMC Sierra 1500 in Base, C3, Denali, HT, Hybrid, SL, SLE, SLT and WT trims.
It also fits the 2007 Silverado and Sierra Classic models, the 2001–2003 and 2005–2006 HD models and the 2007 HD Classic models. It is built for 2WD trucks, so confirm your drive type and your vehicle’s year, model and trim before ordering.
Installation notes
The lift changes the alignment and driveline angles, so have the alignment set and the driveline angles checked after installation.

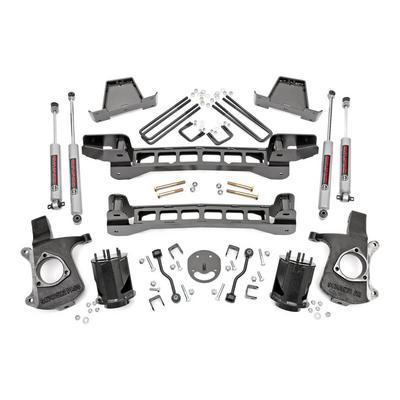

What’s included
Front lift components, fabricated rear anti-wrap blocks, U-bolts and N3 shocks front and rear.
