Overview
The Rough Country 5-inch GM suspension lift kit, part number R/C10830, fits the 2007–2013 Chevrolet Silverado 1500 and the 2007–2013 GMC Sierra 1500 in the Hybrid, LS, LT, LTZ, WT, XFE, Denali, SL, SLE and SLT versions. It is a lift and level for 2WD trucks.
The kit fits 32-inch tires on factory wheels. It includes cast lift knuckles, rear lift blocks, and the U-bolts and hardware needed for installation.
A pair of nitrogen-charged N3 shock absorbers is included, with a 54mm body and an 18mm piston.
Key features
- Cast lift knuckles
- Rear lift blocks with U-bolts
- Nitrogen-charged N3 shock absorbers
- 54mm shock body and 18mm piston
- Clearance for 32-inch tires on factory wheels
- Bolt-on installation with no special tools or welding
Alignment and tire fit
Cast lift knuckles change the angle of the front wheels, so the alignment is central to how the truck drives and wears its tires. After any knuckle change, a shop alignment restores caster and toe and helps the steering feel centered on the highway.
Rear lift blocks raise the axle on U-bolts, which means the driveline angle changes. Check the driveshaft U-joints for vibration after installation, and keep the U-bolts snug as the new hardware settles.
For 32-inch tires on factory wheels, test steering lock and suspension travel before a long trip. Look for rubbing at the inner fender, check spare tire clearance, and keep the tires balanced to avoid vibration at highway speed.
- Alignment after knuckle installation
- Retorque U-bolts after first drives
- Check tire rub at full lock
Specifications
| Brand | Rough Country |
|---|---|
| Part number | R/C10830 |
| Lift size | 5 inches |
| Knuckles | Cast lift knuckles |
| Rear lift component | Lift blocks with U-bolts |
| Shock | N3 nitrogen-charged |
| Shock body | 54mm |
| Piston | 18mm |
| Tire size | 32 inches on factory wheels |
| Drive | 2WD |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2007–2013 Chevrolet Silverado 1500 and 2007–2013 GMC Sierra 1500 in the trim levels covered by the kit.
The kit is for 2WD trucks. The 2007–2013 Suburban, Tahoe and Yukon are not covered, and 2014 and later trucks are not covered.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
This is a bolt-on installation that can be done at home without special tools or welding. Have the alignment checked after the knuckles and blocks are installed.

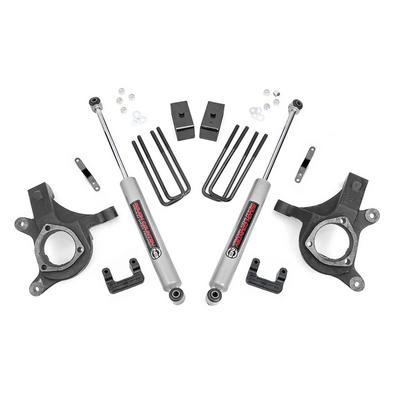

What’s included
Cast lift knuckles, rear lift blocks, U-bolts, hardware and a pair of N3 shock absorbers.
