Rough Country 6″ GM Non-Torsion Drop Suspension Lift Kit – 28020

Rough Country

$1,199.95In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 4:10 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6-inch non-torsion drop lift for 2000–2006 Chevrolet Tahoe, GMC Yukon and Cadillac Escalade
  • N3 front shocks valved to the model
  • Clearance for up to 35-inch tires
  • Front CV spacers, sway-bar links and skid plate included

Description

Overview

The Rough Country R/C28020 is a 6-inch non-torsion drop suspension lift for the 2000–2006 Chevrolet Tahoe, 2000–2006 GMC Yukon and 2002–2006 Cadillac Escalade Base. The non-torsion drop design replaces a torsion drop kit and keeps the torsion bars out of view.

The kit lifts the vehicle enough for up to 35-inch tires. It includes lifted front knuckles and rear coil springs, a full set of high-clearance crossmembers, differential drop brackets and torsion bar drop brackets, which the brand says keep the components tucked and at optimum angles.

Front N3 shocks are custom valved to the vehicle and designed for balanced performance on and off road. Front CV spacers, sway-bar links and a protective skid plate are also included.

Key features

  • Non-torsion drop design that hides the torsion bars from view
  • Lifted front knuckles
  • Rear coil springs
  • High-clearance crossmembers
  • Differential drop brackets and torsion bar drop brackets
  • Front N3 shocks, front CV spacers, sway-bar links and skid plate

Torsion bars and drop kits

A drop kit lowers the torsion bar anchor points so the bars sit at a different angle, which changes the front ride height. Because the front suspension depends on the torsion bars, the front end should be checked for correct height and alignment after any drop. Worn ball joints and a sagging front end should be addressed before a drop kit is installed, since they can make the new geometry harder to set.

Front CV angles increase when a drop is added, so the driveline should be checked for vibration after installation. Keep the skid plate and sway-bar links in good condition, and inspect the front brake lines for clearance once the truck is back on the ground.

  • Inspect ball joints before installing a drop
  • Check front CV angles after installation
  • Look for brake line clearance at full steering

Specifications

Brand Rough Country
Part number R/C28020
Lift kit 6 inches, stage 1
Drop design Non-torsion drop
Front shocks N3
Rear shocks None listed
Rear lift method Coil springs
Tire size 35 inches
Lift height range 6 to 7 inches
Shocks included Yes
Fitment type Direct fit

Vehicle fitment

Fits the 2002–2006 Cadillac Escalade Base, the 2000–2006 Chevrolet Tahoe in Base, LS, LT, Limited and Z71 versions, and the 2000–2006 GMC Yukon in Denali, SL, SLE and SLT versions. Suburban and other GM trucks are not covered, and model years before 2000 and after 2006 fall outside this fit.

Suburban and other GM trucks are not on the list. Model years before 2000 and after 2006 are not covered.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Lifted knuckles and drop brackets change the front geometry and the CV angles, so have the alignment checked after installation and confirm the front driveline angles.

What’s included

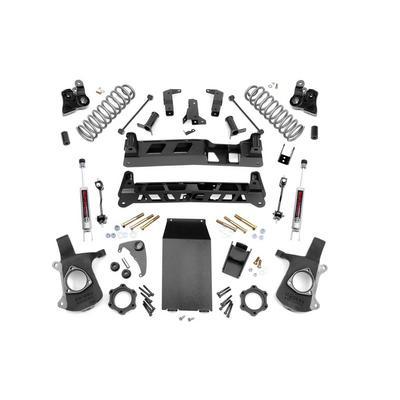

Lifted front knuckles, rear coil springs, high-clearance crossmembers, differential and torsion bar drop brackets, front N3 shocks, front CV spacers, sway-bar links and a protective skid plate.

SKU: R/C28020 Categories: ,

Fitment

VehicleYearsTrims
Cadillac Escalade2002–2006Base
Chevrolet Tahoe2000–2006Base, LS, LT, Limited, Z71
GMC Yukon2000–2006Denali, SL, SLE, SLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Rough Country R/C28020 fit a 2004 Chevrolet Tahoe?

Yes. The kit fits 2000–2006 Chevrolet Tahoe models, which includes 2004. Confirm fit for your vehicle's year, model and trim before ordering.

Does the kit include shocks at the rear?

The product fields list no rear shocks, and the front N3 shocks are the shocks included with the kit. The rear shocks are not part of the package.

Does this kit fit a Cadillac Escalade?

Yes, the 2002–2006 Escalade Base is on the list. Check the year and model on the vehicle before ordering, since the list covers only the Base version.

Can a drop kit be used on a truck with a worn front end?

It is better to repair the worn parts first. Worn ball joints, bushings or torsion bar mounts can make the new front geometry hard to set and can wear the new parts faster. Inspect the front end before ordering the kit.
