Overview
The Rough Country 6-inch Dodge Ram 1500 suspension lift kit, part number R/C30830, fits the 2009–2010 Dodge Ram 1500 in Laramie, SLT, ST, Sport, TRX and TRX4 versions, and the 2019–2024 Ram 1500 Classic in Big Horn, Express, Laramie, Lone Star, SLT, Tradesman and Warlock versions. It is designed as a lift for V8 2WD Ram 1500 trucks.
Each kit includes lifted knuckles, coil spring spacers and lifted coil springs. The brand says these provide enough ground clearance for a 37×12.50 tire on a 20-inch wheel, with a better stance and a more aggressive appearance.
The kit also comes with new control arms that use OEM-style rubber bushings. These are new parts rather than reused factory arms, and their geometry helps keep the driveshaft at a suitable angle.
Key features
- Lifted knuckles
- Coil spring spacers and lifted coil springs
- New control arms with OEM-style rubber bushings
- Premium N3 shocks with 10-stage variable valving
- 18mm spring-loaded piston rod and 54mm shock body
- Listed lift height range of 6 to 7 inches
Matching tires and alignment
Lifted coil springs and new control arms change the height and angles of the front end, so the tire and wheel combination needs a fit check once the work is done. Wider or taller tires can rub the fender edges or the inner liner when the suspension compresses over bumps or during a full steering lock. Testing steering lock and suspension travel before a long trip helps catch these problems early.
Alignment matters after any lift that changes control arm geometry. Caster, camber and toe settings can shift, and uneven tire wear often shows up within the first few thousand miles of driving. A shop with lift experience can check the setup against the new geometry and confirm the driveshaft angles.
- Check tire clearance at full steering lock
- Test suspension travel before long trips
- Align the front end after installation
- Inspect shock mounts at each service
Specifications
| Brand | Rough Country |
|---|---|
| Part number | R/C30830 |
| Lift size | 6 inches |
| Shock series | N3, nitrogen-charged |
| Shock valving | 10-stage variable |
| Piston rod | 18mm spring-loaded |
| Shock body | 54mm |
| Tensile strength | 36kN |
| Tire size | 37×12.50 on a 20-inch wheel |
| Lift height range | 6 to 7 inches |
| Fitment type | Direct fit |
Vehicle fitment
It is a direct fit for the 2009–2010 Dodge Ram 1500 and the 2019–2024 Ram 1500 Classic.
The 2011–2018 Ram 1500 and the 2019–2024 Ram 1500 models that are not Classic fall outside this kit’s fit. The kit is designed for 2WD trucks.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
New control arms and lifted coils change the alignment and the driveline angles, so have the alignment checked after the kit is installed.

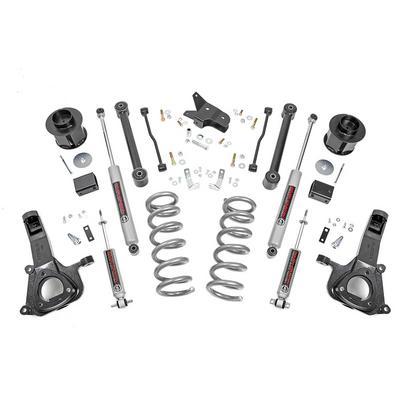

What’s included
Lifted knuckles, coil spring spacers, lifted coil springs, new control arms with OEM-style bushings and N3 shocks.
