Overview
The Rough Country 4-inch Toyota Tundra suspension lift kit, part number R/C75170, fits the 2016–2021 Toyota Tundra in the 1794 Edition, Limited, Nightshade, Platinum, SR, SR5, TRD Pro and Trail versions. It raises the truck for a higher profile and more ground clearance while setting the axle and components close to factory geometry.
The kit includes lifted knuckles, a protective skid plate, and the brackets and hardware for the lift. The beefy front crossmember has a high-clearance design, which the brand says helps the truck clear off-road obstacles without hang-ups.
The rear uses V2 monotube shocks, and the front reuses the factory shocks on the vehicle. Confirm the shock setup for your truck before ordering.
Key features
- Durable lifted knuckles
- Protective skid plate
- High-clearance front crossmember
- Block and u-bolt rear lift
- Brackets and hardware for factory-like geometry
- Listed lift height range of 4 to 5.5 inches
Rear lift and driveline care
A block and u-bolt rear lift moves the rear axle position, so the driveline angles should be checked once the truck is back on its wheels. New u-bolts and block hardware can settle under load, so recheck them after the first few drives. Look for any shift in the axle, leaf or spring seats, and address it before the rear end starts to wander or vibrate.
The high-clearance front crossmember and lifted knuckles change the front geometry, so have the front alignment checked after installation. The skid plate guards the underside of the truck, and its mounting points should be inspected after rough trail use. Reused factory front shocks may feel different once the truck is lifted, so test the ride and inspect them for leaks during regular service.
Specifications
| Brand | Rough Country |
|---|---|
| Part number | R/C75170 |
| Lift kit | 4 inches |
| Shock series | V2 Monotube |
| Front shocks | Reuse factory shocks |
| Rear shocks | V2 Monotube |
| Rear lift component | Block and u-bolt |
| Lift height range | 4 to 5.5 inches |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2016–2021 Toyota Tundra, including the 1794 Edition, Limited, Nightshade, Platinum, SR, SR5, TRD Pro and Trail versions.
Tundra model years before 2016 and after 2021, and the 2022 Tundra, are not on the list. Other Toyota models are not covered.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A block and u-bolt rear lift changes the rear axle position, so check the driveline angles after installation. Have the front alignment checked after the knuckles are installed.

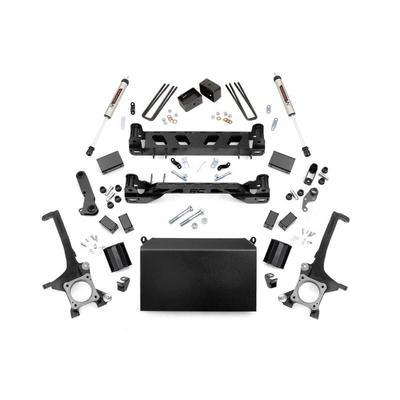

What’s included
Lifted knuckles, a skid plate, the high-clearance front crossmember, the block and u-bolt rear components, and the brackets and hardware for the kit.
Not included: the front shocks, which are reused from the vehicle.
