Overview
The Rough Country 3.5 Inch GMC Suspension Lift Kit with N3 Front Lift Struts and Forged Upper Control Arms, part number 22631, is a front and rear lift for the 2019–2022 GMC Sierra 1500. It fits the 2019–2021 Sierra 1500 in the AT4, Base, Denali, Elevation, SLE and SLT trims, and the 2022 Sierra 1500 Limited in the AT4, Denali, Elevation, Pro, SLE and SLT trims.
The front uses N3 performance lifted struts, each with a pre-loaded coil, so the factory strut does not need to be taken apart for installation. N3 shocks are fitted at the front. Confirm the rear shock model before ordering, since this kit’s rear shocks may be V2 Monotube units.
The front struts keep the factory ride feel because each strut carries a pre-loaded coil. The rear blocks and U-bolts are set up together with the struts as one front and rear package, so fit them as a set.
Key features
- N3 performance lifted struts with pre-loaded coils
- Nitrogen-charged, loaded struts that keep a factory-like ride
- Forged aluminum upper control arms
- N3 shocks listed at the front and rear
- Fabricated rear blocks
- Lifetime replacement guarantee
Front strut setup and alignment
Front struts carry the weight of the front end and control spring rate and damping, so a lifted strut changes how the truck handles at both ends. A pre-loaded coil strut keeps the spring set at a consistent height, which can make setup simpler than a field swap. Still, check that the upper mount and bearing are seated correctly before tightening the nut.
Front and rear heights should match after installation, so both ends sit level when the truck is unloaded. Check the rear block fit and the U-bolt torque once the front is complete. Alignment is needed after any suspension height change, and tire wear should be watched closely during the first weeks of driving.
- Check upper strut mount seating
- Verify level front to rear
- Align the truck after installation
- Inspect brake and steering hoses for stretch
Specifications
| Brand | Rough Country |
|---|---|
| Part number | 22631 |
| Lift | 3.5 inch |
| Lift height range | 0 to 3.5 inches |
| Front struts | N3 performance lifted struts with pre-loaded coils |
| Upper control arms | Forged aluminum |
| Front shocks | N3 |
| Rear shocks | N3 at the front; confirm the rear model before ordering. |
| Rear lift | Block and U-bolt |
Vehicle fitment
Fitment covers the 2019–2021 GMC Sierra 1500 in AT4, Base, Denali, Elevation, SLE and SLT trims, plus the 2022 Sierra 1500 Limited in AT4, Denali, Elevation, Pro, SLE and SLT trims.
Other GMC and Chevrolet models, and years outside 2019–2022, are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The pre-loaded coil struts install without taking apart the factory strut. The forged upper control arms and rear blocks belong to the same kit, so set up the front and rear together.

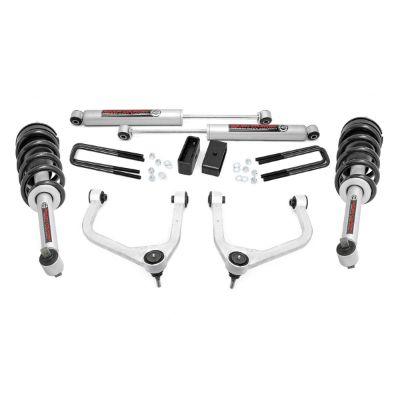

What’s included
N3 lifted front struts with pre-loaded coils, forged upper control arms, rear blocks and rear U-bolts. Confirm the rear shock model before ordering.
