Overview

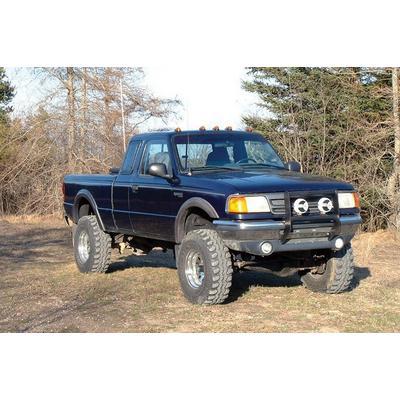

The Rough Country 4-inch Ford suspension lift kit, part number R/C48030, fits the 1983–1997 Ford Ranger in the Base, Custom, GT, S, S Plus, STX, Splash, Sport, XL, XL Sport, XLS and XLT versions. It raises the front to match the rear and adds ride height at the rear with leaf springs.
The kit uses a set of front coil springs and rear leaf springs. The brand says these add ride height without sacrificing ride quality or performance. Radius arm and I-beam drop brackets are included to keep the components at the proper angles after lifting.
A radius arm links the axle to the frame and controls the axle’s fore and aft movement. The I-beam drop brackets lower the front axle mounting points so the geometry stays close to the factory design.
Leaf springs are the rear suspension on many older trucks, while coil springs at the front are a different design, which is why this kit uses both. The kit’s listed lift height range is 4 to 5.5 inches.
Key features
- Front coil springs and rear leaf springs
- Radius arm and I-beam drop brackets
- Fabricated rear blocks
- N3 shocks at the front and rear
- Fits up to 31×10.5 tires with proper wheel backspacing
- Listed lift height range of 4 to 5.5 inches
Leaf springs and coil springs
Ranger suspensions often pair front coil springs with rear leaf springs, a combination common in older mid-size trucks. The front coils carry weight differently from torsion bars or leaves, so the lift changes how the truck handles at both ends. Understanding the layout helps when comparing parts or planning future upgrades.
Leaf springs need regular inspection. Look for broken or cracked leaves, sagging at the spring pack, and wear at the shackles and bushings. Radius arms and I-beam drop brackets carry load through the axle and frame, so check their bolts and bushings during service. Loose hardware often shows up as clunks over bumps.
Shock damping complements the springs. Quality shocks smooth out a truck with a higher ride height, but they work best when the springs and brackets are sound. Replace worn parts as the wear shows, and check driveline angles any time the rear height changes.
- Inspect leaf springs for cracks
- Check radius arm bushings at each service
- Recheck driveline angles after rear height changes
Specifications
| Brand | Rough Country |
|---|---|
| Part number | R/C48030 |
| Lift kit | 4 inches |
| Front spring | Coil |
| Rear spring | Leaf |
| Shock series | N3, 10-stage variable valving, nitrogen charged |
| Piston rod | 18mm spring-loaded |
| Shock body | 54mm |
| Tire size | 31×10.5 with proper wheel backspacing |
| Shocks included | Yes |
| Lift height range | 4 to 5.5 inches |
| Fitment type | Direct fit |
Vehicle fitment
It is built for the 1983–1997 Ford Ranger. The F-150 uses other Rough Country kits, so match the kit to your truck before ordering.
Ford Ranger model years after 1997 and other Ford trucks are not on the list. The F-150 uses other Rough Country kits.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Lifting the front and rear of a Ranger changes the driveline angles and the alignment. Have the alignment checked after installation and check the driveline angles.

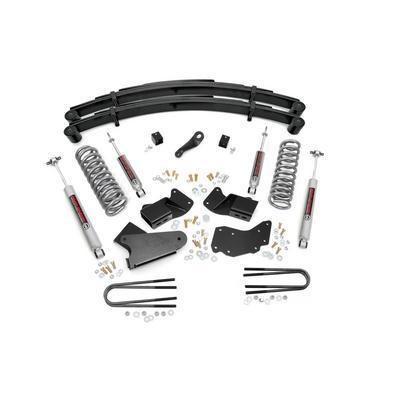

What’s included
Front coil springs, rear leaf springs, radius arm and I-beam drop brackets, fabricated rear blocks and N3 front and rear shocks.
