Overview
The Rough Country 4-inch Jeep suspension lift kit with N3 shocks, part number R/C68130, fits the 2007–2018 Jeep Wrangler (JK) Unlimited four-door models and the 2018 Jeep Wrangler (JL) Unlimited Moab. It gives the Jeep lifted coil springs with coil correction plates for lift height and vibration dampening.
The kit includes N3 shocks with 10-stage variable valving, high-pressure nitrogen charge, an 18mm spring-loaded piston rod and a 54mm shock body. The shocks are rated at up to 36kN tensile strength and have natural rubber bushings and a metallic silver finish.
Coil correction plates position the coil correctly when the coil is raised, so the lifted spring keeps its proper seat. Lifted coils raise the body without changing the basic function of the spring.
Key features
- Lifted coil springs and coil correction plates
- N3 shocks at the front and rear
- 10-stage variable valving and nitrogen charge
- 18mm spring-loaded piston rod and 54mm shock body
- Tensile strength rated at up to 36kN
- Metallic silver paint on the shocks
Driveline and exhaust clearance
Lifting a Wrangler Unlimited changes the angle of the driveshafts and the position of the transfer case, so the drivetrain works differently at the new height. Angles that are too steep cause vibration and wear in the universal joints. Checking the angles after installation helps catch problems before they become noise or driveline damage.

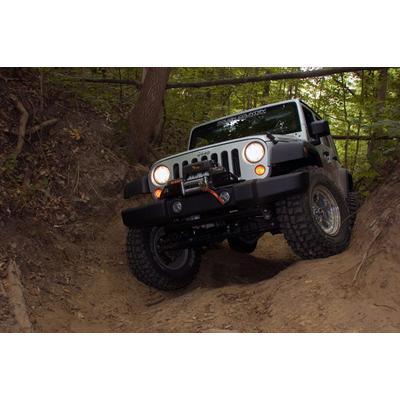

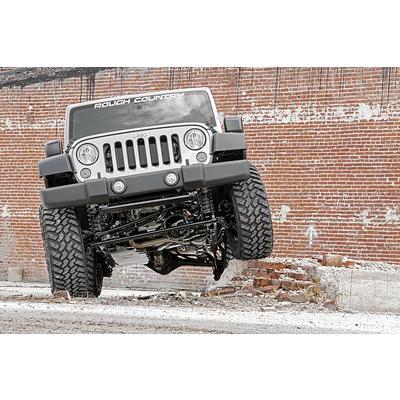

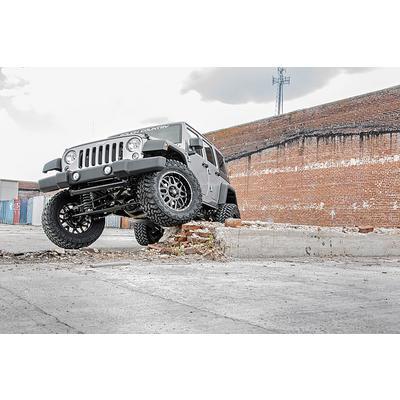

On the trail, a lifted Wrangler flexes more, and the front sway bar links become a limiting factor when disconnected. Articulation adds stress to the front driveshaft and, on some automatics, the transmission pan. Slowing down through rough sections and keeping throttle smooth reduces strain on those parts.
Coil correction plates keep the lifted spring seated correctly, and they should be inspected for movement at each service. Retighten any loose coil hardware before a longer trip, and check the shocks for leaks because the longer travel works them harder.
- Check driveline angles after installation
- Inspect coil correction plates at service
- Recheck exhaust clearance after any change
Specifications
| Brand | Rough Country |
|---|---|
| Part number | R/C68130 |
| Lift kit | 4 inches |
| Shock series | N3 |
| Valving | 10-stage variable |
| Piston rod | 18mm spring-loaded |
| Shock body | 54mm |
| Tensile strength | 36kN |
| Bushings | Natural rubber |
| Finish | Metallic silver |
| Lift height range | 4 to 5.5 inches |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2007–2018 Jeep Wrangler (JK) Unlimited four-door models, including 70th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X versions, and the 2018 Jeep Wrangler (JL) Unlimited Moab.
Two-door Wrangler models are not covered. Other Wrangler JL model years and trims are not on the list.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Models from 2012 to 2018 require exhaust modifications to clear the front driveshaft. Wheel spacers of 1.5 inches are needed if the truck keeps its stock wheels. On automatic models, the front driveshaft can touch the transmission pan during heavy articulation with the front sway bar links disconnected, and the brand offers a smaller-diameter aftermarket driveshaft for that case.

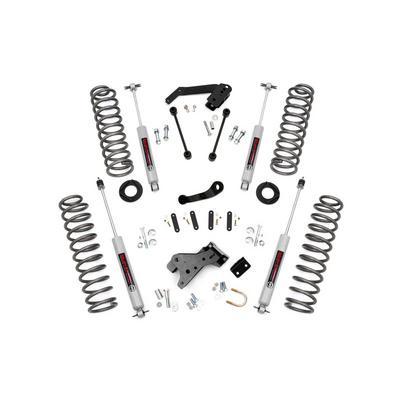

What’s included
Lifted coil springs, coil correction plates and four N3 shocks with natural rubber bushings and a metallic silver finish.
