Overview
The Rough Country 3-inch Ford suspension lift kit, part number R/C509.20, is a direct fit kit for the 2005–2007 Ford F-250 Super Duty and F-350 Super Duty. It uses lift blocks with u-bolts at the rear and includes N3 shocks at the front and rear.
The recommended tire size is 35×12.50, and the brand recommends factory wheel backspacing. The kit is meant to give a lift for larger tires on these heavy-duty trucks.
Key features
- 3-inch lift for Super Duty trucks
- Lift blocks with u-bolts at the rear
- N3 shocks at the front and rear
- Recommended tire size 35×12.50
- Recommended wheel backspacing is factory
Rear axle and u-bolts
Lift blocks raise the rear axle by sitting between the leaf spring and the axle. They change the rear axle position and the driveline angle, so the u-bolts should be re-torqued after the first few drives. Loose u-bolts can let the axle shift on the block, which causes noise and uneven wear on the rear tires.
Heavy-duty Super Duty trucks carry substantial loads, so the rear spring and shock setup should be kept in good condition. Check the leaf spring pack, the shock mounts and the bump stops for wear. Wheel backspacing and tire width should be checked before running larger tires, because the rear fender and inner liner can rub under load.
- Re-torque u-bolts after the first few drives
- Inspect bump stops for cracking
- Check driveline angles after the lift
Specifications
| Brand | Rough Country |
|---|---|
| Part number | R/C509.20 |
| Lift size | 3 inches |
| Shock series | N3 |
| Rear lift component | Block and u-bolt |
| Recommended tire size | 35×12.50 |
| Recommended wheel backspacing | Factory |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2005–2007 Ford F-250 Super Duty and 2005–2007 Ford F-350 Super Duty. The 2017–2022 F-250 Super Duty uses a different kit, R/C50220.
The 2017–2022 F-250 Super Duty uses a different kit, R/C50220. Other Ford models and Super Duty years outside 2005–2007 are not on the list.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Lift blocks change the rear axle position and the driveline angle. Check the driveline angles after installation.

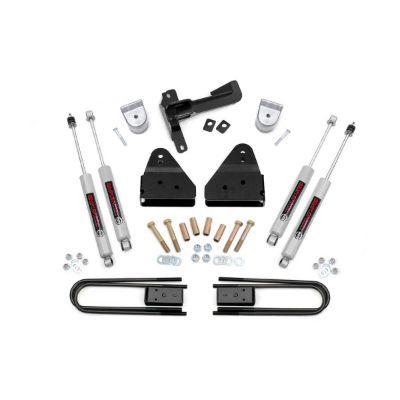

What’s included
Lift blocks, u-bolts and N3 front and rear shocks.
