Overview
The Rough Country 3.5-inch Toyota Tundra suspension lift kit, part number R/C70300, fits the 2022 Toyota Tundra in the 1794 Edition, Capstone, Limited, Platinum, SR, SR5 and TRD Pro versions. It lifts and levels the truck and accommodates tires up to 35 inches.
The kit uses fabricated steel upper control arms with Clevite rubber bushings, which make alignment adjustments easier. The arm geometry is set to keep the ball joint at workable angles after lifting, which helps reduce stress on the joint. The kit includes a rear spacer. No front or rear shocks are included.
Upper control arms link the frame to the steering knuckle, so their geometry sets the top of the front wheel alignment. Fabricated steel is formed from plate rather than cast, which is why the brand describes these arms that way. The Clevite bushings sit where the arm meets the frame.
Key features
- Fabricated steel upper control arms
- Clevite rubber bushings for durability
- Ball joint range of motion designed for the lifted geometry
- 100% bolt-on installation
- All components needed for installation are included
- Listed lift height range of 0 to 3.5 inches
Before you buy
Upper control arms set the top of the front alignment, so a lift with new arms needs a careful alignment check once the truck is back on the ground. Pay attention to the Clevite bushings as well, since they sit where the arm meets the frame and take repeated loading on rough roads and trails. Worn bushings can change steering feel and tire wear, so look for cracking, torn rubber or looseness during regular service.
Think about tires and the rest of the front end before ordering. Larger tires put more load on the joints and steering parts, so check tie rods, ball joints and bump stops for wear. Shocks are not included with this kit, so inspect the existing units for leaks and weak damping. Replacing them alongside the lift can give the truck a more consistent ride.
Specifications
| Brand | Rough Country |
|---|---|
| Part number | R/C70300 |
| Lift size | 3.5 inches |
| Upper control arms | Fabricated steel, with Clevite rubber bushings |
| Rear lift method | Block or spacer |
| Rear lift component | Spacer |
| Tire size | 35 inches |
| Shocks included | No |
| Lift height range | 0 to 3.5 inches |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2022 Toyota Tundra, including the 1794 Edition, Capstone, Limited, Platinum, SR, SR5 and TRD Pro versions.
Tundra model years before 2022 and other Toyota models are not on the list.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The brand estimates about 4 to 6 hours for the install, which can be done at home with standard tools. Have the alignment checked afterward, since the upper control arms change the front geometry.

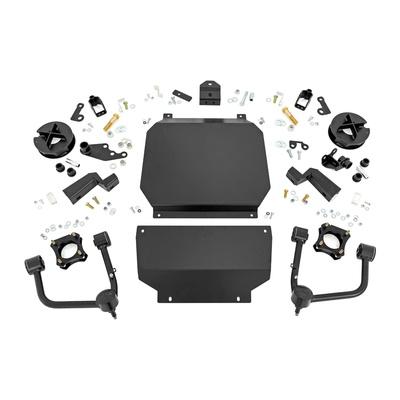

What’s included
Fabricated steel upper control arms with Clevite bushings, the rear spacer components and the hardware for installation.
Not included: shock absorbers.
