Overview
The Rough Country 12130 is a 3.5-inch steering knuckle lift with N3 rear shocks for the 2014–2018 Chevrolet Silverado 1500 and GMC Sierra 1500. Lifted knuckles replace the factory knuckles, and the rear is raised with fabricated blocks and U-bolts. The rated lift range is 0 to 3.5 inches.
Lifted knuckles keep the CV boots clear of the lower arms, a problem that kits which only swap the upper control arms can run into. The knuckle design supports a better upper ball joint angle and ride quality. The N3 rear shocks use 10-stage variable valving and are high-pressure nitrogen charged. The fabricated rear blocks are designed to resist damage from the environment better than cast blocks and offer a longer lifespan.
Key features
- Lifted steering knuckles instead of upper control arm replacement
- Keeps CV boots clear of the lower arms
- 10-stage variable valving N3 rear shocks
- High-pressure nitrogen charged shocks
- Fabricated rear blocks designed to resist damage better than cast blocks

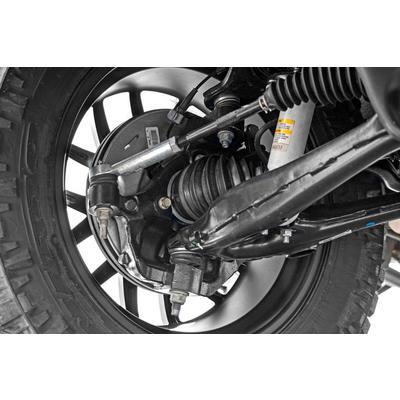

Steering knuckles and driveline
Swapping the steering knuckles changes the front geometry in a way that differs from a simple upper arm swap. The knuckle sets the position of the wheel, the hub and the ball joints, so the front end should be checked for steering feel and tire wear after the work is complete. A knuckle lift is often chosen when the owner wants the CV boots and lower arms to stay clear through full articulation.
Raising the rear with fabricated blocks changes the driveline angle, which can cause vibration if left uncorrected. Inspect the driveline joints and the U-bolts after the first few drives, and look for leaks at the rear shock seals. Because the truck rides differently after a lift, it is worth checking the tire pressures and wheel alignment once the setup has settled.
- Check alignment after the knuckles are installed
- Inspect driveline joints after the first drives
- Look for rear shock seal leaks
Specifications
| Brand | Rough Country |
|---|---|
| Part number | 12130 |
| Lift height range | 0 to 3.5 inches |
| Front lift | Lifted steering knuckles |
| Front shocks | Not included |
| Rear shocks | N3 shocks, 10-stage variable valving, nitrogen charged |
| Rear lift component | Fabricated blocks and U-bolts |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2014–2018 Chevrolet Silverado 1500, including Custom, High Country, LS, LT, LTZ, SSV and WT trims, and the 2014–2018 GMC Sierra 1500, including Base, Denali, SLE and SLT trims.
The list does not cover the 2013 and 2019 trucks or the 2500 and 3500 series. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Replacing the steering knuckles changes the front geometry and the rear lift changes the driveline angle, so have the alignment and driveline angles checked after installation.
What’s included

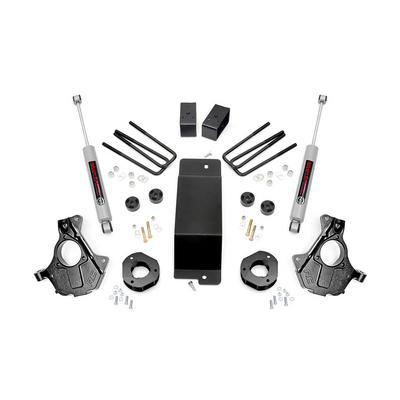

Lifted steering knuckles, N3 rear shocks, fabricated rear blocks and U-bolts.
The kit includes a lifetime replacement guarantee.
