RockJock Narrow Forged Johnny Joint – CE-9112NL-13

RockJock 4x4

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • RockJock 4×4 R/JCE-9112NL-13, a narrow forged Johnny Joint in left hand thread
  • 2 1/4 inches of 1-14 left hand threads on the shank
  • .5625-inch thru bolt hole for a 14mm bolt
  • 1.600-inch mounting width and greaseable outer shell
  • No vehicle named; for custom arm builds

Description

Overview

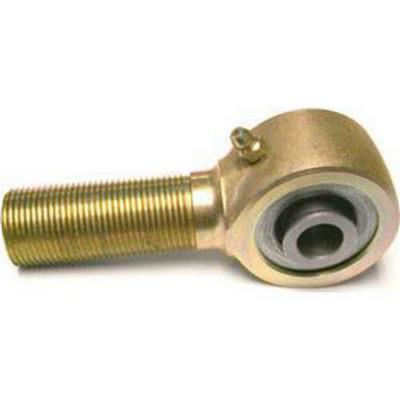

The RockJock 4×4 CE-9112NL-13 (part number R/JCE-9112NL-13) is a narrow 2-inch forged Johnny Joint rod end in a left hand thread model, with 2 1/4 inches of 1-14 left hand threads on the shank. RockJock first designed the narrow joint for its JK front and rear trac bars, also called track bars, and now offers it for universal custom builds.

The thru bolt hole is .5625 inch, for use with a 14mm bolt, and the mounting width is 1.600 inches. Greasing is through the outer shell, and the finish is gold zinc plating.

Key features

  • Left hand 1-14 threads
  • .5625-inch thru bolt hole for a 14mm bolt
  • 1.600-inch mounting width
  • Greaseable through the outer shell
  • Gold zinc plating

Left hand thread considerations

Left hand threads are used where a link has to unscrew on the same side as its opposite right hand partner, so both ends can be adjusted in matching directions. Before cutting tube or ordering a second joint, confirm which end of the link needs left hand threads, because a mismatched pair will not adjust correctly.

Left hand shanks use the same grease and inspection routine as right hand joints, though thread engagement should be checked at both ends each time the link is adjusted. Use a bolt that matches the thru bolt hole and a jam nut that matches the shank, and tighten the assembly without overstressing the threads.

  • Confirm left and right thread pairs before cutting tube
  • Recheck jam nut tightness after the first trail runs
  • Keep the grease fitting accessible when mounting

Specifications

Brand RockJock 4×4
Part number R/JCE-9112NL-13
Body diameter 2 inches
Shank 1-14, left hand, 2 1/4 inches of threads
Mounting width 1.600 inches
Thru bolt hole .5625 inch, for a 14mm bolt
Greasing Through the outer shell
Finish Gold zinc plating

Vehicle fitment

No vehicle is named. The narrow design originated with JK front and rear trac bars, and it now serves custom arm builders.

Compare the mounting width and thread direction with the arm you are building. Check fit against your vehicle’s year, model and trim before ordering.

Installation notes

The thru bolt hole is sized for a 14mm bolt, so choose a bolt that matches that size and the left hand thread of the shank.

What’s included

The joint is supplied as a finished unit.

Not included: Jam nuts are not included, so obtain them separately for the left hand shank.

Questions & Answers

Is the CE-9112NL-13 a left hand thread joint?

Yes. The shank has 2 1/4 inches of 1-14 left hand threads. The part number is R/JCE-9112NL-13, from RockJock 4x4, and it is a narrow forged Johnny Joint.

What thru bolt size does it take?

The thru bolt hole measures .5625 inch and is sized for a 14mm bolt. The mounting width is 1.600 inches.

Is it designed for a specific vehicle?

The narrow design was first made for JK front and rear trac bars and now serves universal custom builds. No year, make, model or trim is named for it.

Can it be greased?

Yes. The joint is greasable through the outer shell, and its finish is gold zinc plating. Jam nuts are not included, so plan to source them.

What should I check when a left hand joint is paired with a right hand one?

Check that the two threads run in opposite directions and that the link can be turned in both directions with the same effort. Mark the tube ends during fabrication so the joints go into the correct sides when the link is assembled.

Does a left hand joint need different grease?

No. The same grease can be used for left and right hand joints. Apply it through the outer shell fitting and check it at regular intervals, especially after water or dust exposure on the trail.
