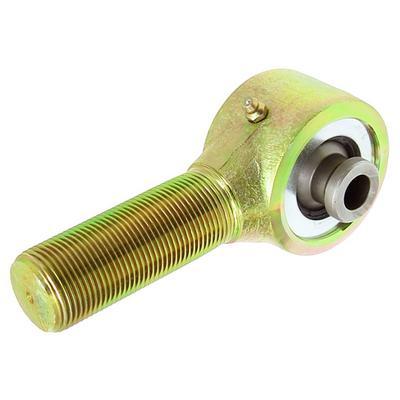

RockJock Narrow 2.5 Inch Forged Johnny Joint, 1.25″-12 Left Hand Thread Shank, 2.365 x 0.5625 Ball – CE-9114NL-14

RockJock 4x4

$71.96In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 19, 2026 12:50 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • RockJock 4×4 R/JCE-9114NL-14, a narrow forged Johnny Joint
  • 1 1/4-inch-12 left hand shank with 2 1/4 inches of threads
  • 40 degrees of movement in any direction
  • 2.365-inch offset ball with .562-inch thru bolt hole
  • Universal fit; no vehicle named

Description

Overview

The RockJock 4×4 CE-9114NL-14 (part number R/JCE-9114NL-14) is a narrow forged Johnny Joint rod end with a 1.25-12 left hand shank and a 2.365-inch offset ball. Its fitment is universal, so it is meant for custom arm builders rather than one named vehicle.

The narrow joint gives 40 degrees of unrestricted movement in any direction, compared with 22 degrees on a common heim joint. A urethane bushing encases the inner ball, adding cushioning that a heim joint does not offer.

Key features

  • 40 degrees of movement in any direction
  • Urethane bushing encases the inner ball
  • Cross-drilled, heat-treated center ball
  • Two heavy duty heat-treated side washers with a snap ring
  • Zerk fitting for greasing and gold zinc plating

Left hand thread considerations

A left hand stud tightens opposite to standard bolts, so it must be turned in the direction that matches the arm’s threaded bore. Rotate the joint slowly and confirm it moves toward the arm rather than away from it. Using the wrong turning direction can loosen the joint or damage the threads, so mark the turning direction on the arm to avoid mistakes during assembly.

Narrow joints leave little room for error in arm geometry, so measure the offset ball and mounting width before welding or drilling. Keep the zerk fitting accessible after the arm is finished, so the joint can be greased without disassembly. Inspect the threads and the side washers periodically, and replace any part that shows wear or damage.

  • Mark turning direction before assembly
  • Leave room to reach the zerk fitting
  • Check side washers at each service

Specifications

Brand RockJock 4×4
Part number R/JCE-9114NL-14
Joint diameter 2 1/2 inches
Shank 1 1/4-inch-12, left hand, 2 1/4 inches of threads
Mounting width 2.365 inches (offset ball)
Thru bolt hole .562 inch
Movement 40 degrees in any direction
Retention Two heat-treated side washers and a snap ring
Greasing Zerk fitting
Finish Gold zinc plating

Vehicle fitment

It is intended for custom suspension builds, and its universal fit lets you match the mounting width and thread to your own arm design.

Confirm your vehicle’s year, model and trim before ordering, since the joint is not tied to a particular vehicle.

Installation notes

Grease the joint through the zerk fitting, and match the thru bolt to the .562-inch hole. The thread is left hand, so confirm the arm is built to receive a left hand shank.

What’s included

The finished joint has its internals held in place by two side washers and a snap ring.

Not included: the arm or tubing the joint is installed in.

Questions & Answers

What thread is on the CE-9114NL-14 shank?

The shank is 1 1/4-inch-12 left hand, with 2 1/4 inches of threads. This is the narrow left hand version, part number R/JCE-9114NL-14, from RockJock 4x4.

Does it fit a specific Jeep or truck?

No vehicle is named. It is a universal fit joint for custom suspension builds, so confirm the arm and mounting width before using it.

How much movement does this joint allow?

It allows 40 degrees of movement in any direction, compared with 22 degrees on a common heim joint. The offset ball has a 2.365-inch mounting width, and the urethane bushing adds cushioning.

Is the joint greaseable?

Yes. A zerk fitting handles greasing, and the joint is finished in gold zinc plating. The thru bolt hole is .562 inch for the bolt used to mount it.

How often should the zerk fitting be used?

Grease the joint through its zerk fitting at setup and then periodically, especially after trail use or water crossings. Work the joint through its movement range while pumping grease so fresh lubricant reaches the ball.
