RockJock Narrow 2″ Forged Johnny Joint with 3/4″ LH Thread (2.000″ x .500″ Ball) – CE-9112N75L-12

RockJock 4x4

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • RockJock 4×4 CE-9112N75L-12 narrow 2″ forged male Johnny Joint rod end
  • 3/4″-16 left hand threads, 2 1/4″ of thread length on the shank
  • .500″ thru bolt hole and 2.000″ mounting width
  • Greasable through the outer shell
  • Universal fit; confirm the 2.000 inch mounting width before ordering

Description

Overview

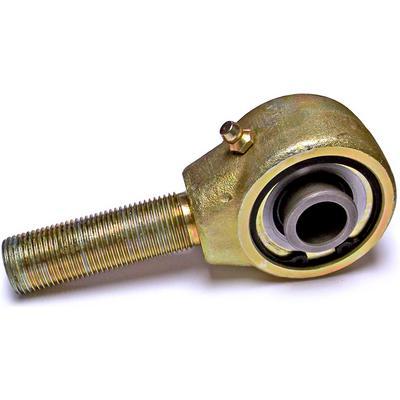

The RockJock 4×4 CE-9112N75L-12 is a narrow 2″ forged male Johnny Joint rod end with 3/4″-16 left hand threads on the shank. It accepts Johnny Joint internals made for this narrow joint and is intended for custom universal applications.

The 2.000″ mounting width and .500″ thru bolt hole define how it mounts, so measure your joint points before ordering. The joint is finished in gold zinc plating and is greasable through its outer shell.

Key features

  • Male rod end style forging in a narrow 2″ body
  • 3/4″-16 left hand threads with 2 1/4″ of thread length on the shank
  • .500″ thru bolt hole and 2.000″ mounting width
  • Greasable through the outer shell
  • Accepts Johnny Joint internals unique to this narrow joint
  • Gold zinc plating finish

Left hand threads and jam nuts

Left hand threads change how a rod end is assembled. The nut tightens in the opposite direction from the usual right hand thread, so confirm the thread direction on the shank and the nut before putting a wrench to either part. Mixing directions is an easy mistake when a build has many similar parts.

A narrow body leaves less room for error. With a 2.000 inch mounting width, the joint has to sit square between the mounting points or it will bind as the suspension moves. Set the link length first, then fit the joint so the ball can articulate evenly through its travel.

Grease through the outer shell regularly, since the grease point is the only route to the bearing surfaces. Wipe the fitting before each pump. Inspect the shank threads when the joint is off the vehicle, and replace the joint if the threads show damage or the ball has play.

  • Confirm thread direction on shank and nut
  • Set link length before final assembly
  • Keep the grease point clear after installation
  • Inspect threads when the joint is off the vehicle

Specifications

Brand RockJock 4×4
Part number R/JCE-9112N75L-12
Style Narrow 2″ forged male Johnny Joint rod end
Shank thread 3/4″-16 left hand, 2 1/4″ length
Ball 2.000″ x .500″
Mounting width 2.000″
Thru bolt hole .500″
Lubrication Greasable through the outer shell
Finish Gold zinc plating

Vehicle fitment

This part is universal fit and is not sized for one vehicle. Compatibility depends on your own axle, link and mounting dimensions.

No make, model or year applies to this joint. Before ordering, check the 2.000 inch mounting width and .500 inch thru bolt hole against your build.

Installation notes

The shank uses left hand threads, so match the thread direction and size to your tube or bar before assembly. Keep the grease point on the outer shell accessible after installation.

What’s included

The rod end is the joint itself. Check the package contents against your installation before starting.

Not included: jam nuts. RockJock 4×4 refers to jam nut CE-9112LJN for these units as a separate item.

Questions & Answers

What is the RockJock 4x4 CE-9112N75L-12?

It is a narrow 2" forged male Johnny Joint rod end with 3/4"-16 left hand threads, a .500" thru bolt hole, a 2.000" mounting width and gold zinc plating. The part number is R/JCE-9112N75L-12.

Does this joint fit a specific vehicle?

It is universal fit for custom builds and is not built for one vehicle. Measure the 2.000 inch mounting width and link size against your own vehicle before buying.

Which jam nut goes with this joint?

RockJock 4x4 refers to jam nut CE-9112LJN for these units. Check that its thread matches the left hand 3/4"-16 shank before installing the joint on your tube or bar.

Can this rod end be greased?

Yes. The joint is greasable through its outer shell, so the grease point is on the housing and remains reachable once the rod end is installed in your build.

Does a narrow Johnny Joint need the same care as a standard one?

Yes. It needs the same routine care: regular greasing, a check for play after trail runs and an inspection of the threads and nut. Because the body is narrow, pay extra attention to alignment, since a joint that sits off-square wears unevenly and can bind.
