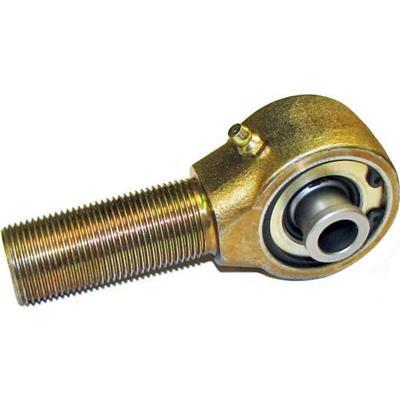

RockJock Narrow Forged Johnny Joint – CE-9112N-12

RockJock 4x4

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • RockJock 4×4 R/JCE-9112N-12, a narrow forged Johnny Joint rod end
  • 2-inch diameter body with 2 1/4 inches of 1-14 right hand threads
  • .500-inch thru bolt hole and 2-inch mounting width
  • 40 degrees of movement in any direction
  • Universal fit for custom builds

Description

Overview

The RockJock 4×4 CE-9112N-12 (part number R/JCE-9112N-12) is a narrow forged Johnny Joint rod end, 2 inches in diameter, with a 1-14 right hand shank and a 2-inch mounting width ball. It is universal fit for custom builders.

RockJock’s copy gives 40 degrees of movement in any direction, compared with 22 degrees for a common heim joint. High-density urethane encases the inner ball, the center balls are cross-drilled for thru-bolt lubrication, and two heavy duty side washers with a snap ring retain the internals.

Key features

  • 2-inch diameter forged body
  • 2 1/4 inches of 1-14 right hand threads
  • .500-inch thru bolt hole
  • Zerk fitting for external greasing
  • Gold zinc plating

Fit checks for custom builds

Custom arms need careful planning around the joint’s mounting width, thread size, and bolt hole. Measure the arm bore and the bolt diameter before cutting or welding, and make a test fit with the joint before final assembly. A joint that is slightly out of alignment will bind under load and can wear the ball and bushing faster than expected.

Choose a thru bolt that fits the hole snugly and is strong enough for the loads the arm will carry. Make sure the joint can articulate through its full range without contacting the frame, the tire, or other linkage. Once the arm is in use, check the retaining washers, snap ring, and zerk fitting regularly, since these parts keep the joint working as intended.

  • Test fit before final welds or bolts
  • Confirm full articulation clearance
  • Inspect retainers and zerk at each service

Specifications

Brand RockJock 4×4
Part number R/JCE-9112N-12
Body diameter 2 inches
Shank 1-14, right hand, 2 1/4 inches of threads
Mounting width 2 inches (ball)
Thru bolt hole .500 inch
Movement 40 degrees in any direction
Retention Two heavy duty heat-treated side washers and a snap ring
Greasing Zerk fitting
Finish Gold zinc plating

Vehicle fitment

No vehicle is named, and the joint is presented for custom suspension linkage rather than a specific truck or Jeep.

Confirm your vehicle’s year, model and trim before ordering. Compare the .500-inch thru bolt hole and 2-inch mounting width with your arm before assembly.

Installation notes

Grease the joint through its zerk fitting, and choose a thru bolt that suits the .500-inch hole.

What’s included

The finished joint comes with its retaining washers and snap ring.

Not included: the arm or bolts the joint mounts with.

Questions & Answers

What vehicle is the CE-9112N-12 for?

No vehicle is named, so confirm the arm design and mounting width before use, and check your vehicle's year, model and trim before ordering.

What is the shank thread?

The shank has 2 1/4 inches of 1-14 right hand threads. The joint body is 2 inches in diameter. Part number R/JCE-9112N-12 from RockJock 4x4.

Does it articulate further than a standard heim joint?

RockJock says 40 degrees of unrestricted movement in any direction, compared with 22 degrees on a common heim joint. The urethane bushing around the inner ball adds cushioning.

Is the joint greaseable?

Yes. A zerk fitting provides external greasing, and the center ball is cross-drilled for thru-bolt lubrication. The finish is gold zinc plating.

How do I keep the retaining washers secure?

Check the side washers and snap ring at setup and during routine inspection. If the snap ring shows wear or the washers shift, replace the affected parts rather than running the joint loose, since the internals depend on those retainers to stay in place.
