RockJock 2 Inch Forged Johnny Joint with 3/4 Inch RH Threaded Stud – CE-9112SP

RockJock 4x4

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Universal fit 2 inch forged Johnny Joint with a right hand 3/4-16 threaded stud
  • Part number R/JCE-9112SP for RockJock adjustable upper control arms and custom builds
  • 2 inch mounting width and 7/16-inch thru bolt hole
  • Greaseable through the outer shell, finished in gold zinc plating

Description

Overview

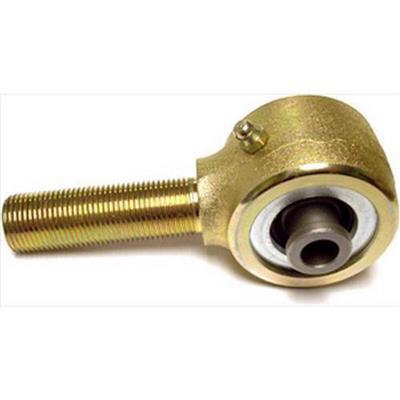

RockJock 4×4’s R/JCE-9112SP is a forged 2 inch Johnny Joint with a right hand 3/4-16 threaded stud. It uses a male rod-end forging and can house the internals of the company’s CE-9112 2 inch Johnny Joints. Fitment is universal, so it suits RockJock adjustable upper control arms and arms a builder fabricates for universal use.

The joint can be greased through its outer shell and is serviceable. It has a gold zinc plated finish, and each unit is one joint with a right hand thread.

Key features

  • Male rod-end forging that takes RockJock’s 2 inch CE-9112 Johnny Joint internals.
  • 2 inch mounting width for arm designs using that spacing.
  • 7/16-inch thru bolt hole for mounting.
  • 2 1/4 inch of 3/4-16 right hand threads on the shank.
  • Greaseable through the outer shell and serviceable.
  • Works with RockJock 7/16-inch greaseable thru bolts, available separately.
  • Gold zinc plated finish.

Right hand thread care

Right hand threads tighten in the same direction as a standard bolt, which makes them the familiar choice for most arm assemblies. When threading the stud into the arm, turn it slowly by hand first so the threads start cleanly, then tighten to a snug fit. Cross-threading can damage the stud and the arm, and a damaged thread is hard to repair once the joint is in service.

Before final assembly, clean both the stud and the adjuster bore of dirt and old grease. A light coat of anti-seize can help with future removal, though the joint should still be tightened fully before loading. Keep an eye on the threads over time, since repeated adjustment can wear them and cause the stud to slip. If the stud moves or the threads look rounded, stop using the joint and inspect the arm.

  • Start threads by hand
  • Clean the bore before assembly
  • Inspect the threads after adjustments

Specifications

Brand RockJock 4×4
Part number R/JCE-9112SP
Joint type Finished forged Johnny Joint, male rod-end style
Mounting width 2 inch
Thru bolt hole 7/16 inch
Shank thread 3/4-16, right hand, 2 1/4 inch of threads
Maintenance Serviceable, greaseable through the outer shell
Finish Gold zinc plating
Fitment Universal fit
Compatible internals RockJock CE-9112 2 inch Johnny Joint internals

Vehicle fitment

Listed fitment is universal, so no particular year, make, model or trim is covered. Use it with RockJock adjustable upper control arms or with a custom arm for universal work, and check the 2 inch mounting width and 7/16-inch thru bolt hole first.

Because this is a universal joint rather than a vehicle-specific part, no specific vehicle is named as covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Thread direction is right hand, so check the adjuster orientation in the arm before assembly. RockJock’s greaseable thru bolts are sold separately if you want grease access through the bolt. Thread the stud fully into the arm before use, since this joint takes steering and suspension forces.

What’s included

One forged Johnny Joint with a 3/4-16 right hand threaded stud, finished in gold zinc plating.

Not included: 7/16-inch greaseable thru bolts, which are sold separately. Jam nuts are available for these units and are not part of the package.

Questions & Answers

Does the R/JCE-9112SP fit a specific vehicle?

No. It is a universal fit joint, so no year, make, model or trim applies. It suits RockJock adjustable upper control arms and custom arms built for universal use. Check mounting width and bolt hole against your arm before ordering.

Which way do the threads run on this joint?

The threads run right hand. The shank carries 2 1/4 inch of 3/4-16 right hand threads, so confirm the arm's adjuster uses a matching right hand thread before assembly.

Will this joint take RockJock's greaseable thru bolts?

Yes. The joint accepts RockJock's 7/16-inch greaseable thru bolts, which are sold separately. Those bolts are not included with the joint, so plan to order them alongside it before assembly begins.

What is the part number and finish of this Johnny Joint?

The part number is R/JCE-9112SP. It is a 2 inch forged Johnny Joint in gold zinc plating, with a 7/16-inch thru bolt hole and a 2 inch mounting width. Each unit is one joint.

Can a right hand joint be used on a left hand adjuster?

No. A right hand stud will not thread into a left hand adjuster, and forcing it can strip threads. Confirm the thread direction of the arm before buying, then check that the stud threads in smoothly by hand before tightening.
