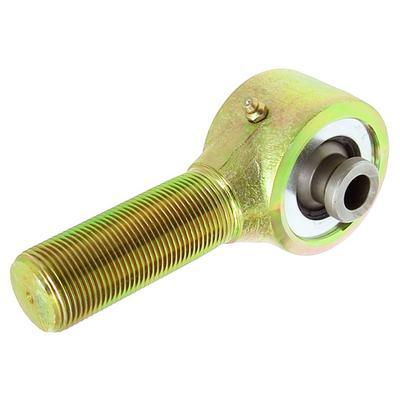

RockJock Narrow 2.5 Inch Forged Johnny Joint, 1.25″-12 Right Hand Thread Shank, 2.365 x 0.5625 Ball – CE-9114N-14

RockJock 4x4

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • RockJock 4×4 R/JCE-9114N-14, a narrow forged Johnny Joint with right hand threads
  • 1 1/4-inch-12 right hand shank with 2 1/4 inches of threads
  • 40 degrees of movement in any direction
  • 2.365-inch offset ball and .562-inch thru bolt hole
  • Universal fit; no vehicle named

Description

Overview

The RockJock 4×4 CE-9114N-14 (part number R/JCE-9114N-14) is a narrow forged Johnny Joint rod end with a 1.25-12 right hand shank and a 2.365-inch offset ball. Universal fit is shown for it, so it suits custom arms rather than one named vehicle.

It offers 40 degrees of movement in any direction, compared with 22 degrees for a standard heim joint. A urethane bushing around the inner ball adds cushioning, and two heavy duty side washers with a snap ring hold the internals in place.

Key features

  • Right hand 1.25-12 shank with 2 1/4 inches of threads
  • Offset 2.365-inch ball with a .562-inch thru bolt hole
  • Heat-treated, cross-drilled center ball
  • Zerk fitting on a 2 1/2-inch diameter body
  • Gold zinc plating

Setting up the arm

A narrow forged Johnny Joint is usually chosen for tight packaging, where a wider joint would hit the frame, tire or axle tube. Its offset ball moves the mounting point away from the centerline of the body, which helps the joint clear hardware when the arm is laid out. Before cutting tube, sketch the arm with the joint in place and check clearance at full articulation.

Threads need proper engagement in the tube or sleeve, and a jam nut should be run down against the joint once the length is set. Recheck the lock after the first few trail runs, since vibration can loosen connections over time. Grease the joint through its fitting after assembly so the inner components stay lubricated.

  • Check arm clearance at full articulation before welding
  • Match the thread direction on both ends of the link
  • Inspect the snap ring and side washers during service

Specifications

Brand RockJock 4×4
Part number R/JCE-9114N-14
Body diameter 2 1/2 inches
Shank 1 1/4-inch-12, right hand, 2 1/4 inches of threads
Mounting width 2.365 inches (offset ball)
Thru bolt hole .562 inch
Movement 40 degrees in any direction
Retention Two heat-treated side washers and a snap ring
Finish Gold zinc plating

Vehicle fitment

Universal fit is shown, and no year, make, model or trim is named for this joint. It is intended for custom linkage rather than a particular truck or Jeep.

Compare the offset ball and thread size with your arm design before choosing it. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Grease through the zerk fitting before first use, and size the thru bolt to the .562-inch hole.

What’s included

The joint arrives as a finished unit with its internals retained.

Not included: the arm, tubing or mounts the joint is installed in.

Questions & Answers

Is this the right hand version of the narrow 2.5-inch joint?

Yes. The CE-9114N-14 has a 1.25-12 right hand shank, while the CE-9114NL-14 is the left hand version. Both are narrow forged Johnny Joints with a 2.365-inch offset ball.

What are the ball and thru bolt sizes?

The joint has a 2.365-inch offset ball with a .562-inch thru bolt hole. The body measures 2 1/2 inches in diameter.

How far does it articulate?

RockJock lists 40 degrees of unrestricted movement in any direction, compared with 22 degrees on a common heim joint. The joint uses a urethane bushing for cushioning.

Does it fit a specific vehicle?

No year, make, model or trim is named. Universal fit is shown, so this joint suits custom arm builds where the mounting width and thread can be matched.

How can I tell when the joint needs replacing?

Replace the joint if the ball has noticeable play, the body shows cracks or the grease fitting will not take lubricant. Binding at full articulation and visible wear on the threads are also signs the joint is worn and should be checked before the next trip.

Should a Johnny Joint be greased before first use?

Yes. Grease the joint through the zerk fitting before its first use, then continue greasing at regular intervals, especially after water crossings or dusty trail runs. Regular greasing slows wear on the inner ball and bushing.
