RockJock 9/16 Inch Greasable Bolt with Hardware – CE-91107

RockJock 4x4

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

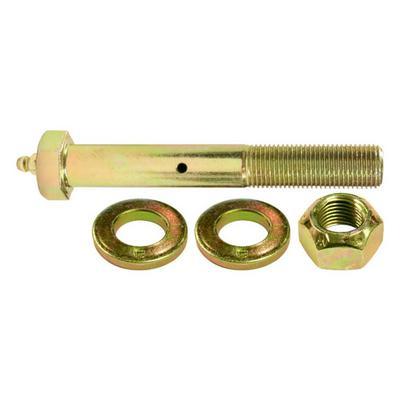

  • RockJock 4×4 9/16 inch greasable bolt with hardware, part number R/JCE-91107
  • 9/16″ fine thread for 2 1/2″ Johnny Joints
  • Zerk fitting installed in the bolt head
  • Includes two flat washers and a crush nut

Description

Overview

The RockJock 4×4 CE-91107 is a 9/16 inch greasable bolt with hardware, part number R/JCE-91107, used in 2 1/2″ Johnny Joints. It has 9/16″ fine thread and a zerk fitting installed in its head.

The greasable head lets you lubricate the joint through the zerk after assembly. The kit adds two flat washers and a crush nut, so the bolt can be used with the joint as a complete set.

Key features

  • 9/16″ fine thread
  • Greasable head with a zerk fitting installed
  • Two flat washers included
  • Crush nut included
  • Used in 2 1/2″ Johnny Joints

Keeping the joint serviced

A greasable bolt only helps if the grease reaches the joint’s bearing surfaces. After assembly, pump slowly through the head zerk until fresh grease appears at the seal. Clean the zerk tip before each session so dirt does not get pushed into the bore.

Crush nuts behave differently from locking nuts. Once a crush nut is tightened, it deforms to hold its position, so it is best used once and replaced if removed. Check the washer faces for flattening or galling before fitting them, and keep the thread clean so the nut seats squarely against the joint.

After trail runs, look over the bolt head and washers for cracks or movement. A loose bolt lets the joint shift in its bore and wear the housing faster. If the zerk is damaged, replace it before the joint runs dry, since dry bearing surfaces wear quickly under articulation.

  • Clean the zerk before every grease session
  • Replace a crush nut once it has been removed
  • Check washers for flattening or galling
  • Inspect the bolt head after trail runs

Specifications

Brand RockJock 4×4
Part number R/JCE-91107
Thread 9/16″ fine
Lubrication Zerk fitting in head
Hardware included 2 flat washers, 1 crush nut
Used in 2 1/2″ Johnny Joints

Vehicle fitment

This bolt is universal fit, so it is not tied to one vehicle. Whether it suits depends on the 9/16 inch fine thread and the 2 1/2 inch Johnny Joint it goes into.

Check the thread size against your joint before installing.

Installation notes

The zerk is already installed in the bolt head, so grease the joint through it after assembly.

What’s included

Greasable bolt with a zerk fitting in the head, two flat washers and a crush nut.

Questions & Answers

What is the RockJock 4x4 CE-91107?

It is a 9/16 inch greasable bolt with hardware, part number R/JCE-91107. It comes with a zerk fitting installed in the head, two flat washers and a crush nut, and it is used in 2 1/2-inch Johnny Joints.

Will this bolt fit my vehicle?

No vehicle is named for this bolt, which is universal fit. Match its 9/16 inch fine thread and the 2 1/2-inch Johnny Joint you are building before installing it.

What hardware comes with it?

Two flat washers and a crush nut come with the greasable bolt. The zerk fitting is already installed in the bolt head, so no separate grease fitting is needed for lubrication.

Does the bolt need to be greased?

Yes, the bolt is designed for greasing. Its zerk sits in the head, so the joint can be lubricated through it once assembled. Grease intervals depend on how hard the joint is worked, so inspect it regularly and grease whenever it feels dry.

Can a crush nut be reused on this bolt?

Usually not. A crush nut deforms when it is tightened, so it grips less reliably after removal. Inspect the threads and nut for damage before reuse, and replace it if it has been taken off once or shows wear. A fresh nut helps hold the joint steady.
