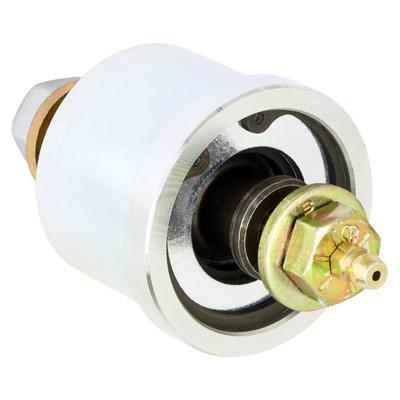

RockJock Machined Johnny Joint – CE-9112M

RockJock 4x4

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • RockJock 4×4 machined Johnny Joint, part number R/JCE-9112M
  • Driven into the bushing bore to replace the stock rubber bushing
  • Outer shell 1.795″ o.d., 7/16″ thru bolt hole
  • Includes a 7/16″ greasable bolt

Description

Overview

The RockJock 4×4 CE-9112M is a machined Johnny Joint rod end meant to replace the stock rubber bushing in a front axle housing. RockJock machines it from the CE-9102K front end housing kit, and its outer shell is machined to 1.795″ o.d. with a flanged edge.

It is designed to be driven into the bushing bore on the gear case casting side of TJ, LJ, XJ and MJ Dana 30 or 44 front housings.

Key features

  • Machined outer shell, 1.795″ o.d., with a flanged edge
  • Designed to replace the stock rubber bushing in the housing bore
  • 7/16″ thru bolt hole
  • Includes a 7/16″ greasable bolt

Drive-in joint installation

A drive-in joint depends on a tight, clean bore. Check the bore for burrs, rust and wear before pressing, and clean out any debris so the joint seats square. Use a press or a driver that loads the outer shell evenly, and stop when the flange is fully seated. Pressing at an angle can damage the bore and the joint.

Once the joint is driven in, install the bolt and check that the joint pivots freely through its range. Grease it through the bolt before assembly, and recheck the seating after the first few trail runs. Joints that loosen in the bore usually show movement at the flange, so inspect the bore whenever the joint is removed. Wear eye protection throughout the job.

  • Clean and inspect the bore before pressing
  • Press evenly and seat the flange fully
  • Grease through the bolt before assembly

Specifications

Brand RockJock 4×4
Part number R/JCE-9112M
Outer shell diameter 1.795″ o.d.
Thru bolt hole 7/16″
Included bolt 7/16″, greasable

Vehicle fitment

It is built for TJ/LJ/XJ/MJ Dana 30 or 44 front housings. Match your housing to that before buying.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

This is a drive-in part, not a bolt-on: the joint is driven into the bushing bore in place of the stock rubber bushing. Confirm the bore size before pressing it in, and wear eye protection when driving the joint.

What’s included

The greasable 7/16″ bolt is included.

Not included: the CE-9102K front end housing kit is named only as the kit this joint is machined from.

Questions & Answers

Is the CE-9112M a bolt-on joint?

No. It is driven into the bushing bore on the gear case casting side of the housing to replace the stock rubber bushing. It is machined with a flanged edge and has a 7/16" thru bolt hole.

Which housings is this joint designed for?

The joint is designed for TJ, LJ, XJ and MJ Dana 30 or 44 front housings. Match your housing to that before buying, and confirm your vehicle's year, model and trim before ordering.

What size is the outer shell?

The outer shell is machined to 1.795 inch o.d. with a flanged edge. It has a 7/16 inch thru bolt hole and includes a 7/16 inch greasable bolt.

Can a drive-in joint be pressed out and reused?

Yes, a drive-in joint can be pressed out with a suitable press, but the bore may be damaged in the process. Inspect the bore for wear or burrs before reinstalling, and use a new joint or bushing where the old one shows damage.
