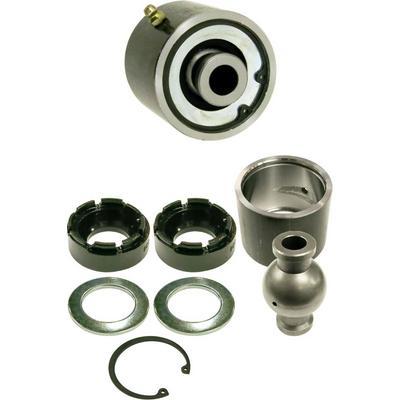

RockJock 2.5 Inch Johnny Joint – CE-9110P-14

RockJock 4x4

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • RockJock 4×4 R/JCE-9110P-14, a 2.5-inch weld-on Johnny Joint kit
  • 30 degrees of movement in any direction
  • DOM tube outer shell with high-density urethane bushings
  • 9/16-inch thru bolt hole and 2 5/8-inch mounting width
  • No vehicle named; made for fabricated suspension builds

Description

Overview

The RockJock 4×4 CE-9110P-14 (part number R/JCE-9110P-14) is a 2.5-inch weld-on Johnny Joint kit for fabricators and suspension builders. The outer shell is .180 inch DOM tubing, and the joint is welded into a fabricated arm rather than bolted to a factory mount.

The high-density urethane bushings are rated tough 88 and are designed to resist weather. The joint gives 30 degrees of movement in any direction, compared with 22 degrees for a common heim joint.

Key features

  • 30 degrees of movement in any direction
  • High-density urethane bushing around the inner ball
  • Heat-treated steel center ball, cross-drilled for thru-bolt lubrication
  • 9/16-inch thru bolt hole and 2 5/8-inch mounting width
  • Heat-treated steel retaining washers

Welding and fabrication tips

A weld-on joint depends on the quality of the weld and the fit of the arm. Tack the joint into position, check alignment and free movement, then complete the welds in stages to limit heat distortion. Clean the tubing and the joint shell of paint and rust first, since contamination can make the weld porous and weaken it under load.

Choose the arm geometry before cutting tubing so the joint can articulate fully without contacting the frame or other parts. Heat-treated retaining washers and the thru bolt should be installed after the arm has cooled. Recheck the joint for free movement once the arm is finished, and recheck the welds periodically on a vehicle that sees hard use.

  • Tack and check alignment before final welds
  • Clean tubing and shell before welding
  • Confirm clearance through full movement

Specifications

Brand RockJock 4×4
Part number R/JCE-9110P-14
Joint type Weld-on Johnny Joint kit
Outer shell .180 inch DOM tubing
Bushing High-density urethane, tough 88
Center ball Heat-treated steel, 9/16-inch thru bolt hole
Mounting width 2 5/8 inches
Movement 30 degrees in any direction
Serviceability Serviceable

Vehicle fitment

No year, make, model or trim is given. The joint is aimed at custom linkage in fabricated arms, so it is not tied to a single vehicle.

Match the 2 5/8-inch mounting width to your own design before welding. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

This is a weld-on kit, so the shell should be welded by someone experienced with steel tubing, and the joint should be checked for free movement after the arm cools.

What’s included

The title and copy describe a weld-on joint kit.

Not included: the arm tubing or mounts the joint is welded into.

Questions & Answers

Is the CE-9110P-14 a bolt-on joint?

No. It is a weld-on Johnny Joint kit with a DOM outer shell, so it is welded into a fabricated arm. It is intended for custom suspension builds rather than a particular vehicle.

How much movement does the joint allow?

The joint gives 30 degrees of movement in any direction, compared with 22 degrees on a common heim joint. Its bushings are high-density urethane.

What is the mounting width and thru bolt hole?

The mounting width is 2 5/8 inches, and the thru bolt hole is 9/16 inch. Part number R/JCE-9110P-14 from brand RockJock 4x4.

Does it fit a specific vehicle?

No year, make, model or trim is named. It is a universal fabrication joint for custom suspension builders, so match its mounting width to your own arm design.

Should the joint be checked after welding?

Yes. Once the arm has cooled, work the joint through its full range to confirm it moves freely without binding. Heat from welding can change the fit, so check before the arm is used on the trail.
