RockJock Johnny Joint Rod End – CE-9110P-20

RockJock 4x4

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Weld-on Johnny Joint rod end for fabricators and suspension builders
  • 30 degrees of movement in any direction
  • 2 1/2 inch outer diameter, 2.590 inch mounting width
  • High-density urethane bushings and a zerk fitting

Description

Overview

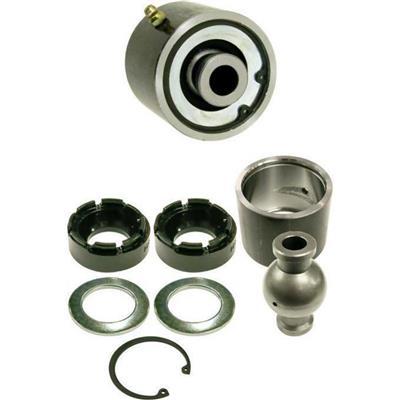

The RockJock Johnny Joint Rod End, part number CE-9110P-20, is a weld-on rod end for fabricators and suspension system builders. It offers 30 degrees of movement in any direction, compared with 22 degrees on a common heim joint.

The Johnny Joint uses high-density urethane bushings that encase the inner ball, which RockJock says gives cushioning that a heim joint cannot provide. This specific joint has a 2 1/2 inch outer diameter, a 2.590 inch mounting width and a thru bolt hole of .718 (inches).

Key features

  • 30 degrees of unrestricted movement in any direction
  • High-density urethane bushings encase the inner ball
  • Heat treated center ball, cross-drilled for thru-bolt lubrication
  • Two heavy duty, heat treated side washers and a snap ring retain the joint internals
  • Weldable outer shell of machined DOM tubing, wall thickness .180 (inches)
  • Zerk fitting on the shell for greasing

Fabrication and joint life

Welding a Johnny joint into a fabricated part needs planning so the joint’s internals are protected. The urethane bushings in the joint can be damaged by excessive heat, so the joint should be positioned so the welds are made away from the bushings. Support the joint while welding and let the assembly cool before moving it, so the outer shell and the mounts stay square.

Once the joint is installed, its life depends on keeping it greased and checking for play. The cross-drilled center ball helps lubricant reach the thru bolt, but the joint should still be inspected at regular intervals. Look for cracks in the welds, check the snap ring and washers, and confirm the joint moves freely through its full range.

  • Keep weld heat away from urethane bushings
  • Support the joint during welding
  • Grease at regular intervals
  • Check washers and snap ring for seating

Specifications

Brand RockJock 4×4
Part number CE-9110P-20
Product type Weld-on rod end (Johnny Joint)
Outer diameter 2 1/2 inches
Mounting width 2.590 inches
Thru bolt hole .718 (inches)
Movement 30 degrees in any direction
Inner ball Heat treated, cross-drilled for thru-bolt lubrication
Bushings High-density urethane
Outer shell Weldable machined DOM tubing, wall thickness .180 (inches)
Retention Two heavy duty heat treated side washers and a snap ring
Lubrication Zerk fitting
Fitment label Universal Fit

Vehicle fitment

It is a weld-on component with no vehicle application. It is built into custom or fabricated suspension parts.

Because it is built into custom or fabricated suspension parts, the outer diameter, mounting width and thru bolt hole size above are the measurements to match to the rest of the assembly.

Check the dimensions against your fabricated mounts and the mating bracket or bolt. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Fabrication parts like this Johnny Joint rod end should be installed by an experienced fabricator. Make sure joints and mounts are fully supported, torque fasteners to the correct values for the build, and inspect the finished assembly after the first miles of driving.

What’s included

One RockJock Johnny Joint rod end.

Not included: Thru bolts, brackets and mounting hardware are needed for installation; confirm what your build requires.

Questions & Answers

What size is the RockJock CE-9110P-20 Johnny Joint?

This joint has a 2 1/2 inch outer diameter and a 2.590 inch mounting width. The thru bolt hole is .718 (inches), and the outer shell is weldable machined DOM tubing.

How much movement does a RockJock Johnny Joint allow?

RockJock says Johnny Joints offer 30 degrees of unrestricted movement in any direction, compared with 22 degrees on a common heim joint.

Is the RockJock CE-9110P-20 weld-on?

Yes. The outer shell is weldable machined DOM tubing, and the joint is intended for fabricators and suspension system builders.

Can the RockJock CE-9110P-20 be greased?

Yes. The outer shell has a zerk fitting for greasing, and the center ball is cross-drilled for thru-bolt lubrication. Grease the joint as part of routine service.

What should be checked on the joint before it goes into service?

Check that the side washers and snap ring are fully seated, the joint moves freely through its range, and the zerk fitting takes grease. Look for play in the ball and inspect the weld beads for cracks before the assembly is loaded.
