Overview

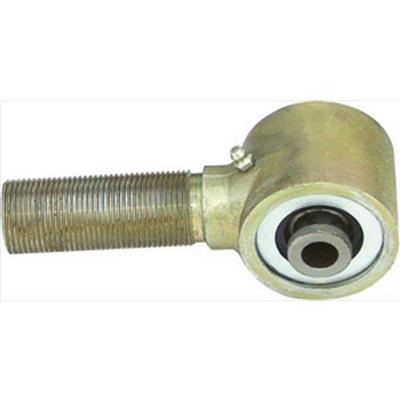

The RockJock 4×4 CE-9114 (part number R/JCE-9114) is a 2.5-inch forged Johnny Joint rod end with a 1-1/4-inch-12 right hand threaded shank. It comes fully assembled with RockJock’s standard Johnny Joint internals and is made for the lower control arm position on RockJock adjustable arms, as well as for fabricators building their own arms.
The forged steel body has a 2.625-inch wide ball center and a 9/16-inch thru bolt hole. The joint is greased from the outside through a zerk fitting and finished in gold zinc plating.
Key features
- Forged steel construction
- Comes fully assembled with standard internals
- Externally greasable through a zerk fitting
- Gold zinc plating
- Accepts 9/16-inch greasable thru bolts, available separately
Grease schedule and wear
A joint with an external zerk fitting makes regular greasing simple, which helps the internals last. Pump grease slowly and cycle the joint through its movement while you do it, so the lubricant reaches the ball and the bearing surfaces. Grease after water crossings, mud runs, or any hard trail session, and keep the outer seal area clean so grit does not get pushed in.
Look for signs of wear at each service: play at the stud, a rough feel when moving the joint, or grease that comes out dark and gritty. Those symptoms point to worn internals or contamination. Because the joint is greased through the outer shell, it is easy to inspect and service without removing it from the arm, which keeps maintenance quick.
- Grease after mud and water exposure
- Watch for play at the stud
- Replace worn internals when grease runs gritty
Specifications
| Brand | RockJock 4×4 |
|---|---|
| Part number | R/JCE-9114 |
| Joint type | Forged steel rod end, fully assembled |
| Shank threads | 1-1/4-inch-12, right hand |
| Ball center width | 2.625 inches |
| Thru bolt hole | 9/16 inch |
| Greasing | Zerk fitting |
| Finish | Gold zinc plating |
| Serviceability | Serviceable |
Vehicle fitment
It suits RockJock adjustable lower control arms and universal arm builds. Fit depends on the arm, so confirm your vehicle’s year, model and trim before ordering.
Compare the 2.625-inch ball center and the shank thread with your arm before assembly. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Grease the joint through its zerk fitting, and plan for the 9/16-inch greasable thru bolts, which are available separately, when you assemble the arm.
What’s included
One fully assembled Johnny Joint with standard internals.
Not included: 9/16-inch greasable thru bolts, available separately.
