RockJock 2 Inch Forged Johnny Joint with 3/4 Inch LH Threaded Stud – CE-9112SPL

RockJock 4x4

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Universal fit 2 inch forged Johnny Joint for RockJock adjustable upper control arms and custom arm builds
  • Part number R/JCE-9112SPL with a left hand 3/4-16 threaded stud
  • 2 inch mounting width and 7/16-inch thru bolt hole
  • Greaseable through the outer shell, finished in gold zinc plating

Description

Overview

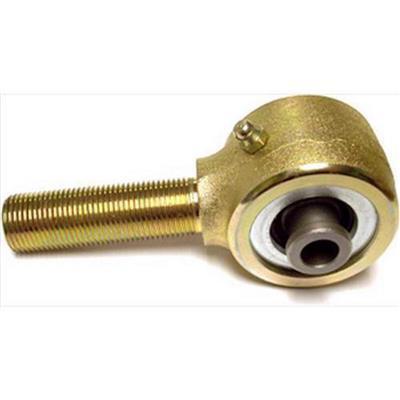

The RockJock 4×4 R/JCE-9112SPL is a 2 inch forged Johnny Joint with a 3/4-16 left hand threaded stud. It is a male rod-end style forging that takes the internals of RockJock’s CE-9112 2 inch Johnny Joints. It is a universal fit joint, so it works with RockJock adjustable upper control arms and with arms a builder makes for universal use.

This left hand version is a finished joint that can be greased through the outer shell and is serviceable. Because it is greaseable after installation, the joint can be regreased as wear builds up over time.

Key features

  • Forged male rod-end housing that accepts the internals of RockJock’s 2 inch CE-9112 Johnny Joints.
  • 2 inch mounting width.
  • 7/16-inch thru bolt hole.
  • 2 1/4 inch of 3/4-16 left hand threads on the shank.
  • Greaseable through the outer shell and serviceable.
  • Accepts RockJock 7/16-inch greaseable thru bolts, sold separately.
  • Finished in gold zinc plating.

Maintaining a Johnny Joint

A Johnny Joint works as a pivot between the arm and the axle or knuckle, so it carries steering and suspension loads every time the vehicle moves. Over time the internals wear, and dirt can work past the seals, which adds play and stiffness. Regular greasing keeps the moving parts coated and pushes out contaminants. A joint that is greased on a schedule tends to last longer than one serviced only after trouble appears.

When inspecting the joint, load the arm and feel for movement at the stud, then check the threads and the area where the stud meets the housing. Clicking, grinding, or rough articulation usually means the internals need attention. Replacing a worn joint is often done together with the thru bolts, since those fasteners see the same wear and should be checked for damage before reuse.

  • Grease after installation and on a regular schedule
  • Check for play with the arm loaded
  • Inspect thru bolts for wear when replacing the joint

Specifications

Brand RockJock 4×4
Part number R/JCE-9112SPL
Joint type Finished forged Johnny Joint, male rod-end style
Mounting width 2 inch
Thru bolt hole 7/16 inch
Shank thread 3/4-16, left hand, 2 1/4 inch of threads
Maintenance Serviceable, greaseable through the outer shell
Finish Gold zinc plating
Fitment Universal fit
Compatible internals RockJock CE-9112 2 inch Johnny Joint internals

Vehicle fitment

It is a universal fit joint with no specific year, make, model or trim. It suits RockJock adjustable upper control arms and custom arms built for universal applications. Check the mounting width and thru bolt hole against your arm before installing.

This is not a vehicle-specific part, so no particular vehicle is covered by name. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The stud is left hand threaded, so confirm the thread direction matches the arm’s adjuster before assembly. The joint accepts RockJock’s 7/16-inch greaseable thru bolts, which are sold separately. Because the stud carries steering and suspension loads, install the joint with the stud threaded fully into the arm.

What’s included

One forged Johnny Joint with a 3/4-16 left hand threaded stud, finished in gold zinc plating.

Not included: 7/16-inch greaseable thru bolts, which are sold separately. Jam nuts are available for these units and are not part of the package.

Questions & Answers

Is this Johnny Joint made for a specific vehicle?

No. It is a universal fit joint, so no year, make, model or trim applies. It works in RockJock adjustable upper control arms and in universal arm builds. Check the mounting width and bolt hole against your arm before installing.

Which way do the threads run on the R/JCE-9112SPL?

The threads run left hand. The shank carries 2 1/4 inch of 3/4-16 left hand threads, so confirm the arm's adjuster uses a matching left hand thread before you assemble the joint.

Will this joint accept RockJock's greaseable thru bolts?

Yes. The joint accepts 7/16-inch greaseable thru bolts, which are sold separately. Those bolts are not included with the joint, so order them before assembly begins.

What is the part number and finish of this Johnny Joint?

The part number is R/JCE-9112SPL. It is a 2 inch forged Johnny Joint finished in gold zinc plating, with a 7/16-inch thru bolt hole and a 2 inch mounting width. Each unit is one joint.

How do I grease a Johnny Joint once it is installed?

Use a grease gun on the outer shell fitting and pump slowly until fresh grease shows at the seal. Work the joint through its range while pumping, since this moves grease to the bearing surfaces and pushes out dirt and moisture.
