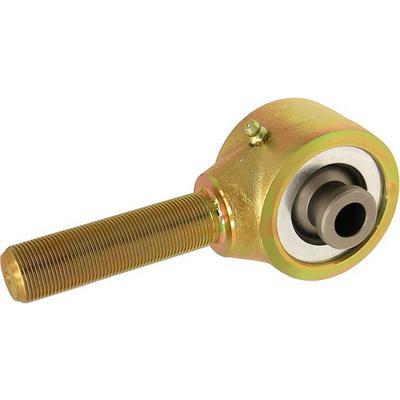

RockJock 2.5″ Narrow Forged Johnny Joint with 7/8″-14 RH Thread (2.625″ x .562″ Ball) – CE-9117N

RockJock 4x4

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • RockJock 4×4 narrow forged Johnny Joint rod end, part number R/JCE-9117N
  • 7/8″-14 right hand threaded shank, fully assembled
  • 2.625″ wide ball center with 9/16″ thru bolt hole
  • Externally greasable through a zerk fitting
  • Forged steel with gold zinc plating

Description

Overview

The RockJock 4×4 CE-9117N is a narrow forged 2 1/2″ Johnny Joint rod end, part number R/JCE-9117N, with a 7/8″-14 right hand threaded shank. It comes fully assembled and is built for suspension builds that need a jointed link end with a narrow profile.

A rod end is a jointed fitting that lets a suspension link pivot in several directions. This one has a 2.625″ wide ball center and a 9/16″ thru bolt hole, and it accepts 9/16″ greasable thru bolts.

Key features

  • Forged steel construction
  • Narrow 2 1/2″ Johnny Joint body
  • 7/8″-14 right hand threaded shank
  • 2.625″ wide ball center with 9/16″ thru bolt hole
  • Externally greasable through a zerk fitting
  • Accepts RockJock 9/16″ greasable thru bolts, which come as a separate item
  • Gold zinc plated finish

Clearance and joint angle

A narrow rod end suits links where space is tight, but it also leaves less room for bracket clearance. Before installing, check the joint at full articulation for contact with the frame, shocks or tire. A joint running at a steep angle wears faster and can bind, so set the link length so the ball moves freely through its range.

Use the joint with compatible thru bolts and a clean, greased pivot. Recheck the jam nut setting after the first trail runs, since vibration can shift it. Inspect the ball and socket for play, pitting or scoring. A joint that feels rough or loose should be replaced rather than adjusted, because wear inside the socket cannot be corrected by tightening.

Specifications

Brand RockJock 4×4
Part number R/JCE-9117N
Joint type Narrow forged Johnny Joint rod end
Body size 2 1/2″ narrow
Shank thread 7/8″-14 right hand
Ball size 2.625″ x .562″
Thru bolt hole 9/16″
Material Forged steel
Finish Gold zinc plating
Lubrication Externally greasable, zerk fitting
Assembly Comes fully assembled

Vehicle fitment

Fit depends on the 7/8″-14 right hand thread, the 9/16″ bolt hole and the ball size your links and brackets need. Check those dimensions against your vehicle before ordering.

No vehicle years or chassis codes are named, so check the thread and bolt hole against your existing parts before installing.

Installation notes

The joint takes RockJock’s 9/16″ greasable thru bolts, which come as a separate item. Grease through the zerk after the joint is in place. Because a rod end sets link angles, check clearance and joint angle once it is installed.

What’s included

One fully assembled narrow forged Johnny Joint rod end.

Not included: 9/16″ greasable thru bolts, which come as a separate item.

Questions & Answers

What is the RockJock 4x4 CE-9117N?

It is a narrow forged 2 1/2" Johnny Joint rod end, part number R/JCE-9117N, from RockJock 4x4. It comes fully assembled with a 7/8"-14 right hand threaded shank, a 2.625" wide ball center and a 9/16" thru bolt hole.

Does this rod end fit a specific vehicle?

No vehicle is named for it. Check the 7/8"-14 right hand thread and 9/16" bolt hole against your existing links before installing, and confirm fit for your year, model and trim.

Can the joint be greased?

Yes. It is externally greasable through a zerk fitting. It also accepts RockJock's 9/16" greasable thru bolts, which come as a separate item and are not included with the joint.

What materials and finish does it have?

It is forged steel with a gold zinc plated finish. The joint is greased through its zerk fitting, so keep the grease passages clean during assembly.

Why does a narrow rod end wear faster at steep angles?

A steep joint angle puts more load on one side of the ball and socket. That concentrates wear and can cause binding. Keep the link length set so the joint moves through a moderate range.
