RockJock 2.5 Inch Forged Johnny Joint with 1 Inch RH Threaded Stud – CE-9113

RockJock 4x4

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • RockJock 4×4 R/JCE-9113 forged Johnny Joint with a threaded stud
  • 2-inch mounting width and 7/16-inch thru bolt hole
  • 2-inch mounting width and 7/16-inch thru bolt hole, greaseable through the outer shell and serviceable
  • Uses internals from the CE-9112 2-inch Johnny Joint
  • No vehicle named; suited to RockJock adjustable upper control arms and universal builds

Description

Overview

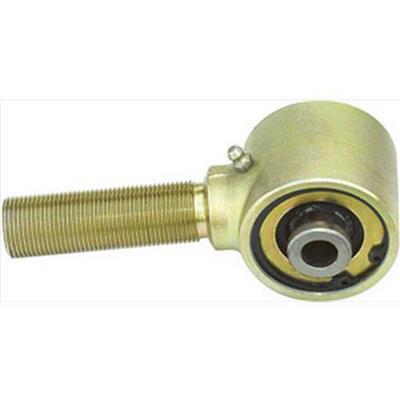

The RockJock 4×4 CE-9113, part number R/JCE-9113, is a 2.5-inch forged Johnny Joint with a threaded stud, built as a male rod end for custom suspension linkage. Thread size appears two ways: a 1 inch right hand stud in the name and 2 1/4 inches of 3/4-16 right hand threads on the shank. Measure before fitting.

This joint uses the Johnny Joint internals from the CE-9112 2-inch joint. It works in RockJock adjustable upper control arms as well as universal arm builds.

Key features

  • Forged male rod end with a 2-inch mounting width
  • Greaseable through the outer shell
  • Accepts 7/16-inch greaseable thru bolts, available separately
  • Uses internals from the CE-9112 2-inch Johnny Joint
  • Gold zinc plating

Setting up custom arm joints

Johnny joints carry the arm’s load at a pivot where the stud threads into the arm or sleeve, so setup matters as much as the joint itself. Check that the stud is square to the bore, that the jam nut is tight and that the joint has full range of motion before the arm goes on the vehicle. Binding in the joint limits articulation and wears the internals faster.

Regular greasing and inspection keep a joint working longer. Look for play when you pry on the arm, grease that does not purge, and torn seals. Replace a worn joint before it fails on the trail, since a failed link can make steering unpredictable. Keeping the thru bolts snug keeps the pivot tight.

  • Check the stud is square to the bore
  • Confirm full range of motion before install
  • Grease until fresh grease appears
  • Replace joints with play or binding

Specifications

Brand RockJock 4×4
Part number R/JCE-9113
Joint type Forged, finished joint with threaded stud
Mounting width 2 inches
Thru bolt hole 7/16 inch
Shank threads 2 1/4 inches of 3/4-16, right hand
Finish Gold zinc plating
Serviceability Serviceable; greaseable through the outer shell

Vehicle fitment

The joint is designed for RockJock adjustable upper control arms and universal custom arm builds, so fit depends on the arm it goes into.

Confirm fit against your arm, and confirm your vehicle’s year, model and trim before ordering.

Installation notes

Measure the stud thread before assembly, because the name and shank measurements differ. Grease the joint through the outer shell, and plan for 7/16-inch greaseable thru bolts, sold separately.

What’s included

A finished joint with a threaded stud.

Not included: 7/16-inch greaseable thru bolts, available separately.

Questions & Answers

Does the RockJock CE-9113 fit a specific Jeep or truck?

No specific vehicle is named for this joint. It is designed for RockJock adjustable upper control arms and universal custom arm builds, so confirm the arm it goes into before using it.

What is the thread size on the stud?

The shank has 2 1/4 inches of 3/4-16 right hand threads, while the name refers to a 1 inch right hand stud. Measure the thread before fitting the joint, since the two sizes differ.

What thru bolt does this joint use?

It has a 7/16-inch thru bolt hole. RockJock says its 7/16-inch greaseable thru bolts, available separately, work with this joint.

Is the CE-9113 greaseable?

Yes. It is greaseable through the outer shell and is serviceable. Grease it at regular intervals, especially after trail use. Its part number is R/JCE-9113 from RockJock 4x4.

Do I need a jam nut or lock hardware with a threaded stud?

Yes, use a jam nut or locking hardware to hold the stud at the setting you chose. Tighten to the torque your build calls for, and recheck the adjustment after the first few drives.

How often should a Johnny joint be greased?

Grease it at regular intervals, and always after washing or trail use that may have forced water or grit into the joint. Watch for grease escaping the seal, which shows the joint is taking in fresh lubricant.
