Overview
The Rock Krawler RK07518 is a Pro-X upgrade for the 2020–2026 Jeep Gladiator (JT) in the Launch Edition, Overland, Rubicon, Sport and Sport S trims. It is a triangulated 4-link rear assembly that replaces the factory 5-link arrangement.
The design allows the rear track bar to be removed, which removes the interaction between the front and rear track bars and can smooth highway ride. The 4-link also keeps the rear axle centered through the suspension cycle and removes the binding that the factory 5-link arrangement can have.
Key features
- Triangulated 4-link rear assembly
- Allows removal of the rear track bar
- Keeps the rear axle centered through the suspension cycle
- Removes the suspension bind of the factory 5-link
Rear geometry after a 4-link swap
A triangulated 4-link locates the axle with four links and a track point, while a factory 5-link uses five links to do the same job. Changing the link layout alters how the axle moves through its travel, so wheel path, pinion angle and driveline angle all shift. Because the rear track bar is removed, the axle relies on the links alone to stay centered.
Links, bushings and frame mounts should be inspected regularly for wear, cracks and loose fasteners. Driveline vibration or unusual tire wear after installation often points to pinion angle that needs to be set again. Keep brake lines and the fuel system clear of the new link paths during reassembly.
- Check pinion and driveline angles after installation
- Inspect link bushings and frame mounts during service
- Confirm brake line clearance through full suspension travel
Specifications
| Brand | Rock Krawler |
|---|---|
| Part number | RK07518 |
| Type | Triangulated 4-link rear upgrade |
| Lift height range | 0 to 3.5 inches |
| Front shocks | Not included |
| Rear shocks | Not included |
| Fitment type | Direct fit |
Vehicle fitment
The upgrade fits the 2020–2026 Jeep Gladiator in the Launch Edition, Overland, Rubicon, Sport and Sport S trims.
The list does not cover the Jeep Wrangler JL or JK, or the Gladiator from 2019 or 2023 onward. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because the rear 4-link replaces the factory 5-link and the rear track bar is removed, the rear axle position and driveline angle change. Check the pinion and driveline angles after installation.

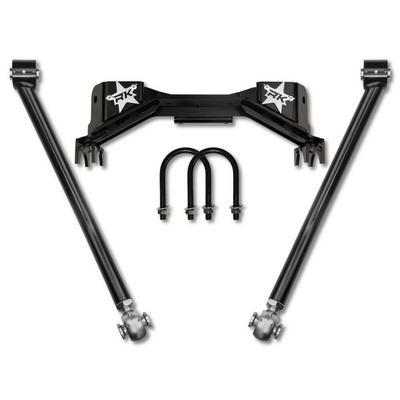

What’s included
The triangulated 4-link rear assembly is the main component. Check the brackets and hardware against your installation before starting.
