Rock Krawler 3.5 Inch X Factor Short Arm Lift Kit with Twin Tube Shocks – LJ35XFSA-TT

Rock Krawler

Shop Jeep Wrangler LJ Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 3.5-inch X Factor short arm lift with twin tube shocks for 2004–2006 Jeep Wrangler LJ Unlimited and 2005 TJ Rubicon
  • Requires a transfer case drop kit, a CV driveshaft conversion, or a SYE with CV driveshaft conversion
  • RRD Spec twin tube shocks and a rear coil spring setup
  • Part number RKSLJ35XFSA-TT

Description

Overview

The Rock Krawler LJ35XFSA-TT is a 3.5-inch X Factor short arm lift kit with twin tube shocks for the 2004 to 2006 Jeep Wrangler LJ Unlimited and Unlimited Rubicon, and for the 2005 Wrangler TJ Rubicon. Rock Krawler designs and fabricates its lift kits and suspension components for the Jeep Wrangler, and the X-Factor line fits Jeeps from the TJ to the Gladiator JT. The kit uses RRD Spec twin tube shocks and a coil spring setup at the rear.

This is not a complete drop-in system. It requires a transfer case drop kit, a CV driveshaft conversion, or a SYE with CV driveshaft conversion. A 2003 TJ with a four-speed automatic needs its factory automatic transmission skid plate removed, if fitted, so the front driveshaft has room to travel.

Key features

  • 3.5-inch lift from the X Factor short arm design
  • RRD Spec twin tube shocks
  • Rear coil spring setup
  • Requires a transfer case drop or CV driveshaft conversion
  • Typical wheel fit for a 12.5-inch-wide tire is 15×8 with 3-3/4 inches of backspacing.

Before you buy

Lift height changes the angle of the driveshafts, and that is why a lift of this size usually needs a driveline solution. Check the transfer case position, the front driveshaft length and the CV joint angles before buying. Plan the rest of the front end as a system, since steering components and brake lines can be stretched when the axle moves further from the frame.

Shock and spring changes also affect how the vehicle feels on pavement. Twin tube shocks are a simpler design than remote reservoir units, so they suit moderate trail use and daily driving. Inspect bushings, sway bar links and ball joints when the lift goes in, and replace any that are worn so the new geometry is not working against old parts.

  • Check driveshaft angles after the lift is installed
  • Inspect ball joints and tie rod ends during install
  • Replace worn sway bar links in the same job
  • Recheck lug nut torque after the first drives

Specifications

Brand Rock Krawler
Part number RKSLJ35XFSA-TT
Lift size 3.5 inches, per the product name
Shocks RRD Spec twin tube
Rear lift component Coil spring
Typical wheel fit 15×8 with 3-3/4 inches of backspacing for a 12.5-inch-wide tire
Fitment type Direct fit

Vehicle fitment

It fits 2004 to 2006 Jeep Wrangler LJ Unlimited and Unlimited Rubicon models, and 2005 Jeep Wrangler TJ Rubicon models.

A 2003 TJ with a four-speed automatic needs its factory automatic transmission skid plate removed, if fitted. Verify the year, model and drivetrain on your vehicle before purchase.

Installation notes

Installing it requires a transfer case drop, a CV driveshaft conversion or a SYE with CV conversion. Long arm geometry changes the alignment, so the front end should be aligned after installation.

What’s included

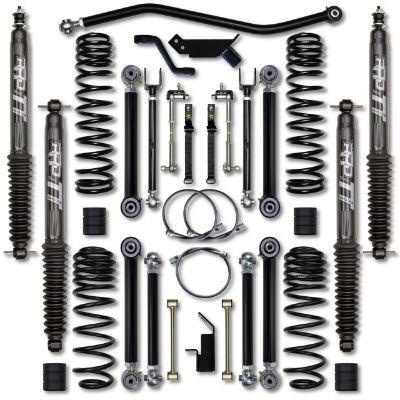

The kit includes the RRD Spec twin tube shocks and the rear coil springs. Check the parts received against your installation before starting.

SKU: RKSLJ35XFSA-TT Categories: ,

Fitment

VehicleYearsTrims
Jeep Wrangler (LJ)2004–2006Unlimited, Unlimited Rubicon
Jeep Wrangler (TJ)2005Rubicon

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the LJ35XFSA-TT work without a driveshaft conversion?

Not on its own. It requires a transfer case drop kit, a CV driveshaft conversion, or a SYE with CV driveshaft conversion, so plan for one of these before ordering the lift.

What wheel and tire fit is typical?

Typical fit is a 15x8 wheel with 3-3/4 inches of backspacing for a 12.5-inch-wide tire. Confirm wheel and tire fit for your vehicle before ordering, since other combinations vary.

Are the shocks included?

Yes. RRD Spec twin tube shocks are included, along with coil springs at the rear. Check the package contents against your installation before starting, and confirm the fit for your vehicle's year, model and trim.

How do I check driveshaft angles after a lift?

Measure the front and rear driveshaft angles with the vehicle at ride height once the lift and driveline changes are complete. Look for vibration at highway speeds, which often points to an angle that is too steep or mismatched. A shop with a driveline angle gauge can make the measurement quickly.
