Overview

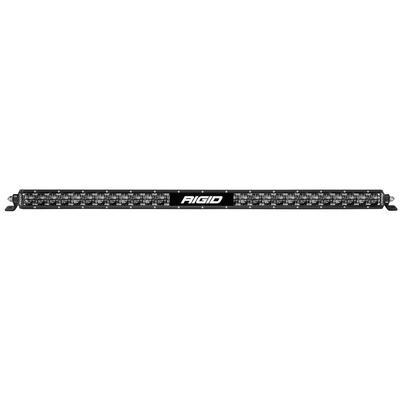

The Rigid Industries SR-Series 30 Inch Dual Function Auxiliary High Beam Driving Light Bar (part 930413) is a black 30 inch bar with a driving beam pattern. It is SAE compliant, so it is built for on-road use as well as off-road use, and it is meant for lawful auxiliary lighting where local rules allow it.
The optics use Rigid’s patented Clarilux system, which sets the output spread and height of the beam. The color temperature is in the pure daylight range for clarity at night. The housing is a high-grade aluminum alloy with a low profile and an oversized heat sink, and the lens is polycarbonate. The bar offers up to 50,000 useful hours, and a back-lit RIGID branding plate can run on its own or with the forward LEDs. The bar draws little power for the light it projects, and its housing keeps the LEDs cooler.
Key features
- SAE compliant for on-road use
- Patented Clarilux optic system
- Driving beam pattern
- Pure daylight color temperature
- Up to 50,000 useful hours
- Back-lit RIGID branding plate
- Low profile high-grade aluminum alloy housing
- Oversized heat sink and polycarbonate lens
On-road and off-road use
Auxiliary driving lights are most useful on dark rural roads and open trails, where a focused, daylight-colored beam helps spot hazards early. Keep the lights aimed level and check the aim after each change in the truck’s load or suspension, since a high beam aimed too high can dazzle oncoming drivers.
Choosing a mount and wiring plan comes next. Run the forward LED and branding plate wiring through a fused feed, with a switch close to the driver. Keep harnesses away from exhaust and moving parts, and use weatherproof connectors. Clean the polycarbonate lens regularly, because road grime cuts output even when the LEDs are sound.
- Aim the beam level before a trip
- Use a switch that shows which circuit is on
- Replace a cracked lens before water reaches the housing
Specifications
| Brand | Rigid Industries |
|---|---|
| Part number | 930413 |
| Light type | LED driving light bar |

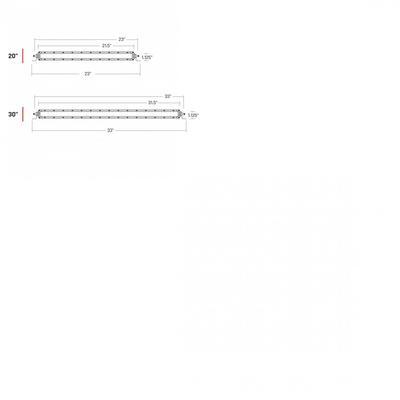

| Size | 30 inch housing |
| Beam pattern | Driving |
| Lens color | Clear |
| Finish | Black |
| Mounting | Bracket |
| Compliance | SAE compliant |
| LED life | Up to 50,000 useful hours |
| Sold as | Single |
Vehicle fitment
This 30 inch bar is a universal fit and is not built for one vehicle. Check the mounting location and clearance for a 30 inch bar before drilling.
Installation notes
Route the forward LED and branding plate wiring through a fused feed, and plan the switch layout before mounting the bar. Check local rules for SAE compliant lights on public roads before use.
What’s included
One 30 inch SR-Series dual function driving light bar with its bracket.
