Overview

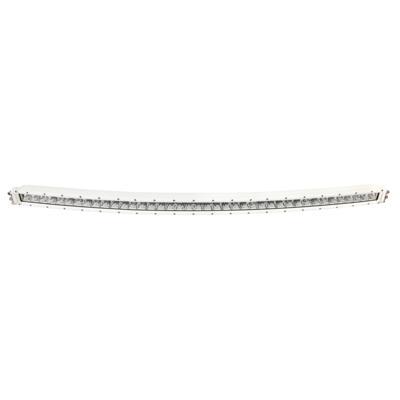

The Rigid White RDS SR-Series Pro 40 Inch Spot LED Light Bar (part 87431) is a 40 inch curved spot bar with a white housing. The SR-Series PRO keeps the RDS styling and curved design in a streamlined package. This white version is sold as a single unit.
The SR-Series design is a low profile light that measures less than 2 inches tall. The PRO version adds light output through improved LEDs. The arc spreads light across a wider area from one bar. The bar uses the same extruded aluminum housing and unbreakable polycarbonate lens as other Rigid lighting products, with blacked-out circuit boards and updated branding. The beam pattern is spot, and the bar is sold as a single unit.
Key features
- White housing
- Curved 40 inch spot light bar
- Gentle arc for a wider spread
- Single row LED layout
- PRO LEDs with more raw lumens
- Extruded aluminum housing
- Unbreakable polycarbonate lens
- Blacked-out circuit boards
Mounting a curved bar
A curved bar performs best when it is mounted securely and aimed evenly. Mount it on a rigid surface, use the supplied hardware where it fits, and tighten fasteners in stages so the housing does not flex. After the first few trail runs, re-check the bolts and the aim, since vibration can loosen both.
White housings show dirt and scratches more readily than black ones, so a soft cloth and mild soap keep the lens clear and the finish looking fresh. Inspect the wiring at the connectors and the strain relief near the bar each time you service the vehicle. A narrow spot beam is easiest to aim on level ground, so set it with the vehicle parked on a flat surface before final tightening.
Specifications
| Brand | Rigid Industries |
|---|---|
| Part number | 87431 |
| Light series | RDS SR-Series PRO |
| Size | 40 inch |
| Shape | Curved |
| LED row configuration | Single row |
| Beam pattern | Spot |
| Housing color | White |
| Height | Less than 2 inches |
| Lens | Unbreakable polycarbonate |
| Sold as | Single |
Vehicle fitment
This curved spot bar is universal fit and is not built for one vehicle, so the mounting surface and the bar’s curve decide the fit. Measure the mounting span for a 40 inch bar before drilling.
Installation notes
Check the curve of the 40 inch bar against the mounting surface before drilling. Fuse the feed, and check local rules for auxiliary light bars on public roads before use.
What’s included
One 40 inch white RDS SR-Series PRO curved spot light bar. Check the package contents against your installation before starting.
