Overview

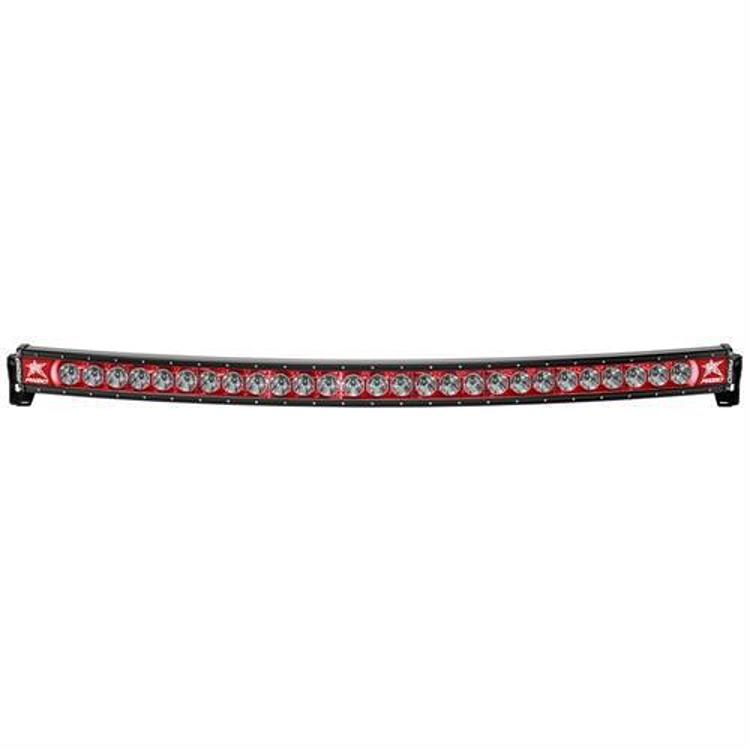

The Rigid Industries Radiance Curve Plus 50 in. light bar with red back-lighting, part 35002, is a 50-inch LED light bar for off-road and driving use. It is universal fit rather than built for a particular make or model, so you choose a mounting position wherever your bumper or roof gives a secure place for it.
The Curve Plus uses the same high-grade aluminum alloy as the E-Series, with a black exposed printed circuit board and Broad Spot optics. Its 4,752 raw lumen figure applies to the 10 size. The Radiance line is made in lengths from 20 to 54 inches. The red back-lighting can run on its own circuit through a dedicated wire.
Key features
- Red back-lighting with a dedicated wire, so the back-lights run without the primary LEDs
- Independently controlled back-lighting available
- Broad Spot optics that combine spot and flood coverage
- Built with E-Series construction for durability
- Over and under voltage protection and reverse polarity protection
- IP68 dust and water ingress rating with a GORE pressure equalizing vent
- Operating range of -40 ºF to +145 ºF
Red back-lighting at night
Back-lighting on a light bar serves a different purpose than the main beam. Red light is often used for marker or accent work and to reduce glare for others. Running the back-lights on a separate wire lets you use them without switching on the primary LEDs, which can be useful at camp or while parked. Keep the wiring routed so that the back-light circuit can be shut off separately from the main beam.
Adding a second circuit means more connections, so keep each run fused and protected from heat and abrasion. Check that the switch you use for each circuit is rated for the current. Over time, look at the lens seal and the bracket bolts, and clean the lens with a soft cloth so the red output is not dulled by grime.
- Fuse each circuit separately
- Use a switch rated for the load
- Clean the lens to keep red output even
Specifications
| Brand | Rigid Industries |
|---|---|
| Part number | 35002 |
| UPC | 849774016455 |
| Size | 50 in. light bar |
| Backlighting | Red |
| Input voltage | 10-15 V DC |
| Lifespan | 50,000+ hours |
| Raw lumens | 4,752 (applies to the 10 size) |
| Operating temperature | -40 ºF to +145 ºF (-40 ºC to +60 ºC) |
| Ingress rating | IP68 |
| Shock and vibration | SAE J575 compliant |
| Lens | Impact resistant polycarbonate |
| Mounting brackets | Black powder coated, included |
Vehicle fitment
This light bar is universal fit, so it is not vehicle-specific. Pick a position on your vehicle that clears the bumper, roof or hood and keeps the wiring short and protected.
Installation notes
Wire the bar through a fuse and a relay or switch. Keep the red back-lighting on its own dedicated wire if you want it to run without the main LEDs. Auxiliary lights are regulated, so check local rules on road use and mounting height before driving with the bar lit.
What’s included
Mounting brackets are included. Check the package contents for the wiring harness before wiring the bar.
Not included: The wiring harness, if it is sold separately as one line states.
