Overview

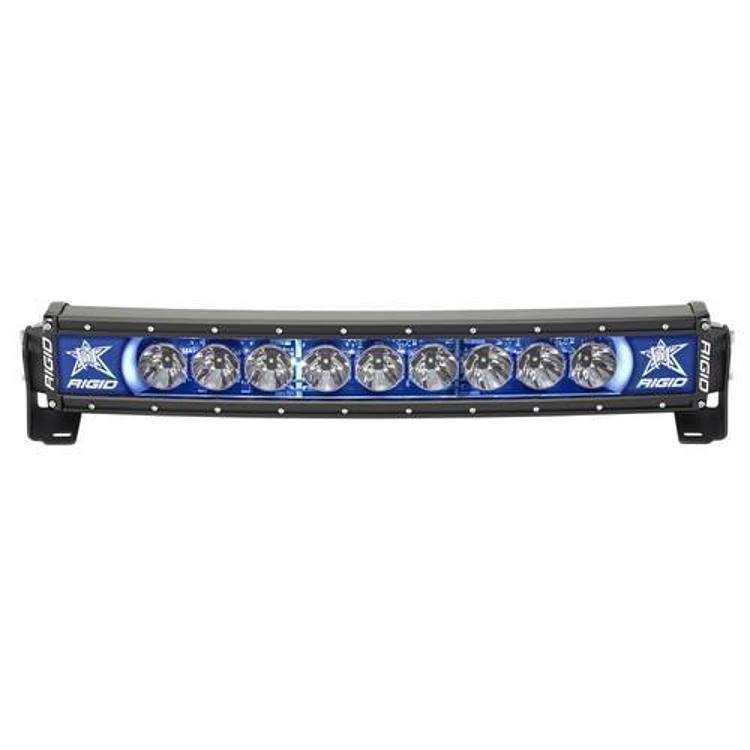

The Rigid Industries Radiance Curve Plus 20 inch light bar in blue, part number 32001, is an LED light bar for off-road and auxiliary lighting. Rigid positions the Radiance Curve Plus as a way to get E-Series build quality at a more approachable level.
Its housing is high-grade aluminum alloy, the same material used on the E-Series bars. Inside, a black exposed printed circuit board sits behind Broad Spot optics that project forward and blend spot and flood beam patterns. Rigid credits recent LED updates with up to 4,752 raw lumens on the 10 size of the line. Back-lighting is offered in white, amber, red, blue and green, and this model is the blue version. The series is available in lengths from 20 to 54 inches.
Key features
- Broad Spot optics blending a spot and flood beam pattern
- Forward-projecting light output from optimized optics
- Up to 4,752 raw lumens on the 10 size
- Blue back-lighting, with white, amber, red and green also offered
- Black exposed printed circuit board
- High-grade aluminum alloy housing shared with the E-Series
- Multi-Trigger Harness with two backlit LED rocker switches, red and blue
Running two independent circuits
Two switches on separate circuits give you options that a single switch cannot. Each switch can run its own circuit, so you can power the bar on one circuit when a partial setup is enough. Label each switch clearly, since red and blue rockers look similar in the dark, and keep the switch panel where a passenger can reach it without taking your eyes off the road.
Separate circuits still share one battery, so the total draw matters. Fuse each circuit at its own feed, and avoid adding more accessories to the same branch without checking the load. Route the harness away from sharp edges and heat, mount the switches on a solid panel, and check the connections after the first few drives.
- Label each rocker switch clearly
- Fuse each circuit at its feed
- Check total load before adding accessories
- Secure the harness away from heat
Specifications
| Brand | Rigid Industries |
|---|---|
| Part number | 32001 |
| UPC | 849774016295 |
| Product line | Radiance Curve Plus |
| Length | 20 inch |
| Back-light color | Blue |
| Bulb type | LED |
| Optics | Broad Spot |
| Housing | High-grade aluminum alloy |
| Circuit board | Black, exposed printed |
| Available lengths | 20 to 54 inches |
| Lumen rating | Up to 4,752 raw lumens (10 size) |
| Fitment | Universal fit |
Vehicle fitment
Rigid marks this bar as universal fit, which means no particular year, make or model is named. The mounting position and the 20 inch length are the two things to measure against your own vehicle.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The two rocker switches run on separate circuits, so each can be used independently. Use a fused relay for the wiring and check local rules before running auxiliary lights on a street-driven vehicle.
What’s included
The Multi-Trigger Harness and its two backlit LED rocker switches, red and blue, come standard with the bar. Check the package contents for mounting hardware before installation.
