Riddler Manufacturing Dana 25/27/30 Cast Iron Cover – RD30

Riddler Manufacturing

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Riddler Manufacturing RD30 cast iron cover for Dana 25, 27 and 30 front axles
  • Ductile iron, CNC machined, raw finish
  • Permatex sealant included
  • No vehicle years listed; check axle type before ordering

Description

Overview

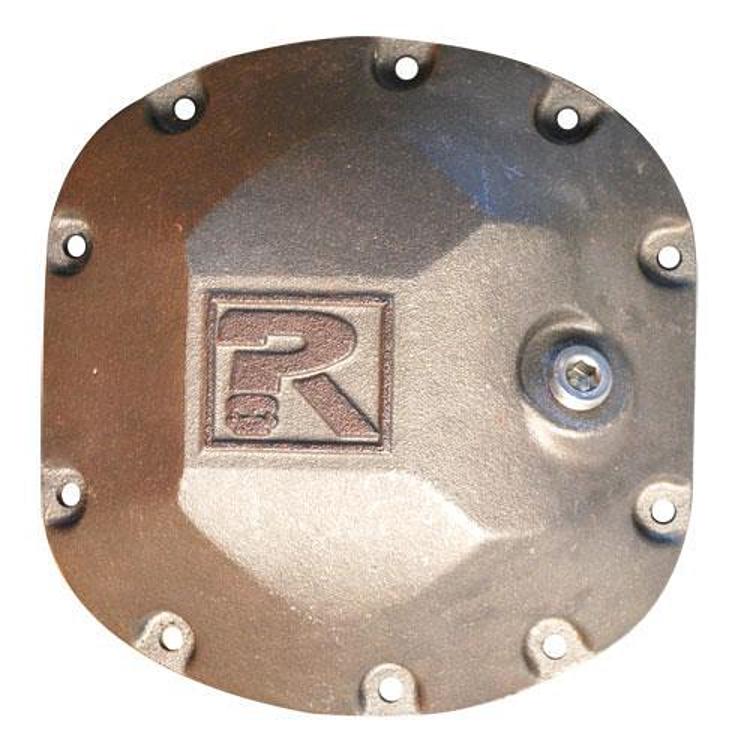

The Riddler Manufacturing RD30 is a cast iron differential cover for Dana 25, Dana 27 and Dana 30 front axles. It is cast from ductile iron, CNC machined and has a raw finish. Confirm your axle position before ordering.

A lip-free transition design is meant to keep the cover from catching on obstacles, and the fill plug is raised. Permatex sealant is included.

Key features

  • Ductile iron body, CNC machined
  • Lip-free, smooth transition design
  • Recessed fasteners
  • Raised fill plug
  • Permatex sealant included
  • Lifetime guarantee stated by the brand

Oil and cover service

A differential cover is a sealing surface as much as a cover, so the gasket face needs to be clean before the new cover goes on. Drain the oil first, then remove the old cover and scrape off old sealant with a plastic tool. Check the housing for nicks, since a small gouge can leak even with fresh sealant.

Refill the axle only after the cover is secure, and check the level once the vehicle is level. A raised fill plug makes checking the level easier when you are under the vehicle, and recessed fasteners reduce the chance of catching on rocks. Keep the drain plug clean and use fresh gear oil.

  • Gasket face cleaned and dry
  • Drain oil before removing the cover
  • Fill to level after the cover is in
  • Inspect the housing for nicks

Specifications

Brand Riddler Manufacturing
Product code RD30 (from title)
UPC 70000378864
Material Ductile iron
Finish Raw
Axle types Dana 25, Dana 27, Dana 30 JK, Dana 30 Reverse, Dana 30 Standard, Dana 30 TJ
Axle location Front or rear axle; confirm your axle position before ordering.
Oil capacity Extra capacity
Included Permatex sealant
Warranty Lifetime guarantee
Fitment Universal Fit

Vehicle fitment

No vehicle years, makes or models are named. The Dana 30 JK and Dana 30 TJ entries describe axle variants, not model years, so this cover is not confirmed for a specific vehicle.

Measure your axle housing and confirm the fit before ordering.

Installation notes

Expect to drain the axle oil before removing the old cover, then refill once the new cover is in place.

What’s included

Permatex sealant is included. Confirm that bolts and a gasket are in the package before starting the install.

SKU: RIDRD30 Category:

Specification

Shipping weight 9.00 lbs
Package dimensions 12.00 × 12.00 × 5.00 in
brands

Questions & Answers

Which axles does the Riddler RD30 cover fit?

The product is for Dana 25, Dana 27 and Dana 30 front axles. The fitment table also lists rear positions and Dana 30 JK and TJ types, but no vehicle years or models are given, so check your axle position first.

Does the RD30 cover come with sealant?

Yes. Permatex sealant is included with the cover. Confirm that bolts and a gasket are in the package before starting, and plan to replace the gasket if one is not supplied.

What is the RD30 cover made of?

It is cast from ductile iron, also called iron, and it is CNC machined with a raw finish. The fill plug is raised and the fasteners are recessed.

How do I clean the mating surface before installing the cover?

Remove the old sealant with a plastic scraper and a solvent that leaves no residue, then wipe the surface dry. Avoid gouging the cast iron, which can cause a leak. Apply sealant evenly so the cover seats without pinching it.
